Professional sharpy 5R beam 200 moving head stage light Unique feature:Professional sharpy 5R beam 200 moving head stage light YS-311
1)16/20CH
2)0-3.8degree Beam angle
3)LCD touch display screen
4)super effect
Technical ParameterVoltage: AC90-240V, 50-60Hz
Lamp: 200W Philips MSD Platinum 5R or YODN 5R
Color Temperature: 8000k
Life: 2000 hours
Control Channel: 16/20 DMX channels
Carton size: 430 × 430 × 520mm
Weight: 19.5kg
SpecificationCommunication Protocol: USITT DMX-512
Horizontal scan: 540 ° (16bit precision scanning) electronic correction
Vertical scan: 270 ° (16bit precision scanning) electronic correction
Remote control foam, controllable units set address code
Display: LCD
Pattern positioning: 8 or 16bit
Prism positioning: 8 or 16bit
Movement and control: Tracking and vector
Data Input / Output: 3-pin and 5-pin XLR
Color Wheel: A color wheel, 14 colors plus white tablets with water effects
Gobo: 17 pictorial effect
Effect wheel: A rotatable eight prism effect moving, spray function
0-100% mechanical dimmer,
Support mechanical strobe and variable strobe effect,
Support strobe macro function
Lens group optical system, the electric focusing, beam angle 0-4 °
Overheat protection
Magnetic ballasts, AC / DC Switching Power Supply
Effect pictures

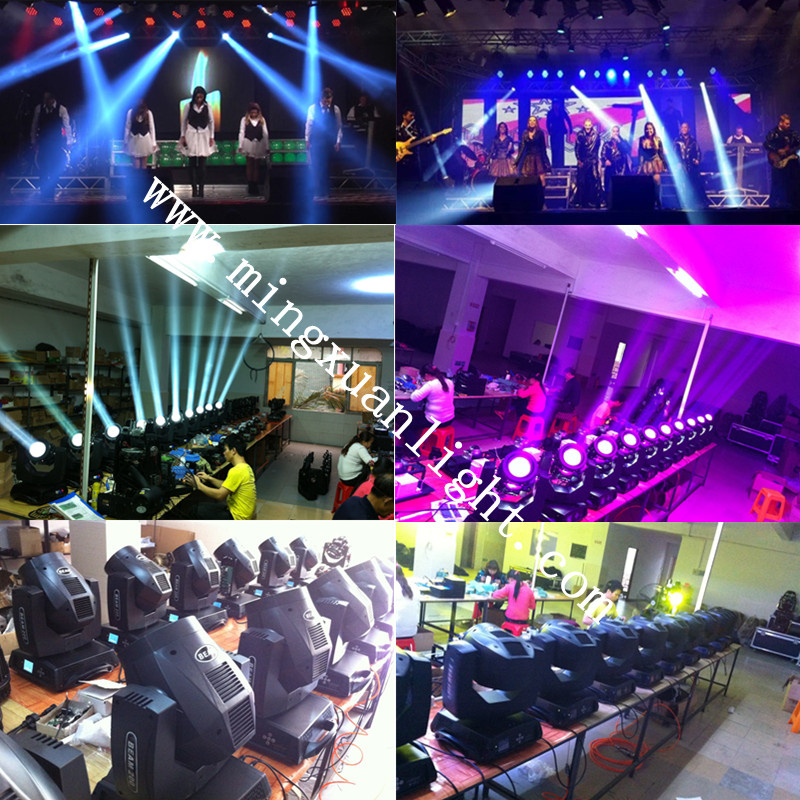

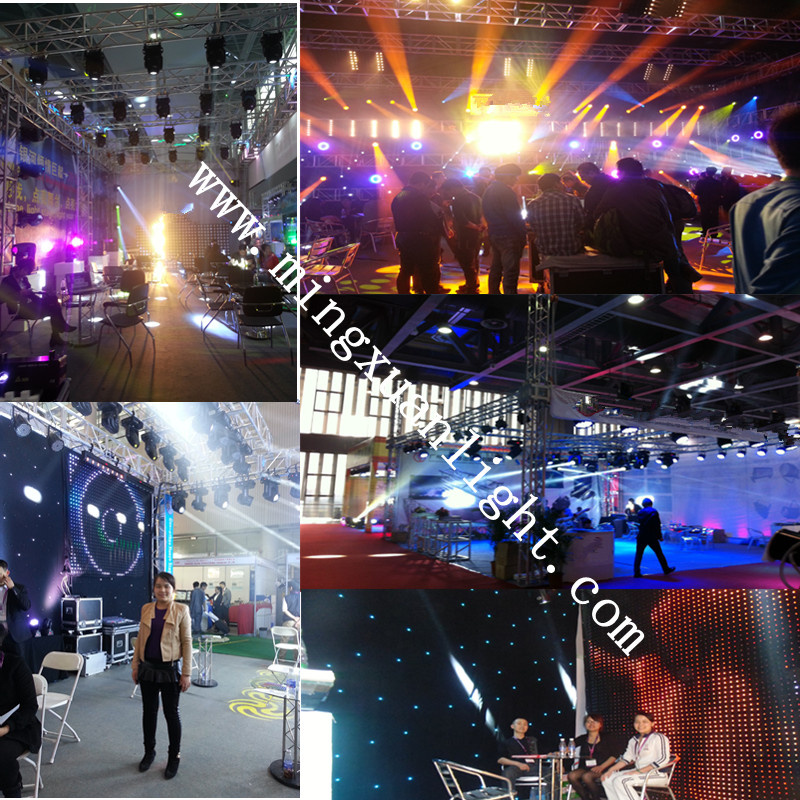

Fair picture
Trade TermMOQ: 1 PCS
Price Term: EXW, FOB
Lead Time: Sample order: 1-2 working days
Big order: 3-15 working days(depends on the order quantity)
OEM: Acceptable
Shipping method: By express(FedEx, DHL, UPS), by sea, by air
Warranty: 1 year
WHY CHOOSE US?Mingxuan Stage Lighting (Guangzhou) Co., Ltd is a high-tech manufacturer which is specialized in producing and exporting moving head lights and laser lights. We have our own 1, 000 M2 standard production workshop, R and D center, strict quality control system and professional sales and marketing group. With technological innovation and excellent performance, Mingxuan moving head lights have won the high praise from customers who are from all over the world, especially 200W, 230W. We may not be the No. 1, but we always devote ourselves to providing a better option to customers. Let us stay together and make the win-win.
Customer ServiceDear customer, every product passes the quality inspection before shipment. If you find any problems with the product, Pls kindly to provide us the photos or video. That will help us figure out the problem as soon as possible. We always devote ourselves to be a better choice to customers. Your support is highly appreciated
Notice:1. Our products is one year warranty period. Parts and technology will be offered for free.
2. Delivery time is 5-7 days after payment, the tracking number will be told when shipping.
Choose us ,choose profession!
You are warmly welcome to contact us.
Name
|
Beam 200
|
Voltage
|
AC90V-240V, 50Hz-60Hz
|
Power consumption
|
280W
|
Lamp
|
Philips
|
Lamp life
|
2000 hours
|
Channel
|
16 CH/20 CH
|
Lumen output
|
150000LM
|
Control Signal
|
DMX 512, Master/Salve, Sound activity and work auto
|
Lens
|
3 layer glass Lenz
|
Color temperature
|
8000K
|
Pan angle
|
540 degree (16 bit)
|
Tilt angle
|
280 degree (16 bit)
|
Zoom
|
With zoom
|
Focus
|
Electronic focus
|
Fan
|
Mingxuan brand
|
Display pan
|
LED touch screen
|
Gobo
|
17 gobos + white, rainbow effect, shack function
|
Color
|
14 color + white, rainbow effect
|
Dimmer
|
1-100% liner dimmer
|
Strobe
|
1-13 times/SEC
|
Prism
|
8 facet prism
|
Head movement
|
Auto reposition
|
Net Weight
|
17kg
|
Size
|
410*340*480mm
|
Package
|
Carton package/ flight case
|
Guangzhou MingXuan Stage Light Equipment Factory is specialized in LED Stage Lightings, our factory located in Guangzhou, Guangdong province, welcome to contact us for details!
We stick to the principle of "quality first, service first, continuous improvement and innovation to meet the customers" for the management and "zero defect, zero complaints" as the quality objective. To perfect our service, we provide the products with the good quality at the reasonable price.
Our factory has always insisted on relying quality to seek survival, benefit to seek development. Use fine after-sale service to meet the needs of consumers. Honesty and credit. Products are sold well all over our country. Warmly welcome all fields of friends to visit our factory and negotiate trade.
We have a group of professional and experience working team, and we have engaged in producing stage light for many years, with competitive price and excellent quality, our products are well received both at home and abroad.
We Are Specialized in The Production Of Stage Lighting. e. g. MOVING HEAD LIGHTS, LED MOVING HEAD LIGHTS, MOVING HEAD BEAM, LED WALL WASHER, LED EFFECT LIGHTIS, LED PAR, etc. Our company owns modernized factory and office. And we strictly sticks to ISO-9001 QMS Manufacturing standard to make sure Zero defect for products. In order to ensure products Function operate properly in different regions and climatic conditions; Each product from Design is passed the QC. Aging tests and the CE confirmation.
Company Culture: Professional, To Create A Wonderful Future.
Service Concept: Tireless Efforts, Forge Ahead And Innovation
We sincerely welcome new and old customers at home and abroad. Let us work together to develop the international market.
Welcome to order, we will serve you.
Our Company website: www.mingxuanlight.com
