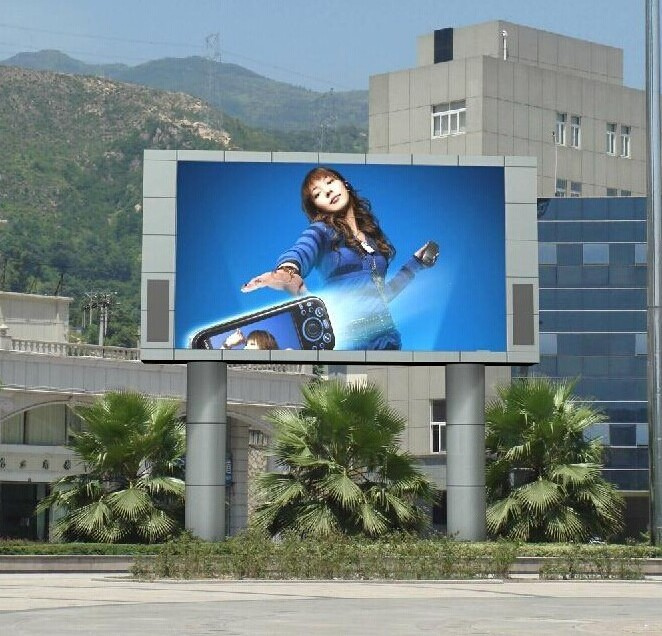

Hot sale P10 Full Color Outdoor LED Display
1) Pixel pitch(mm): 10mm
2) Module size(mm): 160*160
3) Module resolution(DOT *DOT) 16*16
4) Display model: 1024* 768
5) Refresh rate: >600Hz
6) Brightness: ≥ 7000 NIT
7) Frame frequency: ≥60Hz
8) Max. power consumption: 750W/panel
9) Ave. power consumption: 300W/panel
10) Visual distance: 10-30m
11) Color temperature: 6500-9500K
12) Working voltage: AC220V±10% 47HZ~60hz
13) Working Humidity: 5%RH~85%RH
14) Operation temperature: -20 to +40ºC
Features:
1. Reasonable cabinet structure design and install fast for fixed project.
2. The cabinet is made with locks on the left and right sides and location hole/pole in the upper and lower sides, which make connections between cabinets to be very fast.
3. Independent rear cover and lock design that isn't only waterproof and dustproof but also makeIts debugging and maintenance to be fast.
4. It is available in a variety of outdoor occasions.
5. Our cabinet is used the high precision processing aluminum bar section. It not only ensures the cabinet to be light and beautiful but also ensure higher processing precision. That greatly reduces the gap of LED screen connection .It makes sure the display image without shadows, dark and bright lines and ensure the clear and smooth display picture and still ensure the picture of flatness and smooth even in 140 degree angle.
Applications:
It is Widely use for shopping malls, entertainment venues, schools, government agencies, airports, hotels, stations, stadium and so on.
