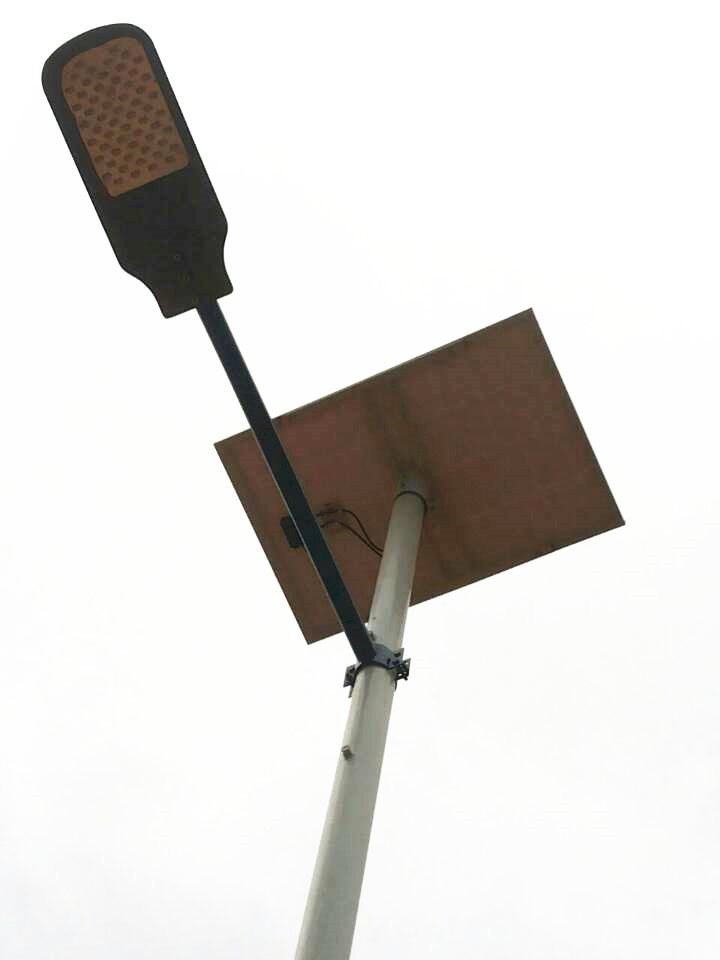

60W LED Integrated Solar Street Light

60W LED Integrated Solar Street Light


1. Pole and solar panel bracket

Height: 8m.
Hot deep galvanized plastic electrostatic spraying,
Working life≥ 25 years

2. LED lamp
Power: 60W
Aluminum alloy die-casting molding with toughened glass
LED chip: American BridgeLux
Luminous flux: 6000lm
Size: 573*245*70mm
Voltage: DC100-240V
Color temperature: 3000-6500K
Beam angle: 60*120 degree
Ra>70
IP Rating: IP65
Working life>50000 hours

3. Solar Panel

Power: 180W
Working temperature: -40º C--85º C
Power tolerance: ± 5%
Working life ≥ 20 years

4. Battery

2*120AH
Gel-battery/lead acid battery
Working life≥ 3 years

5. Battery Box

2*120AH battery box/engineering plastics,
Working life≥ 20 years

6. Controller

10A/24V working life≥ 3 years
Protection:
· Overheating · Over discharging · Over charging
· Load overload · Load short circuit
· PV reverse polarity · Battery reverse polarity

Features:

1. High Power, high lumen, high quality
2. Save 80% more energy compared with traditional lighting fixtures
3. Easy to install and use, secure and reliable
4. No UV or RF interference, No mercury or lead
5. Light body is made of good quality aluminum alloy with painting or anodic treatment on surface, exiguity and unique design, excellent heat dissipation
6. High quality, high efficiency, high CRI & luminous flux, long life span>50000hrs
7. High brightness, low consumption, green for environment

We can provide LED solar street lights from 10W to 120W.
