High Quality LED Solar Street Light (30W-120W)

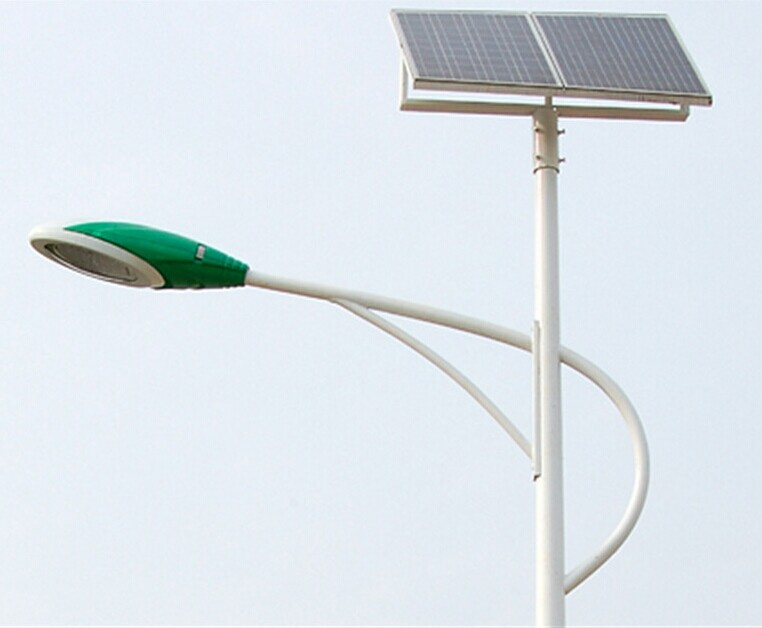

40W Led solar street light
1.Pole and solar panel bracket
Height:6m.
Diameter:65/140mm, 3mm thickness,
Flange:280*280*14mm
Hot deep galvanized plastic electrostatic spraying,
Working life≥25 years
2.LED Lamp
Lighting source:40W
Size:580*245*70mm
Weigh:5.6kg
Aluminum alloy die-casting molding with toughened glass
Working life>50000 hours.
3.Solar Panel
Maximum power:120W
Polysilicon solar panel
Working temperature:-40ºC--85ºC
Power tolerance:±5%
Working life ≥ 20 years
4.Battery
150AH
Gel-battery
Working life≥3 years
5.Battery Box
150AH battery box/engineering plastics,
Working life≥20 years
6.Controller
10A/12V working life≥3 years
Protection:
·Overheating ·Over discharging ·Over charging
·Load overload ·Load short circuit
·PV reverse polarity ·Battery reverse polarity
We can produce LED street lights from 30W to 120W.
Our project in Cameroon
Item |
RH-1 |
RH-2 |
RH-3 |
RH-4 |
RH-5 |
RH-6 |
RH-7 |
Pole height |
6m |
6m |
7m |
8m |
9m |
10m |
12m |
LED lamp |
30W |
40W |
50W |
60W |
70W |
90W |
120W |
Solar panel |
90W |
120W |
150W |
180W |
210W |
2*140W |
2*180W |
Battery |
120AH |
150AH |
200AH |
2*120AH |
2*120AH |
2*180AH |
2*220AH |
Battery box |
120AH |
150AH |
200AH |
2*120AH |
2*120AH |
2*180AH |
2*220AH |
Controller |
10A/12V |
10A/12V |
10A/12V |
10A/24V |
10A/24V |
10A/24V |
10A/24V |
