Hot Sale Outdoor SMD Full Color LED Display Video Wall (P6)
1. Brightness: ≥6500cd/m2
2. Average power consumption: ≤450 W/m2
3. Manufacturer: over 10 years
4. Quick response: replying inquiry within 12hrs
5. On time delivery + patient after-sales service
6. Quality guarantee: CE, RoHS, FCC, IP65, ISO9001 + 100% testing before shippi
Hot Sale Outdoor SMD Full Color LED Display Video Wall (P6)
Product Description
1) P6 SMD3535 led module is made by first-class LED Lamp, supporting displaying text, graphic, animation and video with synchronous or asynchronous mode.
2) High brightness and contrast, good flatness and viewing angle, low energy consumption
3) Easy installation & application, freely meet customers' personalized requirements.
4) Long-term brightness capacity throughout product lifetime
5) Aging time: we promise all product have 72hours aging time before shippment.
6) Temperature surveillance and humidity display can be extended.
7) General configuration: 200W power supply, LINSN receiver & sender, iron cabinet and video processor
8) Product performance: 100,000 hours efficient life-span & 10,000 hours MTBF.
9) Application location: building facade, roadside column, bank, school, shopping mall, etc.
P5 outdoor SMD full color led display is popular for outdoor led screen.
We have series of SMD led module for outdoor using.
P5 SMD2727 Brightness: ≥7500cd/m2
P6 SMD3535 Brightness: ≥6000cd/m2
P8 SMD3535 Brightness: ≥6800cd/m2
P10 SMD3535 4S Brightness: ≥5500cd/m2
P10 SMD3535 2S Brightness: ≥8000cd/m2
Free Back Service Path, Excellent Display Effect
Adopt dual service of black kingkong series among core techniques, free back service path for all kinds of installation surroundings.
Broadcast level color scale, color temperature and brightness adjustable intelligentizedly, smooth color, high color ratio, nature pictures.
IP65, Fast Installation and Maintenance
IP65 for modules, meets outdoor naked installtion requirements.
Design based on module, which saves installation and maintenance cost, fast speed, maintenance with power on.
Firm, Flat and Backup Solution
Dark black surface,firm and flat, anti-UV module parts, which gurantees screen in firm shape.
Power supplier and control system, backup solution is available to gurantee.
Camera optional, Lan cable, 3G, WIFI, Multi-control, ethernet for data trasmittance options.
Product Specification:
Pixel Pitch | 6mm |
| Module Size(W×H) | 192mm*192mm |
| Module Resolution(W×H) | 32*32dots |
| Pixel Density | 27,777 (dots/ m2) |
| Lamp Origin | Epistar |
| Pixel Configuration | 1R1G1B |
| Led Specification | SMD3535 |
| Gray Level/ Color | 65536 lever |
| Brightness | ≥6000 cd/m2 |
| Best view angle | Horizon: 120° Vertical : 90° |
| Control method | asynchronous |
| Scanning method | 1/8 constant voltage |
| Power consumption | Average: 450w/m2 Max : 750w/m2 |
| Best viewing distance | 5~100m |
| Lifespan | ≥100,000 H |
| MTBF | ≥10,000H |
| Frame frequency | ≥60HZ |
| Refresh frequency | ≥400HZ |
| System Working Temperature | -20°C ~ 50°C |
| System Working Humidity | 10 ~ 90%RH |
| Power | 5V/60A |
| Module weight | 400g/pcs |
| Brightness control lever | 0 ~ 100 lever |
| Maintenance way | Rear access |
| Environment temperature | -40°C ~ +85°C |
| Suitable voltage | DC5V |
| Spending card | kilomega network card |
| Video signal | PAL/NTSC |
| Working voltage | 220V±10%
|
Outdoor Waterproof Cabinet Detail Show:

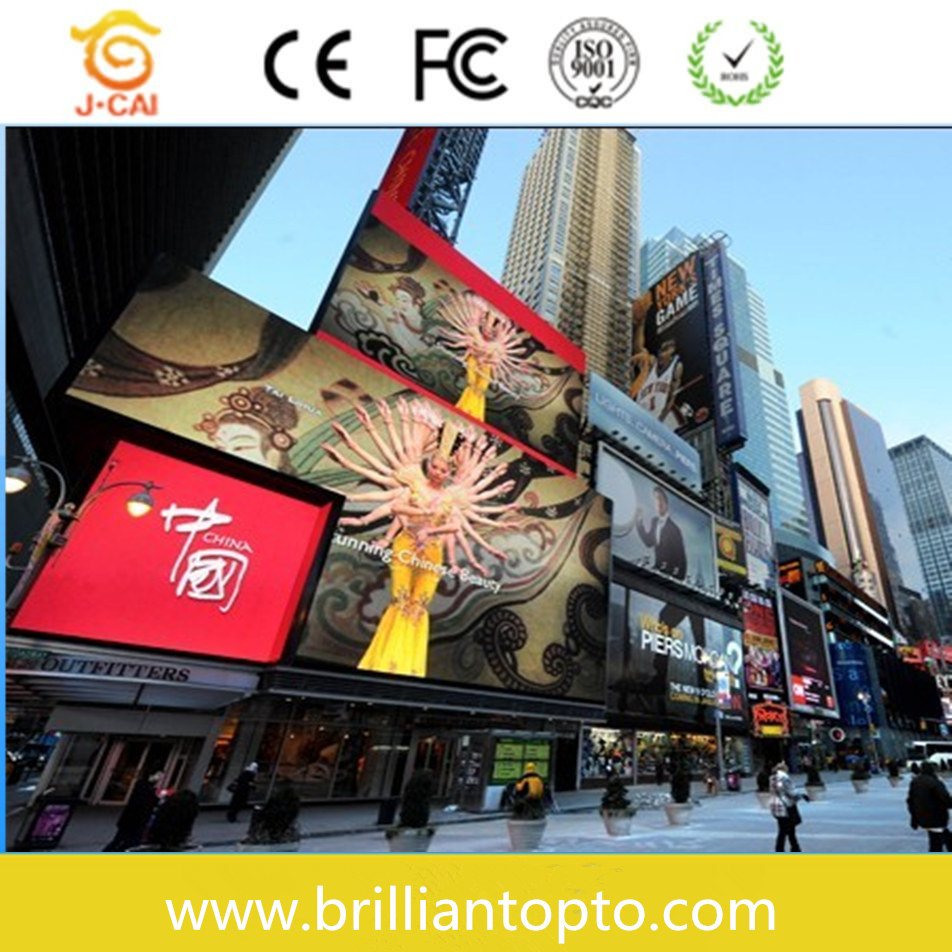

Application Case:
Hot Sale Outdoor SMD Full Color LED Display Video Wall (P6)
Widely used for shopping malls, entertainment venues, schools, government agencies, trade fair, fair, aiming at the exhibition, press conference, meeting rooms, cinemas, airports, hotels, internal, station waiting area, indoor stadium, and a variety of public facilities and etc.
Trade Terms
1. Package: Anti-shaking wooden package, Air flight case or Carton package
2. Payment: T/T, 30% deposits before production, 70% balance to be paid before delivery
3. Shipping freight are quoted under your requests
4. Shipping port: Xiamen Mainland China
5. Warranty time: 2 years
6. Delivery time: 3-12 working days
7.Aftersale service:thechnical support and remote control is avaiable.Any question or complaint about our product will get response within 1 day.
Main Products We Provide
| Indoor SMD & Dot Matrix Full Color Series |
| P1.667 | 200*300MM | 120*180 PIXEL | 1R1G1B |
| P1.923 | 200*300MM | 104*156 PIXEL | 1R1G1B |
| P2.0 | 128*128MM | 64*64 PIXEL | 1R1G1B |
| P2.5 | 160*160MM | 64*64 PIXEL | 1R1G1B |
| P3.0 | 192*192MM | 64*64 PIXEL | 1R1G1B |
| 192*96MM | 64*32 PIXEL | 1R1G1B |
| P4.0 | 256*128MM | 64*32 PIXEL | 1R1G1B |
| P5.0 | 320*160MM | 64*32 PIXEL | 1R1G1B |
| P6.0 | 192*192MM | 32*32 PIXEL | 1R1G1B |
| 192*96MM | 32*16 PIXEL | 1R1G1B |
| P7.62 | 244*244MM | 32*32 PIXEL | 1R1G1B |
| 244*122MM | 32*16 PIXEL | 1R1G1B |
| P10 | 320*160MM | 32*16 PIXEL | 1R1G1B |
|
| Outdoor SMD & DIP Full Color Series |
| P5.0 | 160*160MM | 32*32 PIXEL | 1R1G1B |
| P6.0 | 192*192MM | 32*32 PIXEL | 1R1G1B |
| P8.0 | 256*128MM | 32*16 PIXEL | 1R1G1B |
| P10 | 320*160MM | 32*16 PIXEL | 1R1G1B |
| 160*160MM | 16*16 PIXEL | 1R1G1B |
| P12.5 | 400*200MM | 32*16 PIXEL | 1R1G1B |
| P13.33 | 320*160MM | 24*12 PIXEL | 1R1G1B |
| P16 | 256*256MM | 16*16 PIXEL | 1R1G1B |
| P20 | 320*160MM | 16*8 PIXEL | 1R1G1B |
| P25 | 400*200MM | 16*8 PIXEL | 1R1G1B |
FYI: we would like to know more details before offering you the best quotation.
1. What is screen size and what cabinet you prefer.
2. What is the best viewing distance with your project.
3. For fixed or rental installation.
4. When do you need to get goods and is it urgent or not.
5. Any special requests such as video processor, hanging bar, flight case for package.
If you need more info or any problem about led display, contact with me.
