Feature
1)High definition and high brightness; Long durability and high reliability
3) Advance video control system and Super input system
4) Audio and video interface of the system can offer vivid, complete and high quality LED display to TV broadcasting signal
5) Fit for various computer net
6) Standard connection socket
7) Easy installation, Low maintenance cost
8) Software for remote control of communication and scheduling
9) good heat emission capability
10) Customized design available
11) certification: CE and RoHS.
12) Widely used in stage, concert, stadium, parties, bank, restaurant, station, shopping center, government, schools, and enterprise
|
Technical Prameters |
|
PROJECT |

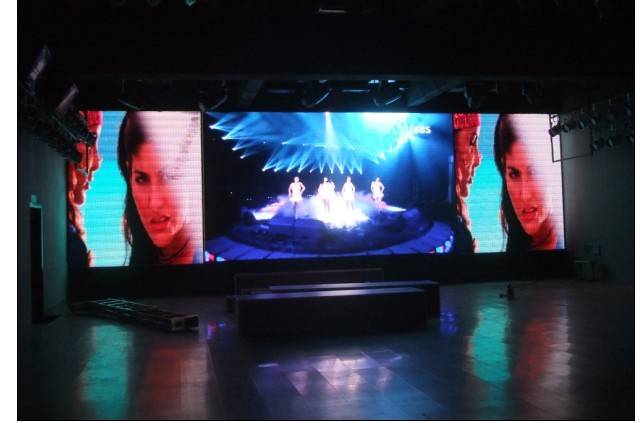

P6 indoor color LED video display |
|
Pixel pitch |
6mm |
|
Pixel density |
27777 Pixels/sqm |
|
Module size(W*H) |
192 W(mm) |
192 H(mm) |
|
Module pixels(W*H) |
32 Pixels(W) |
32 Pixels(H) |
|
Pixel configuration |
1Red 1Green 1Blue |
|
Drive mode |
constant current driving 1/8 scan |
|
LED lamp type |
SMD3528 |
|
Cabinet size(W*H*D) |
576 W(mm) |
576H(mm) |
|
Cabinet resolution |
160 Pixels(W) |
128 Pixels(H) |
|
Color scale |
65,536 degree |
|
View angle(H/V) |
140/120 degree |
|
Brightness (White balance) |
≥2500cd/sqm. |
|
Power consumption(one cabinet) |
Max:1000W/sqm. Average:350W/sqm. |
|
Operating Voltage |
AC100V±10% or 220V ±10%; 50---60HZ |
|
Net weight |
39 Kg/M 2 for Iron cabinet |
|
Operating temperature |
-20°C----+50°C (Customized power supply:-45°C---+60°C) |
|
Operating humidity |
10%_95%RH |
|
Life time |
≥100,000hours |
|
MTBF |
5,000 hours |
|
Whole Display Flatness |
≤0.3mm Juncture |
|
Frame frequency |
>60 Hz/s |
|
Refresh rate |
≥1200Hz /s |
|
Control distance |
100m (without repeater), single mode fiber:20km, multi mode fiber: 500m |
|
Power |
110V/220V±15% 50--60Hz |
|
LED control system |
LINSN,Dbstar,Nova-star,ZDEC,Colorlight is selectable |
|
Operating system |
Windows 2000 / Windows Xp / Windows 7 |
|
Protections for outdoor display |
IP31 |
|
Maintenance way |
Rear Access |
|
Accepting signal with video processor |
PAL/NTSC/SECAM,S-Video;VGA;RGB;Composite Video;SDI |
