Product Description
Fn Overview:

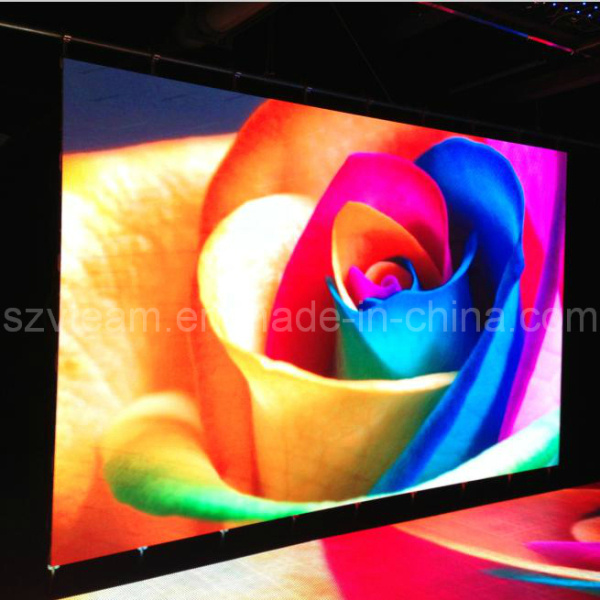

Fn is a high quality product with high definition and soft image. It takes the technology of all die casting aluminum, which is secure and nice in appearance. It's light and each module connected by the special connecting constitution to achieve the fast assembly. Fn is suitably applied in vocal concert, bars, nightclubs, DISCO and supermarket for displaying and advertising use.
Main Features:
1. Die-casting aluminum, secure and nice in constitution.
2. No fans, mute when operation.
3. Dustproof, IP43.
4. High refresh rate and high gray depth.
5. Completely black LED with high contrast.
6. Standard cabinet size is 500mm x 500mm.
7. Large viewing angle, the panel viewing angle is up to 140, the vertical angle could reach 140, the image won't be out of shape and color cast between the rang.
8 Exactly connected and easy to install and dismount.
ITEM
|
Fn2.9 |
Fn3.9 |
Fn4.8 |
Fn5.2 |
Fn6.25 |
Pixel Pitch
|
2.9mm |
3.9mm |
4.8mm |
5.2mm |
6.25mm |
LED Type
|
SMD1514 |
SMD2121 |
SMD2724 |
SMD3528 |
SMD3528 |
Pixel Matrix/pcs
|
172*172 |
128*128 |
112*112 |
96*96 |
80*80 |
Pixel density/sqm
|
118336 |
65536 |
50176 |
36884 |
25600 |
Viewing Distance
|
≥2m |
≥3m |
≥4m |
≥5m |
≥6m |
Driving Mode
|
1/16 scan |
1/16 scan |
1/16 scan |
1/16 scan |
1/10 scan |
Brightness
|
800 nit |
900 nit |
900 nit |
900 nit |
5500 nit |
Protection Level
|
IP43 |
IP65 |
Application
|
Indoor |
outdoor |
Max power consumption
|
250W/panel(white balance) |
|
Ave power consumption
|
125W/panel( normal display) |
|
Weight
|
7kg/panel |
Panel Size
|
500mm x 500mm x 72mm |
LED Configuration
|
RGB 3in 1,Black |
LED Lamp/Chip
|
Silar or Epistar |
Viewing angle
|
140°(H) X 120°(V) |
Gray Scale
|
≥14BIT |
Refresh rate
|
≥1920Hz |
Color temperature
|
8000K ± 500(Optional) |
Colors Space
|
687 billion |
Input Signal
|
DVI,VGA,HD-SDI,S-video,Composite,YUV,etc |
Input Voltage
|
AC 110V/220V ±10%, 50/60Hz |
Power Supply
|
Meanwell or G-energy with UL certificate |
Application
|
Indoor,rental&fixed |
Display Media
|
Video,graphic,animation,signage,cartoon,text,etc |
Control System
|
Nova,Ydea(showbox),Linsn,PC based dynamic capture & mapping. |
System Operating Platform
|
WINDOW98/2000/XP/7/8 |
