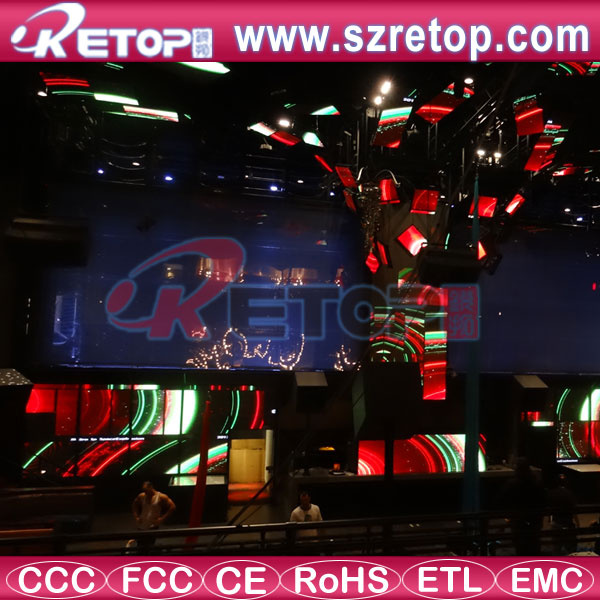

1. Attached pictures show our PH 4mm indoor led display for concerts;
2. The sizes for our PH 4mm indoor led display for concerts can be PH 4mm, PH 5mm, PH 6mm, PH 7.62mm, PH 8mm, PH 10mm and PH 12.5mm;
3. The brightness of our PH 4mm indoor led display for concerts will be over 1000 cd per sqm;
4. The refresh rate of our PH 4mm led display for concerts will be over 1200 Hz;
5. The applications for our PH 4mm led display can also be conferences, indoor advertising, etc.
|
Resolution |
4 mm |
|
LAMP |
LED Type |
SMD 3-in-1 |
|
Wave length |
R: 620 nm |
|
G: 524 nm |
|
B: 468 nm |
|
BOARD |
Pixel configuration |
1R1G1B |
|
LED driving method |
1/16 dynamic scan |
|
Pixels |
64 |
* |
32 |
(W*H) |
|
Pixel pitch |
4 |
mm |
|
Led board size |
256 |
mm |
* |
128 |
mm |
* |
12 |
mm |
(W*H*D) |
|
MODULE |
Led boards |
3 |
* |
6 |
(W*H) |
|
Pixels |
192 |
* |
192 |
(W*H) |
|
Module area |
0.59 |
m 2 |
|
Module size |
768 |
mm |
* |
768 |
mm |
* |
162 |
mm |
(W*H*D) |
|
Net weight |
18 |
kg |
(aluminum) |
/ |
23 |
kg |
(ferrum) |
|
Power |
AC220/110 ± 10%, 47~63Hz |
|
Water proof |
N/A |
|
Serviceability |
Rear service |
|
DISPLAY |
Max. power consumption |
R |
≤ |
1080 |
W/m 2 |
N |
≤ |
630 |
W/m 2 |
C |
≤ |
580 |
W/m 2 |
|
Avg. power consumption |
≤ |
378 |
W/m 2 |
≤ |
221 |
W/m 2 |
≤ |
203 |
W/m 2 |
|
Max. current (208V 60Hz) |
≤ |
5.77 |
A/m 2 |
≤ |
3.37 |
A/m 2 |
≤ |
3.10 |
A/m 2 |
|
Hor. viewing angle(min 50% brightness) |
120° |
|
Vert. viewing angle(min 50% brightness) |
120° |
|
Brightness |
≥1000 cd/m 2 |
|
Pixel density |
62500 |
/m 2 |
|
Power factor |
>0.9 |
|
Contrast ratio |
3000:1 |
|
Operating temperature |
-20ºC to +50ºC |
|
Operating humidity |
20% to 90% |
|
Lifetime (50% brightness) |
100,000 hours |
|
Processing |
16bit |
|
Colors |
687 billion |
|
Refresh rate |
≥1200 Hz |
|
Frame rate |
60 fps |
|
Brightness level |
Manual 100 levels,automatically 16 levels. |
