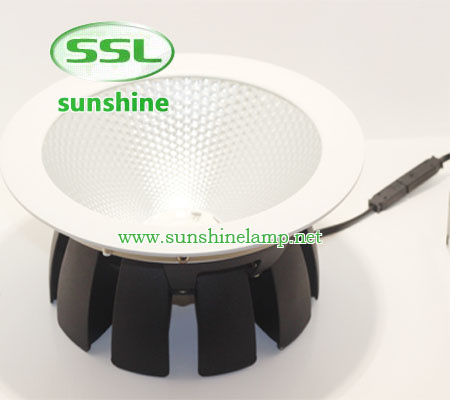

High Efficiency 30W Edison LED Round Downlight, Indoor Recessed LED Down Light Lamp
Description:
- CNC construction and 1060 Aero aluminum alloy housing
- Germany FIN-design and thermal efficiency 60% improved
- Cree/Edison/Epistar LED
- AC85~265V input options
- 30W power consumption
- Warm white Pure white Cool white
- Luminous Efficiency 80-110Lm/W
- Diffused lighting
- Up to 70% energy savings
- 3 Year Warranty
- CE RoHS TUV UL compliant
Specifications:
Electrical / Optical Characteristics (Ta=25ºC±3ºC)
Tech Date | |
Model | SSL-DLCOB-30W-4036 |
LED Qty | 1pcs |
LED Type | Cree Edison Epistar |
LED Power | 30W |
LED Color | Warm white, Pure white, Cool white |
Input Voltage | AC85~265V |
Frequency Range | 50Hz - 60Hz |
Power Factor | >98 |
Power Efficiency | >85% |
Luminous Efficiency | 80~110LM/W |
Dimension | Φ225 x H80mm |
Color Temperature | WW | 2700-3500K |
PW | 4000-5500K |
CW | 6000-7000K |
CRI | WW | Ra>73 |
PW / CW | Ra>78 |
Lamp Efficiency | >85% |
Lumens Output | WW | 2400lm |
PW | 2430lm |
CW | 2450lm |
Beam Angle | Diffused lighting |
(Cut-out)Hole size | Φ198mm |
Radiator Number | 0.4mm x 50 pcs |
Radiator Area | 3290cm² |
Installation | Embedded |
Housing Color | White |
Working Temperature | -40ºC ~ +55ºC |
Storage Temperature | -25ºC ~ +65ºC(25ºCbest) |
Life span | 35000~50000hrs |
Certification | CE, RoHS, FCC |
package | 45*21.5*41cm (10pcs/box) |

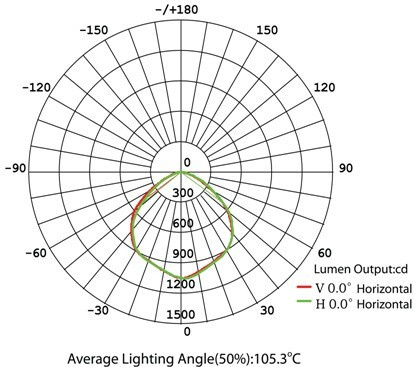

Curve of light distribution (Ta=25ºC±3ºC)
Installation Instruction:
Installation Instruction:

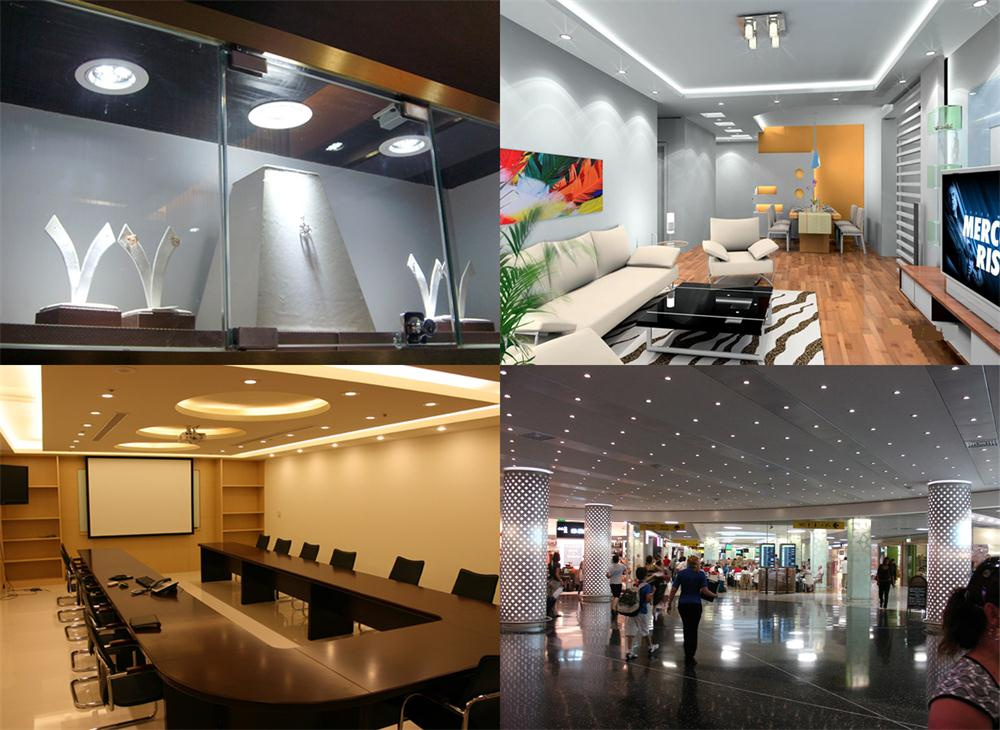

pplications:
Widely used in the hotel, meeting room, offices, hospital, schools, factories, commercial lighting, shopping malls, supermarket.
Sunshine Light is an established high-tech firm specialized in developing OEM and ODM LED lighting products manufacturer and exporter. We are quality manufacturer always produce high technology & high quality products years of our experience bringing us the advantages of LED lights got improved remarkably, such as more efficiency, environmentlally safe, longer life span, less power consumption. We can provide customer R&D in new product design, production, quality control with high standard products and services. We're especially well-placed in the field of Power LED thermal management and related lighting solutions.
