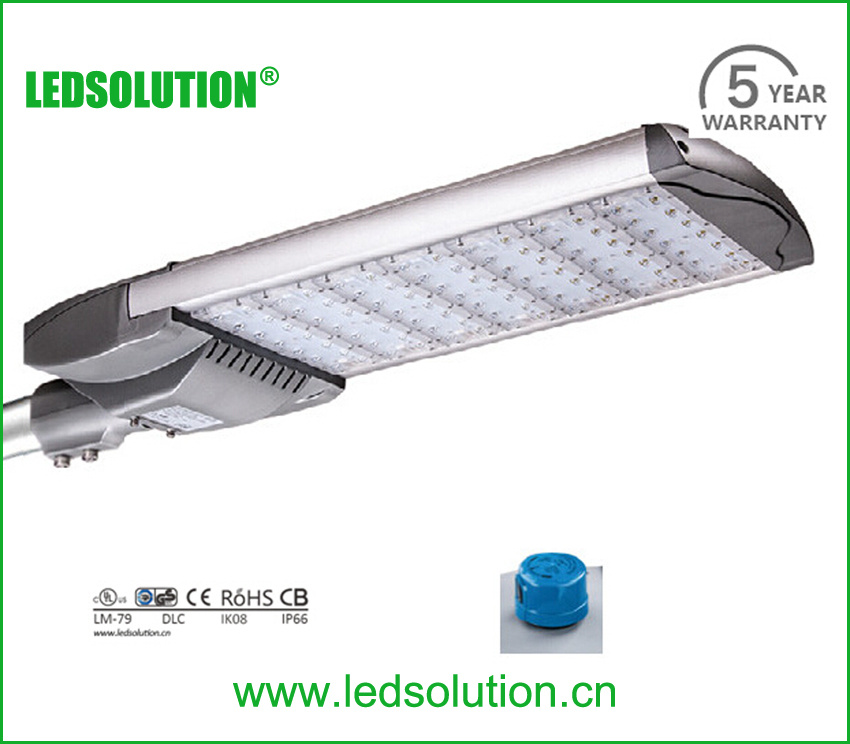

High Power led 230W Philips Chips outdoor LED Street Lights
Specifications
Electrical Specifications |
Model No. | LS-SL230P |
Nominal Wattage | 230W |
Nominal Voltage | AC100-240V/277V 50/60HZ DC12V/24V |
Maximum Current | AC0.36A-120V,0.18A-240V,0.16A-277V DC3.24A-12V,1.62A-24V |
Optimal Operating Temperature | -40ºC to +50ºC |
Power Factor(PF) | >0.9 |
Driver Efficiency | >90% |
Photometric Specifications |
Lumen Output | 21850 lm (Lumen tolerance +/- 5%) |
Photometric Type | 1S, 2M, 3M, 5S |
CRI | Ra >= 70 (+/- 5) |
CCT | 3000-4100K, 5000-5650, 5650-6300K |
Mechanical Specifications |
Ratings | IP66, IK08 |
Lumen Maintenance | > 67000 hours -L70, @25 ºC (77 ºF) |
Heat Radiator | Anodized Aluminum |
Lens | PC |
Fixture Dimension | 869 x316 x136 mm 34.2 x12.4 x5.4 inches |
Fixture Weight | 12.6 kg /27.8 lbs |
Product Benefits
PHILIPS LUMILEDS LED LUMINOUS SOURCE
The LEDSOLUTION P-Series LED Street Lights are utilizing PHILIPS LUXEON REBEL ES LED luminous source, providing excellent luminous efficiency, long-lasting stability and splendid sight.
Each LUXEON REBEL ES owns eletrostatic protection component, maximally avoid the damage of electrostatic.
MEAN WELL LED DRIVER
Full Range of LEDSOLUTION P-Series LED Street Lights are Utilizing MEANWELL HLG Series high-end driver, optimal operation stability, lifespan and performance.
LEDSOLUTION 3 GENERATION LED MODULE
Exquisite design with powerful thermal output, with more reliable waterproof performance.
XTREME LUMINAIRE DESIGN
Equipped with exceptional LEDSOLUTION 3 generation LED module, the P-Series LED Street Lights give best luminous output, stability and extra long life. P-Series LED Street Lights are intended to build the most cost-performance luminaires ever.
LEDSOLUTION completed the R&D independently, and reserve all related patents for P-Series LED Street Lights.
Easy assemble/disassemble, neat wiring & connec on, up to 95 LPW luminous efficiency, IP66 and IK08 Rated, 90%+ driver efficiency, over then 100,000 hours opera on life and 5 years warranty.
Detail Fixture
1.Professional lens design, better proformance for street lighting.
2. Utilize two M8 x 16 fortified stainless steel screws to fix the luminaire part to electrical part in both side.
3. New connection, neat, clean and efficiency.
4. Utilize Germany WAGO connectors for output connec ons, safety, convenient and fast.
5. Utilize M12 waterproof connector for output cable fixing, avoid damage of hard power pulling.
6. Use M16 waterproof connector for input cable fixing, avoid damage of hard power pulling.
7. Whole luminaire utilize the stainless steel screws, no corrosion worries.

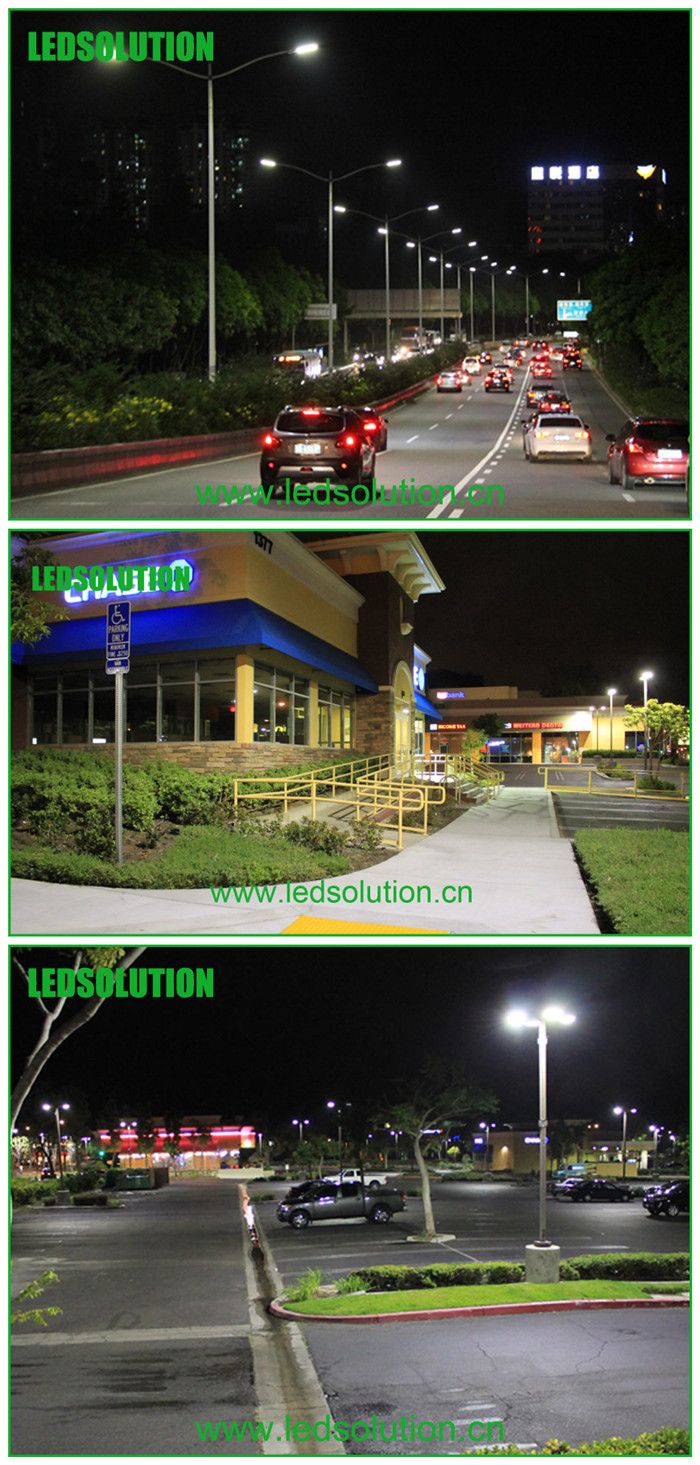

Application
Package
Packing Type
1unit(s) /ctn.
Packing Dimension
930 x370 x200 mm
36.6 x14.6 x7.9 inches
Packing Weight
12.6 kg /27.8 lbs

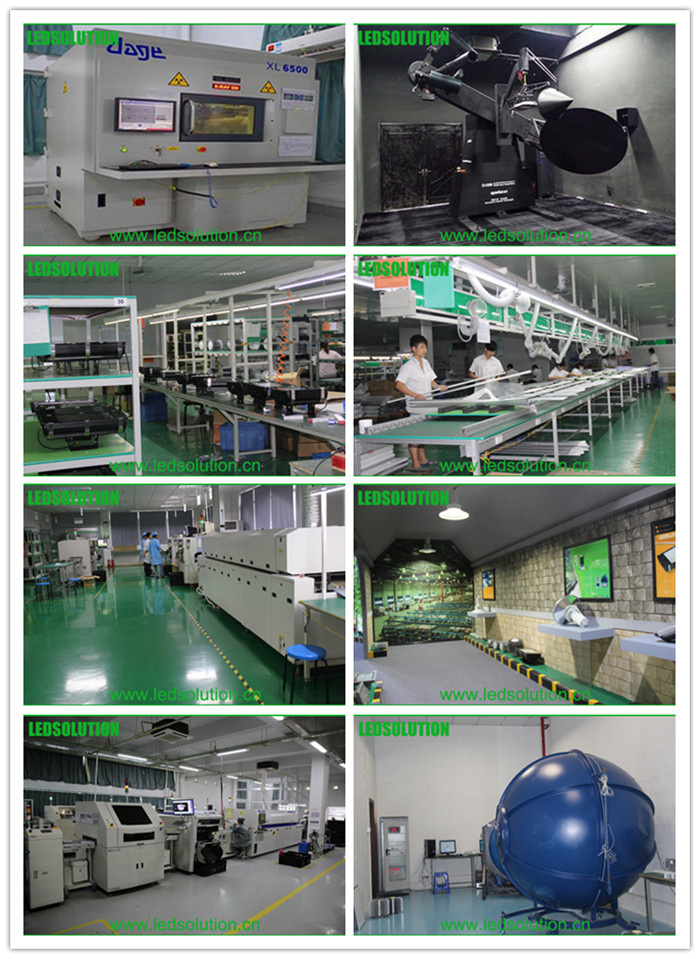

Our Factory
LEDSOLUTION is a competitive Global supplier Of LED Video Displays, LED Lighting and LED Components Solutions. We are specialized in High quality LED products including research, development, Production and marketing, serving various turnkey Solutions for government projects, corporate image Projects, commercial projects, and release of network Information, etc.
With the number of more than 300 staff, including our Research and Development staff which is a team of Over 80 members, and an accumulation of eight year Experience in the industry, LEDSOLUTION has become One of the world' S leading LED application Manufacturers. We owms totally 5, 000m2 super clean and antistatic workshop as manufacture base in Shenzhen. We have the whole set of international advanced Automatic machines and quipments, including advanced manufacturing equipments and perfect testing devices. We have already passed Switzerland quality system SGS ISO 9001: 2008 and ISO 14001: 2004 environment System certificate, RoHS test, CE certificate, CCC, ETL And other quality certificates, IP67 waterproof and dustproof test, EMC test, high and low temperature, heavy metal test. In May 2008, LEDSOLUTION was rewarded as "2007 China Excellent Company in LED Industry" by three top class national associations and media. In May 2009, LEDSOLUTION was titled the Most Promising LEDEnterprise in China for the Year of 2008 and was Granted the Excellence Award for LED Application In China for the Year of 2008 by China Electronics News, China Optics and Optoelectronics Manufactures Association (COEMA) and COEMA of LED Display Application.
For many years, relying on acuminous market awareness and in line with the enterprise spirit of Diligence, solidarity, innovation, transcendence and the goal of pursuing high technology, high quality
And high benefit, we have made big progress in High Tech field and now possess our own brands And independent intellectual properties. We have established completed market network and after Sales service network in domestic and overseas markets. In China, with 16 branches, LEDSOLUTION has owned very mature network of sales and after service. Our domestic customers are positioned at Top 500 enterprises in the world, such as Bank of China, China Mobile, China Safety Insurance, etc...Our products have been exported to all over the world, such as North America, Europe, SouthAmerica, Middle East Area and Southeast of Asia etc...
