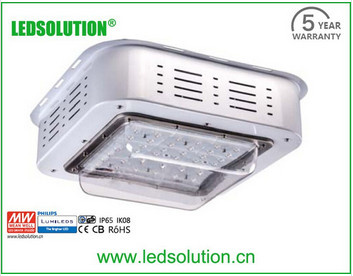

2015 New 100W Superbright LED Gas Station Light with CE RoHS
Overview:
1. High Reliable MEANWELL Driver,
2. PHILIPS LUXEON T chips,
3. IK08&IP66,
4. Five years warranty,
5. Surface or pendant mounting.
6. PHILIPS LUXEON® T luminous source with LM-80 report.
7. High Reliable MEANWELL® HLG driver with 5 Years Warranty.
8. Over then 100, 000 hours operation life.
Application:
Warehouse lighting,factory lighting,rink lighting,gas station lighting.Parking lots.Shops, Billboards, Buildings, Landscapes.
Specification
| Specifications |
| Model | LS-GSL100P |
| LED Brand | Philips LUXEON® T |
| Driver Brand | Meanwell HLG series |
| Norminal Wattage | 100W |
| LED Quantity | 42PCS |
| Input Voltage | 100-240/277VAC |
| Power Efficiency | >90% |
| Power Factor | >0.9 |
| Lamp Rated Luminous Efficiency | >95lm/w |
| Lamp Rated Lumen output | 9500 lm (Lumen tolerance +/- 5%) |
| Color Rendering Index | Ra>70 |
| Color Temperature | 3000 4000 5000 or 5700K |
| Photometric Type | 110 degrees |
| Optimal Operating Temperature | 25ºC |
| Storage Temperatures | '-40ºC~+70ºC |
| Working Environment | Between-40°C~+50°C, 10%~90%RH |
| Total Harmonic Distortion | < 10% |
| Lumen Maintenance | > 60000 hours -L70, @25 ºC (77 ºF) |
| Body and Shell Materials | Anodized Aluminum |
| IP Rating | IP65 with test report |
| IK Rating | IK08 with test report |
| Certification | CE,ROHS,GS,CB,LM-79 |
| Optional Function | 1-10V DC or PWM Signal or Resistance Dimming |
| Timer |
| Warranty | 5 years |
|
| Packing Details |
| Fixture Dimension | 340 x340 x170 mm |
| Fixture Weight | 3.9 kg / 8.6 lbs |
| Packing Dimension | 375 x375 x220 mm |
| Packing Weight | 5.5 kg /12.1 lbs |
Warranty
5 years Since the date of purchase.
Warranty Terms
1. Under the terms of this warranty, if the product have a failure occurs under normal usage within warranty period,LEDSOLUTION will provide free maintenance service based on the proof-documents and invoice(copy) of failure product.
2. LEDSOLUTION will provide paid maintenance service by under coditions within warranty.
(1).Failure or damage due to force majeure.
(2).Failure or damage due to transport or unloading.
(3) Failure or damage due to incorrectly usage or fail to comply with the User's Guide and Caution.
(4).Failure or damage due to demolition, repair, alteration without Manufacturer's authorization.
3. Please deliver the failure product by original packing for maintenance service, ZGSM will not responsible for any failure or damage in transportation if customer use non-original packing or improper packing.
4. LEDSOLUTION reserves the right for final explanation of aforesaid terms.
