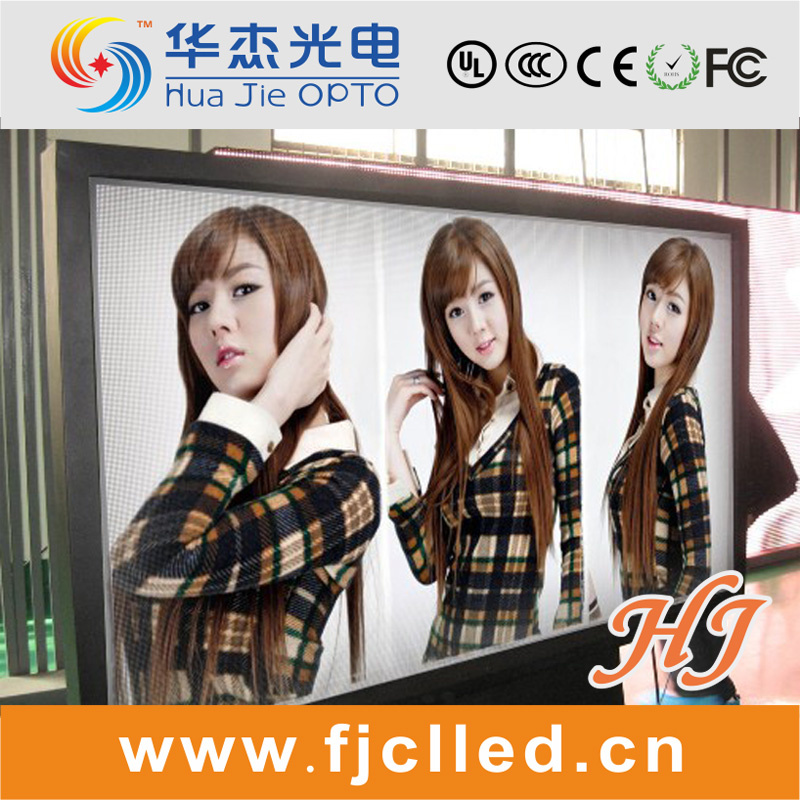

P7.62 Indoor Full Color Advertising LED Display Board
Features & Technical Specification:
1. Wide application field: Advertising LED display, Stadium perimeter LED display, Mobile LED display for mobile media, shopping mall LED display for logo showing, bank & stock exchange LED display for rates showing, train & bus station, airport, telecommunication LED screen system for information showing and instruction, Stage performances and so on.
2. High Contrast and Frequency: 4000: 1 and 5000Hz, which is a very high level to ensure a vivid image of our LED screen system.
3. First-class LED chip: Supplied by Silan & other high strictly selected LED chip to ensure the long life time and high brightness of our LED screen system.
4. Clear vivid image quality: Even in direct, full-on sunlight to ensure you attracts more audience to get short ROI of your LED screen's investment.
5. Long-term Brightness: 6500-nit brightness(for outdoor full color)(2000 nits brightness for indoor full color)capacity throughout product lifetime of the LED display.
6. Easy Installation & Using: Easy & simple installation interface and user friendly software to ensure the user friendly interface of the LED screen system.
7. Convenient Servicing: Front or rear cabinet access make the maintains work very convenient and low cost to help you concentrate more time and energy on your main marketing promotion business.
FUJIAN HUAJIE OPTOELECTRONIC CO., LTD
Previous name Channel Cailiang (Zhangzhou) Optoelectronics Co., Ltd, with a register capital 30 million RMB. Production base covers 53, 000sqm standard workshop, is equipped with several advanced automatic assembly lines that supported by more than 1200 skilled workers including 12% engineers and technician. Factory offers low cost high performance led displays, led modules, led screens amount to 250, 000sqm per month.
1. Fully Automatic Production Lines
Channel Cailiang owns the entire LED display manufacturing line, encapsulate original Semiconductor to LED chip, then assemble to led display lighting products.
2. Advanced Production Equipment
SMD/DIP die bolder, SMD/DIP wire Bolder, Auto Machine of Pouring Glue for SMD/DIP led, Spectrum and Color Separation Machine, LED oven, Wave solder, Reflow soldering, Spectrum electronic and color tester, temperature and humidity programmable tester, luminance meter etc. Are equipped for our LED Product production.
3. Many Certificates Approve
CE, FCC, UL, RoHS, CCC, ISO9001: 2000 Certified
4. Strong R&D Team
Huajie Opto absorbs more than 1200 skilled staffs, and including about 150 engineers and technician, which paves the way for R&D for new products and excellent sales service!
|
P7.62 Full Color SMD3528 Indoor Module |
|
Item |
Unit |
Parameter |
|
Pixel Pitch |
mm |
7.62 |
|
Resolution of Module |
dots |
64x32 |
|
Module Size |
mm |
488x244 |
|
Module Weight |
kg |
0.65 |
|
Pixel Configuration |
SMD3528 1R1G1B |
|
Chip Brand of LEDs |
Epistar |
|
Pixel Density |
dots/sqm |
17, 222 |
|
Brightness (White Balance) |
nits(cd/sq. m) |
≥ 2000 |
|
Red Wavelength |
nm |
620-625 |
|
Green Wavelength |
nm |
520-525 |
|
Blue Wavelength |
nm |
470-475 |
|
Scan Mode |
1/16 Scan |
|
Viewing Distance |
M |
3--45 |
|
Best View Distance |
M |
6--24 |
|
Viewing Angle-Horizontal |
deg. |
120 |
|
Viewing Angle-Vertical |
deg. |
120 |
|
Module Maximum Power |
W |
45 |
|
Max. Power Consumption |
W/sq. m |
1, 440 |
|
Avg. Power Consumption |
W/sq. m |
450 |
|
Working Voltage |
5V 40A |
|
Power Supply |
AC 110/220V |
|
Refresh Rate |
Hz/S |
3, 000 |
|
Frame Rate |
Hz/S |
≥ 60 |
|
Gray Scale |
4096 grades gray |
|
Display Function |
Text, news, advertising, flash, animation |
|
Input Signal |
RF, S-Video, RGB, RGBHV, YUV, YC, SDI, HD-SDI, DVI, UXGA, COMPOSITION, etc. |
|
Luminance Degradation |
Less than 5% after 1000 hours Ageing test, testing current 30mA, under normal temperature 25 centigrade. |
|
Defective Dot Rate |
< 0.0001 |
|
Life Span |
hours |
100, 000 |
|
MTBF |
hours |
> 5, 000 |
|
Storage Temperature |
centigrade |
-35 -- +80 |
|
Working Temperature |
centigrade |
-20 -- +60 |
|
Working Humidity |
10-90 % RH |
|
Control System |
Synchronization or Asynchronization |
|
Interface |
HUB75B |
|
Warranty |
3 Years |
|
Working Environment |
Indoor |
Channel Cailiang (Zhangzhou) Optoelectronic Co., Ltd. is one of the biggest LED manufacture in China. Our factory have 30 PCS production line for Outdoor DIP Modules, 5 PCS line for Indoor SMD products and more than 1, 500 skilled workers. Our R&D team are comprised of a crew of 10% of total staff and most of engineers have more than 5 years experience in LED industry, which great support our new products developing or customized products according to customers' requests.
Our Main Business is Produce various LED Display Module and LED Display Panel for Customers' assemble. It' s avaliable supply all the components for assemble LED Display or LED Message Signs. Besides, we focus on offering whole proposal for LED Display Projects and Solutions. Not only for regualr type, we have continuously developed several Profiled Screens and achieved some proud success in developing Traffic Wireless Solution Display Screens.
In order to design and develop higher quality products, our R&D team always tries best to meet the US&Euro-standards for Electronic products, as well as to fulfill the special requirements from customers. Our products have been approved the German TUV- EMC Certification and Euro EN12966 Certification, and we have also achieved ISO9001: 2000, CCC, CE, FCC, RoHS Certifications.
with perfect designed products, integrated solution including both hardware and software, and superior product and service guarantee, Cailiang has been highly praised by domestic and overseas customers. We have been shipping qualified products and services to more than 50 countries and regions all over the world, such as in the USA, Japan, Russia, Sweden, Turkey, Poland, France, Israel, Argentina, Spain, Italy, etc.
We value the power of cooperative team work, we take "Quality & Honesty" as our belief, and "Being the Largest Global Supplier of LED display Solution" as our goal.
"Channel Cailiang" Sincererly Invite your participation!
