An Series (OUTDOOR) Overview:

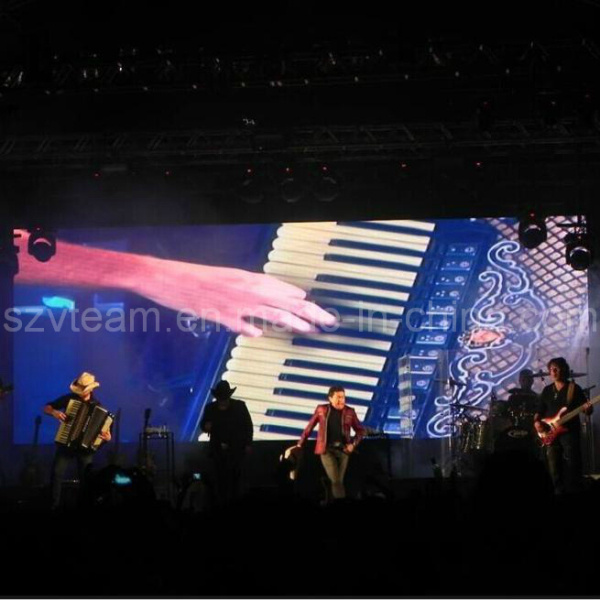

An Series (OUTDOOR) are designed with features of thin, lightweight, flexible; Simple and durable structure, 500*1000*68 mm cabinet, 13 kg/panel, could be fast to install and dismantle by one man in a short time without gap. Mostly used in creating largearea backstage, such as Stage, TV Show, Nightclub, etc. The screens and image revealed are true and beauty, creating a dream effect. An series are the best choice of creative designing company.
Main Features:
1 Lightweight, easy to carry and install, ideal for Events and Shows.
2 Simple Structure and Nice Appearance.
3 Jointed correctly, could be install & dismantle by one person.
4 Brightness is >5000nits, available for outdoor daytime use.
5 Outdoor use, IP65/IP43.
6. Humanized operating interface, easy to operate.
|
ITEM |
An6.25 |
An8.9 |
|
Pixel Pitch |
6.25mm |
8.92mm |
|
LED Type |
SMD3535 |
SMD3535 |
|
Pixel Matrix/panel |
80*160 |
56*112 |
|
Pixel Density/sqm |
25600 |
12544 |
|
Brightness |
6000 Nit |
5000 Nit |
|
View Distance |
≥6m |
≥8m |
|
Max. Power Consumption |
150W/panel |
250W/ panel |
|
Ave. Power Consumption |
80W/ panel |
130W/ panel |
|
Panel Size |
500mm x 1000mm x 68mm |
|
Weight/panel |
13kg |
|
LED Configuration |
RGB 3 in 1 |
|
Viewing Angle |
140°(H)/120°(V) |
|
LED Lamp/Chip |
Silar or Epistar |
|
Driving Mode |
1/4 scan |
|
Gray Scale |
≥14bit |
|
Refresh Rate |
≥1920Hz |
|
Color Temperature |
8000K ± 500(could be customized) |
|
Colors Space |
687 billion |
|
Protection Level |
IP65 |
|
Application |
Outdoor;rental&fixed use |
|
Input Signal |
DVI,VGA,HD-SDI,S-video,Composite,YUV,etc |
|
Input Voltage |
AC 220V±10%, 50/60Hz |
|
Power Supply |
Meanwell or G-energy with UL certificate |
|
Display Media |
Video,graphic,animation,signage,cartoon,text,etc |
|
Control System |
YDEA(showbox),Nova,Linsn,PC based dynamic capture & mapping. |
|
System Operating Platform |
WINDOW98/2000/XP/7/8 |
|
Working Environment |
Temperature: -10ºC~+50ºC, humidity: 10-90%RH |
|
Warranty |
Two years |
|
Lifetime |
> 50,000 hours(to>70% luminous output) |
|
Certificate |
CE&RoHs |
