Good Quality P6 SMD Outoor Full-Color LED Display
| Price: |
US $ 980-1050/Square Meter |
| Trade Terms: |
FOB,CIF,EXW |
| Min Order: |
1/Square Meter |
| Pay Type: |
T/T,Western Union |
Product DescriptionProduct features:1) Light, color can be customized
2) Full magnesium design, cooling well, no fans, no noise, anti-interference
3) Ultra-high refresh rate, support the camera recordor , to ensure a
clear picture quality
4) Fast disassembly module just 10 seconds, convenient replacement and maintenceP6 indoor Surface Mounted Module Technical Parameters
| Item | Parameter |
| Unit Module | Module size | 192mm*192mm |
| Pixel pitch | 6mm |
| Pixel density | 27777dots/m² |
| Pixel configuration | 1R1G1B |
| Package mode | SMD3535White LEDS |
| | Pixel resolution | 32dots(W)*32dots(H) |
| Max power consumption | 35W |
| Module thinkness | 2.7cm |
| Weight | 0.4kg |
| Drive type | constant current driving |
| Scan mode | 1/8 scan |
| Port type | HUB75-B |
| Brightness of white balance | ≥6000cd/m² |
|
|
|
| Unit Module | Cabinet size | 768mm*768mm |
| Cabinet composing | 16pcs |
| Power supply module | 5V/40A 5V/60A |
| Cabinet resolution | 128*128dots |
| Best viewing distance | 5m~50m |
| Best viewing angle | 160°(W)120°(H) |
| Temperature | storage:-35ºC~+85ºC
working:-20ºC~+50ºC |
| Relative humidity | 10%~95% |
| Thickness | 85mm |
|
|
|
| Power | Working voltage | AC220±10% |
| Average power consumption | ≤350W/H |
| Max power consumption | ≤ 560W/ h |
| Current | ≤20mA(single LED) |
|
|
|
| Control system | CPU | pentiuma or above |
| Operation system | WIN98/2000/NT/XP |
| Control method | synchronization |
|
|
|
| Main technical parameter | Driving device | constant current driver IC |
| Refresh frequency | ≥600HZ |
| Grey scale/colors | RGB each 256 grade,can display 16.7M colors |
| MTBF | ≥9000hours |
| Power switch | automatic switch |
| Display module | 800*600/1024*768/1280*900 |
Application:1) Large hall, sports arena, banking, telecommunications,
2) Government agencies, terminal, pier, railway stations,
3)Stock market and othertrading marketm medical systems,
4) Electric power,galleries, and other publicity, adverting,
information dissemination, the guide places, and so on.product certificates:

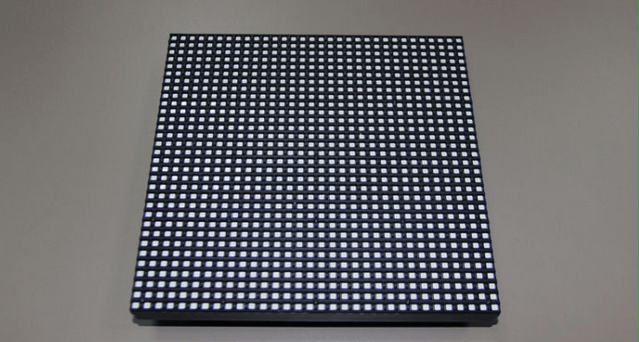

product picture:
| Prod Model: |
p6 outdoor SMD module |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Module Size: |
192mm * 192mm |
| Module Resolution: |
32dots(W)*32dots(H) |
| Max Power Consumption: |
35W |
| Driving Method: |
Constant Current Driving |
| Optimal Viewing Distance: |
6m~40m |
| Optimal Viewing Angle: |
160o(W) 120o(H) |
| Relative Humidity: |
10% - 95% |
| Interface: |
Hub75 |
| Control Mode: |
Synchronization with PC |
| Power Switch: |
Automatic Switch |
| Tube Chip Color: |
Full Color |
| IP Rating: |
IP65 |
| Pixel Configuration: |
1R, 1G, 1B |
| Display Function: |
Video Display |
| Average Power Consumption: |
350W / m² |
| Scanning Mode: |
1/8 Scan |
| Display Type: |
LED Video Display |
| Application: |
Advertising |
| Certification: |
FCC,EMC, IP67 |
| Pixel Pitch: |
6mm |
| Pixel Density: |
27777dots/M2 |
