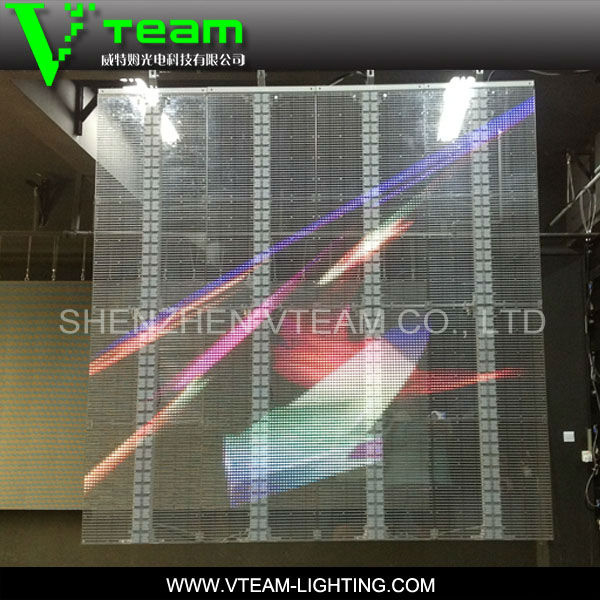

G10/12 is a kind of creative led screen with extremely high transparency, achieving a brilliant visual effect. G10/12 screen can be directly pasted on glass walls against the building for advertising and decoration, as well as been hung up for rental application as display screen. 1000x500mm for each panel size, only 9.5 kg on weight for single panel, max thickness is limited in 54 mm, all those unique advantages make G10/12 a perfect choice for creative designing company to use on large-scale applications.
Advantages:
High transparency rate: It is as high as 70%. Led lights are almost invisible from a specific distance.
Max thickness is limited in 49 mm
Simple installation: Can be directly installed behind the glass.
The protection rating can be IP65, so it is total waterproof.
Applications:
TV shows, live shows, events background display
Party, stage lighting
Hotel, disco, bars, night club ceiling and floor decoration
Architectures exterior lighting decoration
Totally transparent
|
Item |
|
G12 |
|
G20 |
|
Pixel Pitch |
|
12.5mm |
|
20mm |
|
Pixel Configuration |
|
RGB 3in1 SMD3535 |
|
RGB 3in1 SMD3535 |
|
Pixel Density/sqm |
|
6400 |
|
2500 |
|
Resolution |
|
48*24 |
|
32*16 |
|
Panel Size |
|
300mm×600mm×49mm |
|
320mm×640mm×49mm |
|
Viewing Distance |
|
≥12m |
|
≥20m |
|
Weight |
|
5KG |
|
Transpantency Rate |
|
≥70% |
|
Brightess |
|
4500nit |
|
Viewing Angle(H/V) |
|
140°/140° |
|
Gray Scale |
|
14bit |
|
Refesh Rate |
|
≥1200Hz |
|
Color Type |
|
68 Billion |
|
Gamma |
|
–5.0~5.0 |
|
Protection Level |
|
IP65 |
|
Application |
|
Outdoor |
|
Control System |
|
Synchronous display with control PC by DVI |
|
Signal Input |
|
Composite,S-vide, Component,VGA,DVI,HDMI,HD-SDI |
|
Power Supply |
|
DC36~75V ,FSP.Technology |
|
Working Environment |
|
Temperature-10°C~50°C,Humidity 10~90%RH |
|
Lifetime |
|
>50000hours |
|
Certififate |
|
CE |
SHENZHEN VTEAM Co., Ltd. is a professional ODM LED Screen manufacturer in Shenzhen, China, specialized in creative indoor and outdoor LED screen with experienced R&D team who has been working in LED display field for more than 8 years.
VTEAM screen is popular with the features of light weight, ultra-thin cabinet, transparent structures and widely-used in the application of TV Station, studios, auto shows, music concerts, clubs, discos, building facade, outdoor decorative lighting projects, exhibitions, celebrations etc.
As one of leaders of LED Screen suppliers in China, All products carry CE RoHS certification, with perfect designed products, customized solution, superior product and service guarantee, VTEAM has been highly praised by domestic and overseas customers, we have been shipping qualified products and services to more than 100 countries and regions all over the world, such as in the USA, Russia, Germany, Sweden, France, Netherland, Spain, Canada, Brazil, Mexico etc. The most notable of those successful projects is that we have done the creative "Giant Football" for the opening&closing ceremony of 2014 Brazil FIFA WORLD CUP!
VTEAM Mission: To create value and profit for customers!
VTEAM Vision: Being creative concept pioneer!
