Product Features and advantages:
.Low energy consumption, long lifespan, Less maintenance performance
.No color difference, concentrating well, good viewing angle
.Better waterproof, better radiation, better dustproof, good quality modules, under the same conditions, using two more years than SMD

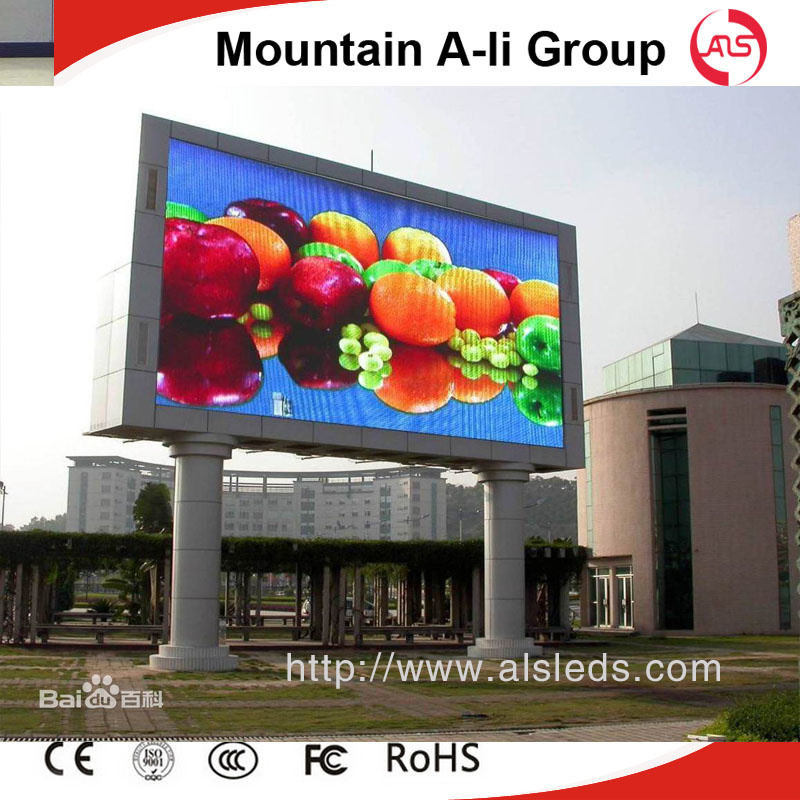

.High brightness ,high refresh ,the biggest advantage of a comprehensive reflection of outdoor HD LED display
.Simply installation,easy to maintain,easy to use
Remarks
1.Payment term:
30% T/T in advance and balance before delivery.
2.Delivery time:
Within 15 working days after 30% advance payment.
3.Free training:
You can send your engineers who have knowledge of electronics and information to our factory and we provide free technical training, which contains training operation and maintenance of the LED display at our factory. We also offer the instruction manual, software, test report, drawing steel structure and so on.
4.Installation:
We offer you the engineer to install the LED display, you have to offer him the two-way air tickets and accommodation as well as visa. The engineer's salary is $80/day;or we offer you the training on the LED display installation and repairing for free after you live in our company, or we can guide you to install the screen by remote control.
5.Service after sales:
If you have any questions about our product, you can inform us by mail or call, and we will reply you in 24 hours when we get you E-mail or call, and offer you a good solution for your problem.
Parameter
| The specifications of modules |
|
|
| Items | Parameter |
|
| Product Model | P7 Outdoor Full Color LED Module |
|
| Module size | 224mm*1128mm |
|
| Pixel pitch | 7mm |
|
| Pixel density | 20408dots/m2 |
|
| Pixel configuration | 1R1G1B3 in 1 |
|
| Module resolution | 32dots(W)*16dots |
|
| Module maximum power consumption | 23W |
|
| Module Thickness | 2.7CM |
|
| Module Weight | 0.5kg |
|
| Driving method | Constant Current Driving |
|
| Scanning method | 1/8scan |
|
| Interface | HUB75B |
|
| Brightness | ≥7000cd/m2 |
|
| The specifications of cabinets |
|
|
| Cabinet size | 896mm*896mm |
|
| Module quantity | 32pcs |
|
| Power supply | 5V/40A 5V/60A |
|
| Cabinet resolution | 128*128dots |
|
| Optimal viewing distance | 7M~50M |
|
| Optimal viewing angle | 160°(W) 120°(H) |
|
| RH Working temperature | (Work :-20°C~+50°C) |
|
| System operating humility | 10%-95% |
|
| The specifications of power supplier |
|
|
| Operating Voltage | AC220V±10% |
|
| Average power consumption | 350W/H |
|
| Maximum power consumption | ≤600W/m2 |
|
| Electric current | ≤20mA(single LED) |
|
| The specifications of control card |
|
| Control Panels | Pentium4 or above |
|
| Operating system | WIN98/2000/NT/XP |
|
| Control model | Synchronization with PC |
|
| The specifications of the main technical parameters |
|
|
| Driving device | Constant Current Driving |
|
| Refresh rate | ≥600HZ |
|
| Grey scale | RGB Each 256, can display 16.7M colors) |
|
| MTBF | ≥9000hours |
|
| Power switch | Automatic Switch |
|
| Display Mode | 800*600/1024*768/1280*900 |
|
