Product features:
1) Ultra-high- definition display, high-precision seamless
2) The new structure designed to meet the lifting, stacking requirement,
to meet the requirements for indoor and outdoor
3)Ultra-high refresh rate, support the camera recordor , to ensure a
clear picture quality
4) Quick editing of assembly, disassembly system, saving unloading time
Product Description

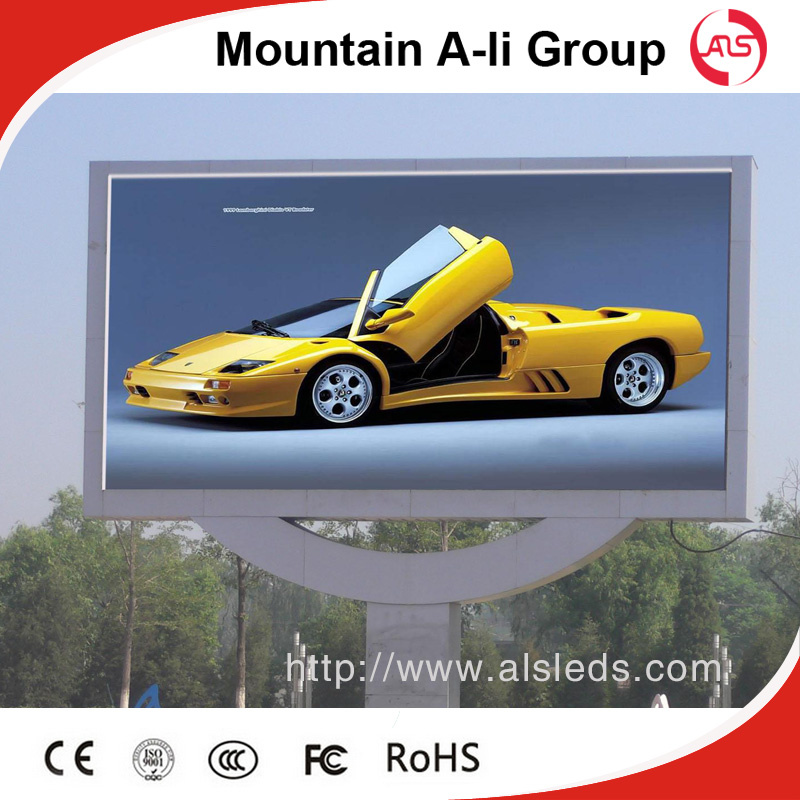

P5 Outdoor Surface Mounted Module Technical Parameters
| Item | Parameter |
Unit Module | Module size | 160mm*160mm |
| Pixel pitch | 5mm |
| Pixel density | 40000dots/m² |
| Pixel configuration | 1R1G1B |
| Package mode | SMD2828 |
| Pixel resolution | 32dots(W)*32dots(H) |
| Max power consumption | 25W 30W |
| Module thinkness | 14.27mm(without magnet) 26.6mm(with magnet) |
| Weight | 0.21kg |
| Drive type | constant drive |
| Scan mode | 1/8 scan |
| Port type | HUB75-B |
| Brightness of white balance | ≥1600cd/m² ≥6400cd/m² |
|
|
|
Unit Module | Dimension | 640mm*640mm |
| Quantity of module | 16 |
| Power supply | 5V/40A*2pcs |
| Thermal discharge | fan 2pcs |
| Pixel per cabinet | 128mm*128mm |
| Best viewing distance | 5m~30m |
| Best viewing angle | 160°(W)120°(H) |
| Temperature | storage:-35ºC~+85ºC working:-20ºC~+50ºC |
| Relative humidity | 10%~95% |
| Thickness | 85mm |
|
|
|
Power | Working voltage | AC220±10% |
| Average power consumption | ≤1180W/m² ≤ 300W/m² |
| Max power consumption | ≤ 500W/m² ≤ 500W/m² |
| Current | ≤20mA(single LED) |
|
|
|
Control system | CPU | pentiuma or above |
| Operation system | WIN98/2000/NT/XP |
| Control method | synchronization |
|
|
|
Main technical parameter | Driving device | constant current driver IC |
| Refresh frequency | ≥400HZ |
| Grey scale/colors | 256 levels of each color(RGB)16.7M colors |
| MTBF | ≥9000hours |
| Power switch | automatic switch |
| Display module | 800*600/1024*768 |
Application:
1) Large hall, sports arena, banking, telecommunications,
2) Government agencies, terminal, pier, railway stations,
3)Stock market and othertrading marketm medical systems,
4) Electric power,galleries, and other publicity, adverting,
information dissemination, the guide places, and so on.
