GDOT Overview:

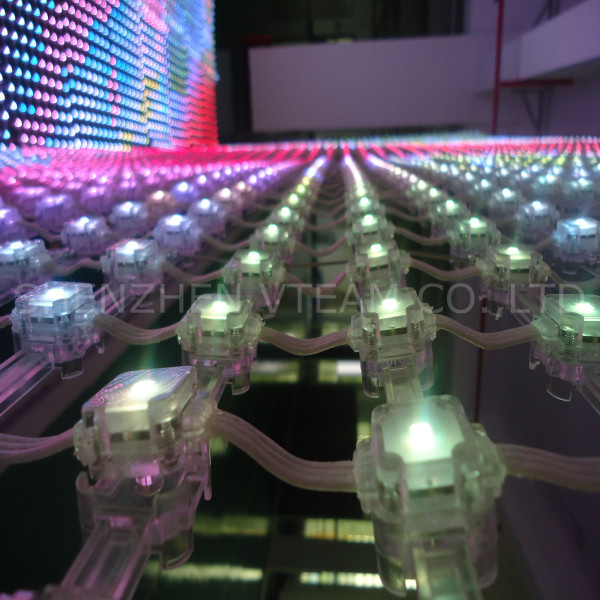

GDOT is a high transparent, soft full color LED display system. Its features are flexible installation, lightweight, highly transparent, which are adapted to various kinds of installation, such as bend, fold, winding, swing, etc...It is high artistry and creativity that can be free to assemble into various shapes. It is the best choice for the innovative design company.
Product Features:
1. Completely transparent material, Cool display effect.
2. Rich installation accessories, flexible installation, adapting to different scenarios.
3. A creative way to realize the ultra-thin double display and the thickness of whole screen is not more than 28 mm.
4. The rhombus display without additional parts creates the dreamlike effect the world.
5. High permeability, go through light, air and smoke easily.
6. It could achieve various irregular installations without considering the restrictions of scenarios.
7. It is best choice for the creative design company for its easier design and various applications.
|
ITEM |
gDOT- 35 |
gDOT- 55 |
gDOT- 80 |
|
Pixel pitch |
35mm |
55mm |
80mm |
|
Pixel density(dot/s.q.m) |
816 |
330 |
156 |
|
Brightness |
2200 nits |
900 nits |
420 nits |
|
Max.Power Consumption |
370 W |
150 W |
70 W |
|
Ave.Power Consumption |
180 W |
75 W |
35 W |
|
Pixel composition |
RGB 3in1 SMD3535 |
|
Viewing angles |
H140° V140° |
|
Refresh rate |
≥1000 Hz |
|
Gray Scale |
12 bits |
|
Color space |
68 Billion |
|
Control system |
PC based dynamic capture & mapping. |
|
Operating Life |
> 50,000 hours |
|
Power supply |
AC 220V±10%, 50/60Hz |
|
Protection |
IP65 with led strings, IP54 with signal distributor and power box. |
|
Work environment |
temperature -30 ~ 50 °C , humidity 10-90%RH |
SHENZHEN VTEAM Co., Ltd. is a professional ODM LED Screen manufacturer in Shenzhen, China, specialized in creative indoor and outdoor LED screen with experienced R&D team who has been working in LED display field for more than 8 years.
VTEAM screen is popular with the features of light weight, ultra-thin cabinet, transparent structures and widely-used in the application of TV Station, studios, auto shows, music concerts, clubs, discos, building facade, outdoor decorative lighting projects, exhibitions, celebrations etc.
As one of leaders of LED Screen suppliers in China, All products carry CE RoHS certification, with perfect designed products, customized solution, superior product and service guarantee, VTEAM has been highly praised by domestic and overseas customers, we have been shipping qualified products and services to more than 100 countries and regions all over the world, such as in the USA, Russia, Germany, Sweden, France, Netherland, Spain, Canada, Brazil, Mexico etc. The most notable of those successful projects is that we have done the creative "Giant Football" for the opening&closing ceremony of 2014 Brazil FIFA WORLD CUP!
