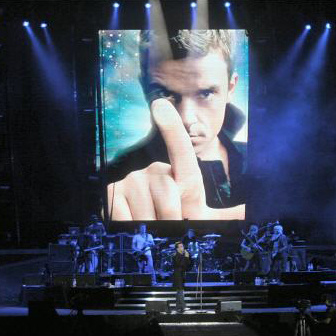

Full Color LED Display

Full Color Video displays can display everything from graphics, animations, text, text overlay to full and real-time video. The video option can take a signal from DVD, VHS, cable TV, or even directly from a video camera.

Video displays are capable of displaying 16.8 million colors (256 grayscale) from a color palette of 68 billion colors and 4, 096 shades of grayscale. They have a frame rate of 30-75 frames per second and a refresh rate of 180 Hz.

Can save you the learning curve, and work of putting together your system.

ITEM MODEL
PH16 OUTDOOR WEATHERPROOF
1 Real Pixel Pitch 16mm
2 Pixel Configuration: 2-Red, 1-Green, 1-Blue
3 Pixels per Panel 3072 pcs per panel (3906 pixels per m2)
4 Number of LEDs: 12288 pcs per panel
5 Viewing Distance : 20m—40m
6 Unit Module Dimension: 256mm× 128mm (16dots× 8dots)
7 Unit Panel Dimension: 1024mm(w)× 768mm(h)× 120mm(d)
8 Pixel Matrix per Panel: 64dots× 48dots
9 Unit Panel Weight: 55kg
10 Display Capabilities: Video, Text, Graphics
11 Input Signal: HDTV, NTSC, PAL, S-Video, VGA
12 Display Colors: 16.8 million colors
13 Graduation Method: 1, 024 Shades Per Color
14 Power Consumption per Module: 1200 Watt (Peak White)
15 Lifetime of LEDs: More than 50, 000 Hours
16 Input Voltage: AC220V/380V(three items and five lines)
17 Input Power Frequency: 50/60Hz
18 Vertical Viewing Angle: 70·
Horizontal Viewing Angle: 140·
19 Way of Drive: Static Constant Current
20 Brightness: >5500cd per m2
21 Color In each pixel, there are 256 level gray for red, green and blue representatively, and 16777216 color in total.
22 Support Mode VGA800*600, 1024*768 display synchronically with the computer, correspondence dot to dot
23 Lightness Conditioning Each color 256 level brightness, software conditioning
24 Communication Distance For 5 types of line, no more than 150 meters; For fiber, no more than 5000 meters.
