| Price: | US $ 650-980/Piece |
|---|---|
| Trade Terms: | FOB,CFR,CIF |
| Min Order: | 20/Piece |
| Pay Type: | L/C,T/T,D/P,Paypal,Money Gram |
1). Green Energy, Lower Power Consumption, Save 60%-80% Than Others.
2). Higher power, higher brightness intensity, Good Color Rendition.
3). Save electricity cost. Save electric transformer and cable cost. Free maintenance
4). Environmental Impact - Eliminate Hazardous Disposal, Low Light Pollution, No Radiation.
5). Longer lifetime: Between 80000~100000 Hrs. If lighting 12 hrs/night, could use at least
12 - 22 Years
6). Less heat Generated compared to other sources,
7). Downward orientation of Light, could adjust lighting angles and lighting range and shape
on the Ground to meet the road-Rectangular. Other lighting source just could give common
round shape and small lighting range.
* Our Competitive Products
| 1. Solar Street Lights & LED Street Lighting 15W-120W; |
| 2. Solar Garden Lights & Solar Landscape Lights 5W-30W; |
| 3. Solar Battery: 4.5Ah-250Ah/12V, 200Ah-3000Ah/2V; |
| 4. Solar Panels & Solar Modules 5W-300W Poly & Mono ; |
| 5. Solar Controllers: 5A-60A/12V Or 24V Or 48V IP 65 IP68 Rating; |
| 6. Solar Home Lighting System/Kits : 5W~5000W With Lighting + Fan + TV + Fridge + USB Charging Phone Function/AC or DC Power; |

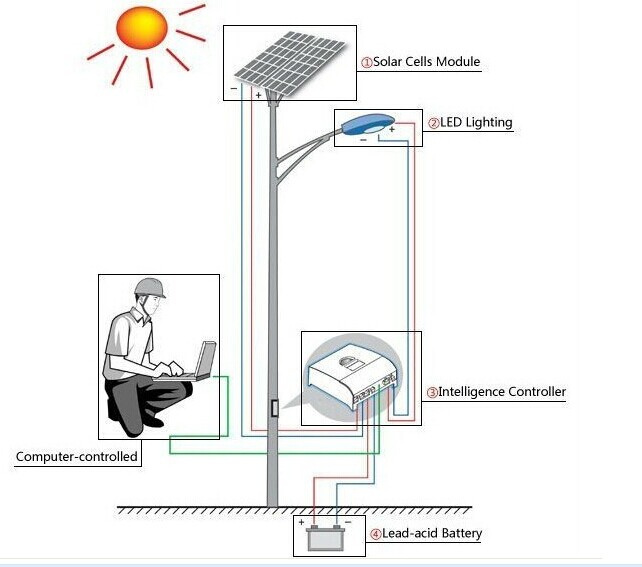

*LED Solar Road Light Working Principle
The solar street light relies on solar energy, which is clean, endless and environmental friendly.
The system is mainly composed of solar panel, light source, controller and battery.
In daytime, when there is sunshine, the solar panel can convert the solar energy to electric energy
and store it in the battery.
At night or rainy or cloudy condition, the battery shall supply power for normal lighting.
The controller can judge the brightness of daylight and automatically switch on the light.
The whole process is operating in completely automatic mode, without human action.

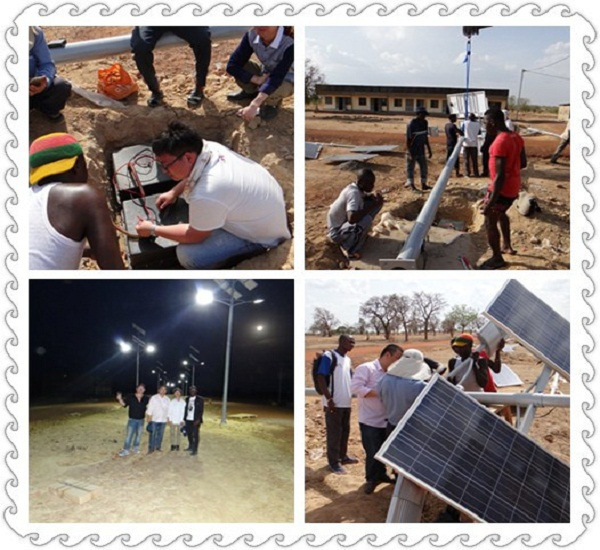

*BR-Solar Professional Engineering Team (Installation Instruction)
* Regular Configurations and Specifications of 8M 60W LED Solar Outdoor Lighting
| Part Name and Lifespan | Technical Specification |
| Solar Panel: Lifespan:20-25 years | 140W*2PC Poly crystalline. High Efficiency. A-class Adding Aluminum Frame, Tempered Glass. |
| Gelled Battery Lifespan:5-8 years | 120Ah/12V*2PC, Gelled battery, Sealed Type. Deep cycle. Maintenance Free |
| Intelligent Solar Controller Lifespan:5-10 years | 15A/24V, IP68. Automatic Light and Time Control Over-charging/discharging Protection Reverse-connection Protection Switch on Automatically with Light Sensor; Switch off after designed Hours later |
| Light source: High Power LED Lifespan: More than 50000-100000Hrs | 50W LED, White Color, 6500LM,6000K, IP65 High Power, High Brightness. |
| Lamp Housing: Lifespan: More than 20 years | Die-casted Aluminum, IP65 High transmittance & Density toughened glass, |
| Pole: Lifespan: More than 20 years | 6M Height, Steel, Hot-Dip Galvanized. With Arm, Bracket, Flange, Fittings, Cable, Etc Plastic Coated, Rust Proof, Resistant to Wind: ≥150KM/H, |
| Battery Box: | Engineering Plastic,Burying Type Battery |
* BR-Solar Certifications and Honours
* FAQ
| 1.Q:How many cycles full charge&discharge about your battery? A: In 50% discharging deepness, it can be cycled for 1,200 times; in floating charging and discharging status, it can be cycled for 5000~6000 times. |
| 2.Q:How to Choose the System Voltage 12V or 24V or for normal street Light ? A: We can design the System for 12v or 24v for solar street Light or 220-380V for normal street light . |
| 3.Q:What's the main difference between mono and polycrystalline solar panel? A: production process and cost. Polysilicon technology is more mature since it is an early technology compared with Monosilicon. |
| 4.Q:The controller of your solar street light has dual time control function? A: our solar charge controller is designed with dual time control function, you can set up the lighting time and divide it into two parts, like 12 hours (6 hours full power lighting + 6 hours half power lighting) |
* WHO WE ARE
| Prod Model: | BRH-L1A 60W Solar Outdoor Lights |
|---|---|
| Markets: | North America,South America,Eastern Europe,Southeast Asia,Oceania,Mid East,Western Europe |
| Lighting Effect: | Equal to 250W High Pressure Sodium Lamp |
| Designing Points: | with Battery Hanging on Pole Side |
| IP Level: | IP65,IP68 Against Thief |
| Brand Name: | Br Solar Marked Solar Outdoor Lights |
| Color: | Black, White, Grey, Blue, Green, and with Customiz |
| Lamp Choosing: | 15W/24W/30W/42W/60W/70W/80W/100W/120W |
| LED Chip Mark: | CREE, Bridgelux, Epistar,Philips |
| Warranty Time: | 3 Years for Solar Outdoor Lights |
| Power Supply: | Solar |
| Color Temperature: | Cool White |
| Lamp Body Material: | Aluminum |
| Application: | City Center for Mainroad |
| IP Rating: | IP65 |
| Certification: | SASO |
| Input Voltage: | 24v |
| With Light Source: | With Light Source |
| LED Chips Brand: | Epistar |
| Power: | 60W |
