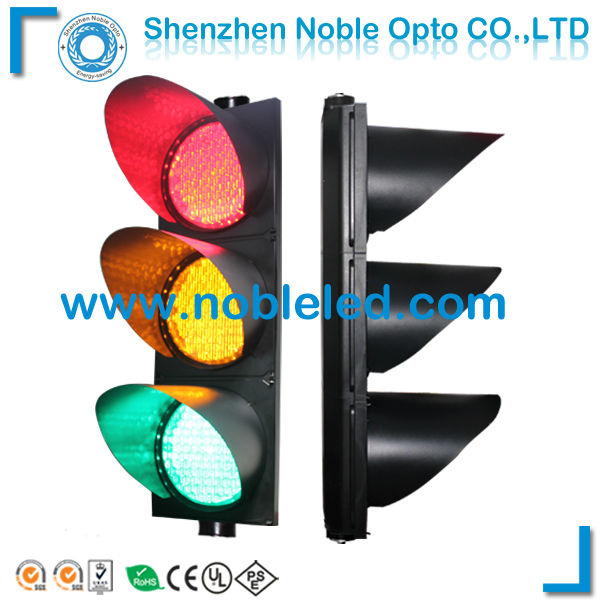

energy saving led traffic light (12'' )
Shape: 300mm (12")
High brightness LEDs with integrated optics
Moisture and dust tight seal(IP65)
Total Harmonic Distortion<20%
OperatingTemperature Range(optional): -30 to 60 Operating voltage Range: 12VDC
Insulation Resistance: ≥ 2M
Life: 100, 000H
housing material: PC
Features/Benefits:
Reduce overall operating & mainenance costs: Energy saving: 90% reduction in power consumption vs incandescent
Reliability & traffic safety: Improved visibility over life of the product Reduces emergency lamps outs Design minimizes sun phantom effects
Easy to install into existing signal enclosure
|
Characteristics |
|
|
Color |
Size |
Model Number |
Profile |
Voltage
VDC |
LEDs |
Typical Wattage at 25 |
Luminance
(cd/m2) |
Typical Dominant Wavelength
(nm) |
|
(mm) |
|
Red |
300 |
NBJD300G |
Round |
12-24VDC/100-277VAC |
121s |
< 11 |
> 8000 |
625 |
|
Yellow |
300 |
NBJD300Y |
Round |
12-24VDC/100-277VAC |
121s |
< 11 |
> 8000 |
590 |
|
Green |
300 |
NBJD300G |
Round |
12-24VDC/100-277VAC |
121s |
< 11 |
> 8000 |
500 |
|
Gather to pack: |
|
Model |
housing material |
Dim. of Outer Carton |
Quantity/CTN |
G. W/CTN |
N. W/CTN |
packing |
|
NBJD113-3-C |
PC |
121*41*21mm |
1PCS |
11.85 |
11.45 |
carton |
Shenzhen NOBLE Opto Co., Ltd., is a high-tech private enterprise, Professional in researching, developing, and manufacturing all kinds of LED illuminations products.Since the establishment of the company, we recognize the importance of providing good quality products and best pre- to after-sale service, and we are always trying our best offer to improve our design and production capacity.Moreover, we have the LED traffic light CE certification for Europe Market.Our products are exproted to oversea markets around European countries and Middle Eastern area, such as Sweden, England, Italy, Poland, Romania, Serbia, Turkey, Israel, Spain, USA, Kartel, Russia Ross, Singapore etc...
We enjoy highly trained management team, skilled LED Traffic light and LED Tube Light and LED Street Light design and development team.Strict ISO9001:2000 quality control system, modern administration model, perfect marketing network and pre- to after-sale service system are reliable assurance of good quality, enterprise speedily development.And we have several production lines to guarantee enough production capacity.
Our philosophy for management is to service our client with best quality and honesty.We will continue our effort in manufacturing best quality LED Traffic Light, LED Tube Light, LED Street Light etc., and making Noble Opto a first class LED traffic light, LED Tube light, LED Street Light manufacturer around the world.
