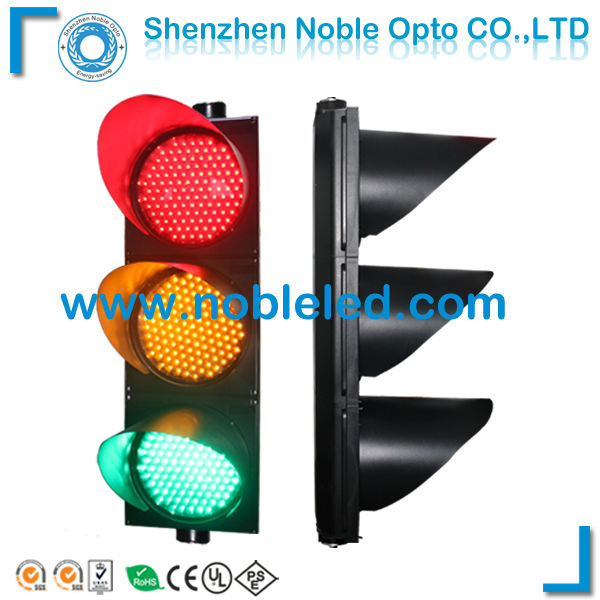

300mm tricolor solar led traffic light
Specifications:
1> Shape: 300mm with clear lens
2> High brightness LEDs with integrated optics
3> Moisture and dust tight seal(IP54)
4> Total Harmonic Distortion<20%
5> OperatingTemperature Range(optional): -30 centigrade to 60 centigrade
6> Angle: Avg. ---more than 60 degree; Down---60 degree;
7> Operating voltage Range: 85~265VAC
8> Insulation Resistance: More than 2M
9> Life: 100, 000H
10> Housing material: PC(PMMA)
Advantage for Traffic Signal Light:
1. Save 90% power against incandescent
2. Improved visibility
3. Reduces emergency
4. Lamps design minimizes sun phantom effects
5. Easy to install into existing signal enclosure
|
Characteristics |
|
Color |
size (mm) |
Model# |
Voltage |
LEDs |
Typical Wattage at 25º C |
Luminance
(cd/sq. m) |
Typical Dominant Wavelength
(nm) |
|
Red |
300 |
NBJD300R-1 |
85-265VAC |
168s |
< 12 w |
> 8000 |
625± 5 |
|
Amber |
300 |
NBJD300Y-1 |
85-265VAC |
168s |
< 12 w |
> 8000 |
590± 5 |
|
Green |
300 |
NBJD300G-1 |
85-265VAC |
168s |
< 12 w |
> 8000 |
500± 2 |
|
Gather to pack |
|
Model |
Housing Material |
Dim. of Outer Carton(mm) |
Qty/Ctn |
G. W/Ctn |
N. W/CTN |
Packing |
|
NBJD313-3 |
PC |
1230x420x200 |
1PCs |
11.5KGs |
9.5KGs |
K=K Carton+EPE |
Shenzhen NOBLE Opto Co., Ltd., is a high-tech private enterprise, Professional in researching, developing, and manufacturing all kinds of LED illuminations products.Since the establishment of the company, we recognize the importance of providing good quality products and best pre- to after-sale service, and we are always trying our best offer to improve our design and production capacity.Moreover, we have the LED traffic light CE certification for Europe Market.Our products are exproted to oversea markets around European countries and Middle Eastern area, such as Sweden, England, Italy, Poland, Romania, Serbia, Turkey, Israel, Spain, USA, Kartel, Russia Ross, Singapore etc...
We enjoy highly trained management team, skilled LED Traffic light and LED Tube Light and LED Street Light design and development team.Strict ISO9001:2000 quality control system, modern administration model, perfect marketing network and pre- to after-sale service system are reliable assurance of good quality, enterprise speedily development.And we have several production lines to guarantee enough production capacity.
Our philosophy for management is to service our client with best quality and honesty.We will continue our effort in manufacturing best quality LED Traffic Light, LED Tube Light, LED Street Light etc., and making Noble Opto a first class LED traffic light, LED Tube light, LED Street Light manufacturer around the world.
