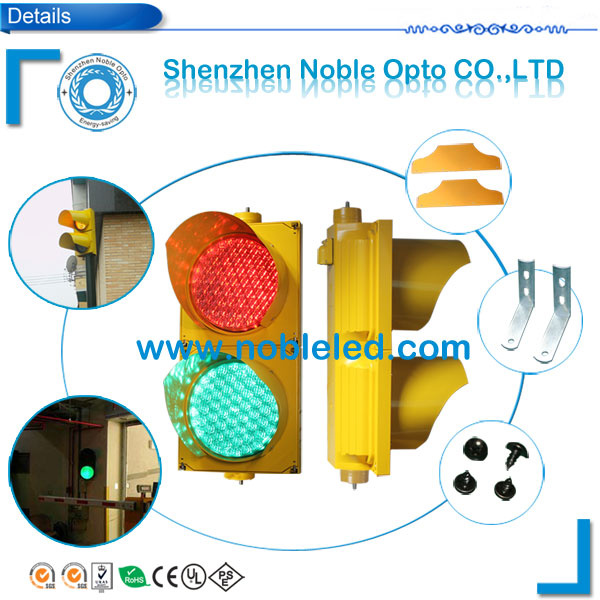

Two Colors LED Traffic Signal Light
Features of LED Traffic Signal Light:
-----Reduce overall operating & maintenance costs: Energy saving: 90% reduction in power consumption vs. Incandescent
-----Reliability & traffic safety: Improved visibility over life of the product Reduces emergency lamps outs Design minimizes sun phantom effects
-----Easy to install into existing signal enclosure
Specification of LED Traffic Signal Light:
1> Shape: 200mm (8") with cobweb lens
2> High brightness LEDs with integrated optics
3> Moisture and dust tight seal(IP65)
4> Total Harmonic Distortion< 20%
5> OperatingTemperature Range(optional): -30 centigrade to 60 centigrade
6> Angle: Avg. ≥ 30° Down ≥ 30°
7> Operating voltage Range: 85~265VAC
8> Insulation Resistance: ≥ 2M
9> Life: 100, 000H
10> Housing material: PC(PMMA)
|
Characteristics |
|
Color |
size (mm) |
Model# |
Voltage |
LEDs |
Typical Wattage at 25º C |
Luminance
(cd/sq. m) |
Typical Dominant Wavelength
(nm) |
|
Red |
200 |
NBJD200R-1 |
85-265VAC |
61s |
< 7 |
> 8000 |
625 |
|
|
|
|
|
|
|
|
|
|
Green |
200 |
NBJD200G-1 |
85-265VAC |
61s |
< 7 |
> 8000 |
625/500 |
|
Gather to pack |
|
Model |
Housing Material |
Dim. of Outer Carton(mm) |
Qty/Ctn |
G. W/Ctn |
N. W/Ctn |
Packing |
|
NBJD213F-3 |
PC |
630x330x220 |
1PCs |
7.8KGs |
6.5KGs |
K=K Carton+EPE |
