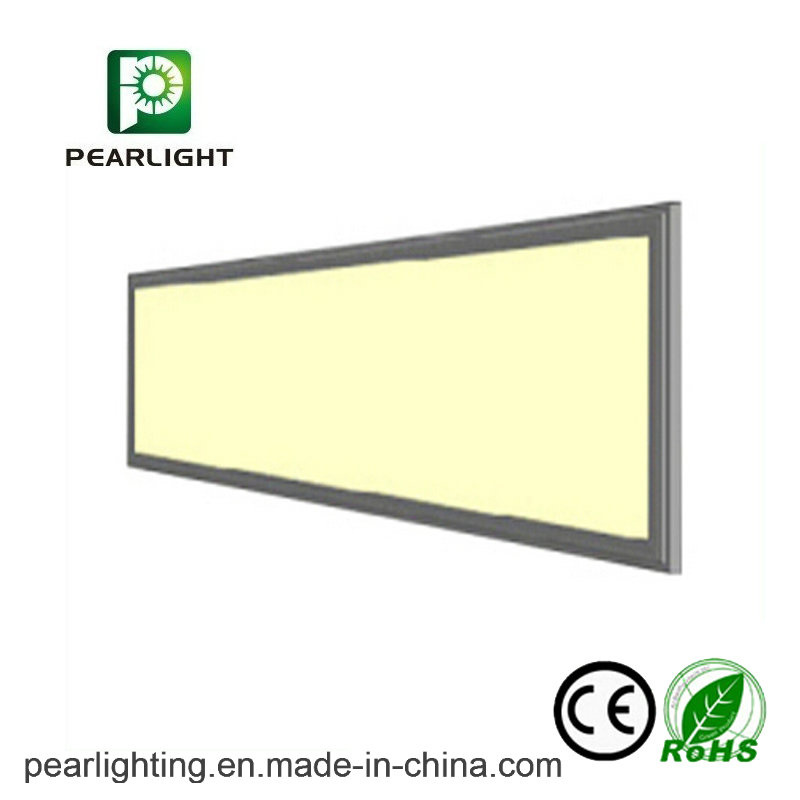

Energy Saving 300*1200 Side Emitting Panel Light (50W)

Energy Saving 300*1200 Side Emitting Panel Light (50W)
Application
This product apply to office building, shopping mall, super market, school, hospital, hotel, parking lot, workshop, government projects, family etc.
Product advantages
1). Energy-saving: adopt low power SMD4014 & SMD2835 lighting source, saving 80% energy than incandescent lamp
2). ECO- Friendly: No Hg or Pb etc harmful substance, pollution-free for environment, no infrared or UV, avoid the harm for human body, belong to green lighting product.
3). Long Lifespan: over 30,000hours
4). This product use small power chip to avoid the highly-focus heating source, also use high efficiency heat-conducting silicone pad to increase the lifespan of lamp.
5). Adopt the constant current led driver, no strobe.
6). Unique lighting emitting design, adopt high quality light guide plate to form even, soft and comfortable light.
Product features

Shell	Aluminum Alloy
Surface Of lamp	Sliver & White
Heat Sink	6063 Aviation Aluminum
Aluminum	One LED broken down, others can be work normally
Base	PMMA LGP +PS/PC Diffuser
Diffuser Light	LED SMD2835 &SMD4014
Source	TUV \CUL\SAA\ENEC\FCC\CE\PSE etc approval
Driver CCT	2500-7000K

Product technical parameters

Product Model	PT-P123040W-A2	PT-P123050W-A2
Rated Power	40W±5%	50W±5%
Input voltage	100V-240V AC,Max277V	100V-240V AC,Max277V
Input Current	Max 0.7A	Max 0.8A
Working Frequency z	50/60Hz	50/60Hz
THD	<15%	<15%
Power Factor	>0.90	>0.90
Power efficiency	≥86%	≥86%
Output Voltage voltage/current	Voltage:27-42VDC                    Current:1000mA±5%	Voltage:27-42VDC  Current:1200mA±5%
Lumen for Single led	≥55-60lm/150mA	≥55-60lm/150mA
LED Chip	SMD4014/SMD2835	SMD4014/SMD2835
LED Qty	120PCS	192PCS
CCT	2700-7000K	2700-7000K
Luminous flux	3300±10%LM	4200±10%LM
Beam angle	120°	120°
CRI	≥80	≥80
Work temperature	-20~+45ºC	-20~+45ºC
Storage temperature	-30~+65ºC	-30~+65ºC
Life time	30,000H	30,000H
IP	40	40

Installation notes
1. A professional person who have electrician certificate to install the lamp
2. To check the completeness of the lamp when you take it out from the carton
3. The lamp should at least keep 0.2m distance from the inflammable material, make sure the mounted ceiling is 2cm distance, and the lamp cannot be entirely installed inside the ceiling, or the heat source wall. Separate the low voltage and high voltage wire.
4. The line of the lamp can go through from the hole and fixed with cable clip
5. Make sure the power line of the lamp have enough length, free from tension and tangential force. Don't pull the link line strongly. Don't let the link line tie a knot. Distinct the output link line. Don't mix with other lamps.
6. When the lamps are well installed, connect the plugs of lamp and switching power supply
7. Connect the wire of switching power supply with mains supply, usually the Brown (or black) is live line, blue is null line.
8. Use the led driver, not mix with other lamps
9. Don't tear off the nameplate of the led driver.
Package

Name	Size	Qty	Weight	Description
Inner Box	L1260*W85*H360mm	2pcs	Net. W.	3.5KG 2pcs/Inner box
Outer Box	L1280*W290*H385mm	6pcs	Gross. W.	17KG 4pcs/Carton

Transportation and storage requirements
1. Stick the main mark and side mark on the carton, also stick the label on the lamp.
2. Pack it well, handle it gently, write product name and quantity on the carton.
3. Storage requirements: damp-proof, dust-proof, prevent pressing and falling down, avoid the sunlight shine directly and the moisture condensation.
4. Storage life: 1 Year. Recheck the electric properties of lamp when it is over the validity.
