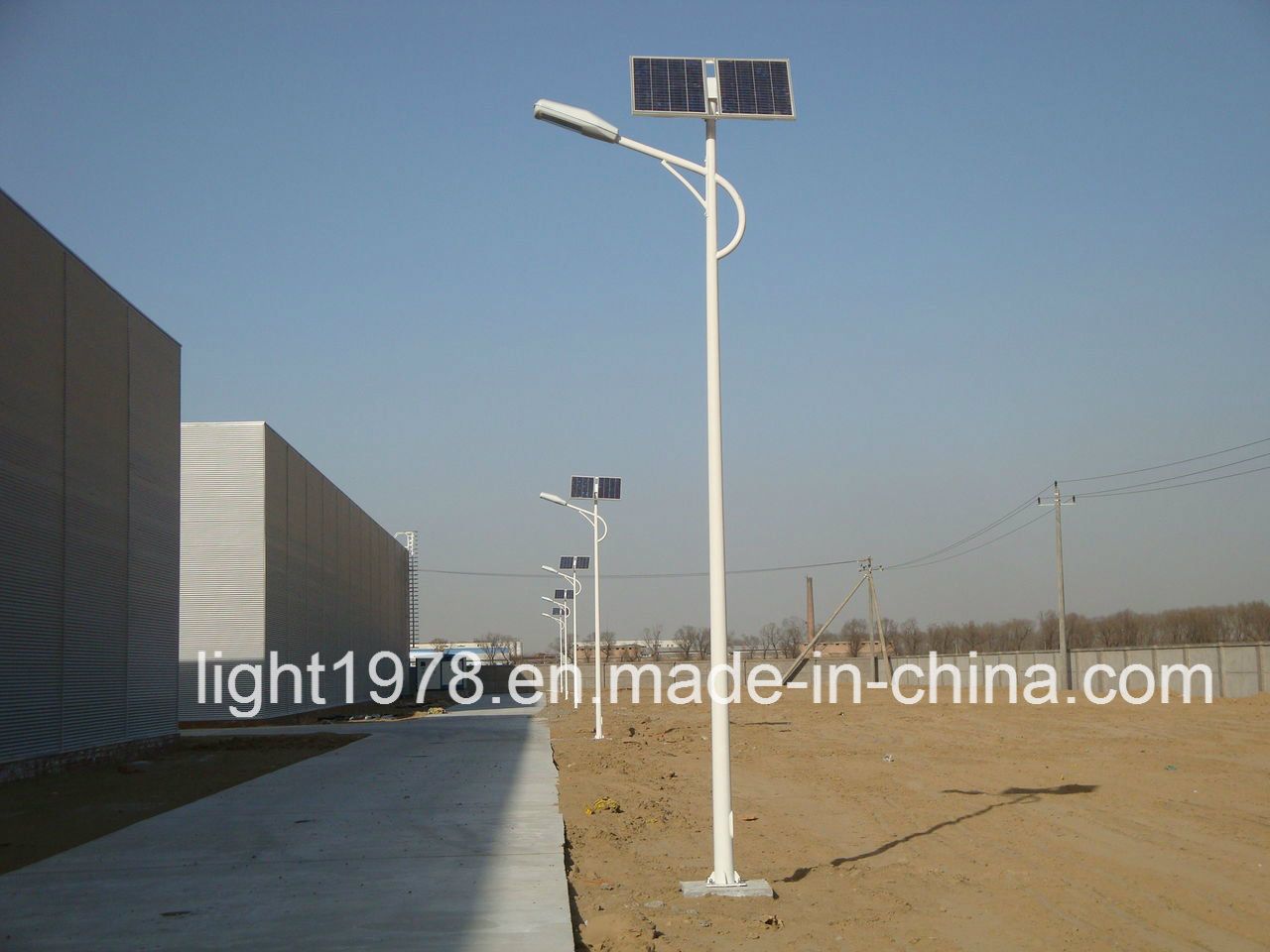

60W LED Solar Outdoor Light, Economic Design, Full +Half Power 12 Hrs
Model: 6-8-10M-S3
Solar street lights Technical Parameters
1 Height of light source to ground: 6 to 8M
2 Applicable light source: 60W LED, Brightness: 7200LM.
3 PV Module: 120W*1PC, High efficient monocrystalline or polycrystalline silicon
4 Storage cell: 120Ah*1PC, fully sealed, maintenance free Gelled/lead acid cell
5 Control system: 10A/24V, automatic control by microcomputer
6 Lighting hours: 11-12hours/Day*3-4 days no sun days
7 Material of the mast: Plastic coated on hot-dip galvanized steel pipe
8 Ambient temperature: -20C----60C
This model 60W LED Solar Outdoor Light, Design based on solar radiation 5.0kwh,
Getting more information on 60W LED Solar Outdoor Light, mail or call us please.
Specification for 60W LED Solar Outdoor Light |
Part Name and Lifespan | Technical Specification |
Solar Panel: Lifespan:20-25 years | 120W*1PC Polycrystalline. High Efficiency. A-class Adding Aluminum Frame, Tempered Glass. |
Gelled Battery Lifespan:5-8 years | 120Ah/12V*1PC, Gelled battery, Sealed Type. Deep cycle. Maintenance Free |
Intelligent Solar Controller Lifespan:5-10 years | 10A/24V,IP65. Automatic Light and Time Control Over-charging/discharging Protection Reverse-connection Protection Switch on Automatically with Light Sensor; Switch off after designed Hours later.(11-12 Hrs) |
Light source: High Power LED Lifespan: More than 50000-100000Hrs | 60WLED, White Color, Cree Chip, 7200LM,6500K,IP65,High Power, High Brightness. |
Lamp Housing: Lifespan: More than 20 years | Die-casted Aluminum, IP65 High transmittance & Density toughened glass, |
Battery Box: | Engineer Plastic, bury under gorund. |
GI Pole System: Lifespan: More than 20 years | 6-8M Height, tapered Pole, Steel, Hot-Dip Galvanized. Plastic Coated, Rust Proof, With Arm, Bracket, Flange, Fittings, Cable, Etc Resistant to Wind: ≥150KM/H |
Solar Lighting System Working Principle:1 | LED solar street light relies on solar energy, which is clean, endless and environment-friendly. |
2 | The system is mainly composed of solar panel, light source, controller and free-maintenance battery. |
3 | In daytime, when there is sunshine, the solar panel can convert the solar energy to electric energy and store it in the battery. At night or rainy or cloud condition, the battery shall supply power for normal lighting. |
4 | The controller can judge the brightness of daylight and automatically switch on the light. The whole process is operating in completely automatic mode, without human action. |
BR SOLAR Marked Main & Best Competitive Products:A.) | 10W-120W Solar LED Street Lights |
B.) | 10W-240W LED Street Lights and LED Fixture |
C.) | 5W-30W Solar Garden Lights and Solar Landscape Lights |
D.) | Solar Panel And Solar Modules Mono and Poly 5W - 300W |
E.) | Solar Battery 24Ah/12V~250Ah/12V&300AH/2V-3000AH/2V |
F.) | 5W-5000W Solar Home System And Solar Home Lighting Kits |
Yangzhou Bright Solar Solutions Co., Ltd., Established in 1997, an ISO 9001: 2000, TUV, IEC, CE&EN, RoHS, SONCAP, CCPIT, SASO and CCC approved manufacturer.
Overseas Exploration and Popularity:
We had successfully sold our solar street lights and solar panels to overseas markets more than 50 Countries such as the USA, Canada, UK, Greece, France, Italy, Australia, Turkey, Jordan, Saudi Arabia, Iraq, UAE, India, Philippines, Pakistan, Cambodia, Taiwan, Nigeria, Ghana, Congo, South Africa, Mexico, Haiti, etc.
For the Future:
With advanced manufacturing & testing equipments, our factories are growing better and better. We hope to cooperate with more partners and distributors to develop more business to create prosperous win-win partnerships. OEM is available. Welcome your inquiry mail or call.
Main Products:
Solar Street Lights & Solar Street Lighting & LED Solar Street Lighting;
Solar Garden Lights & Solar Landscape Lights;
Solar Panel & Solar Modules.
Small Solar Home System & Solar Home Kits.
Attention: We are good at
1: Designing, producing, installing solar 10W-120W Solar LED street lights
2: Designing, producing 10W-240W LED Lamp for outdoor street and road using.
3: Producing solar panel below 310W
4. Solar Battery 7Ah-300Ah/12V
5. Solar Home Kits 3W-5000W System
OEM Service for solar lighting and PV panel is available.
Welcome your inquiry of solar outdoor lights and solar home lights.
