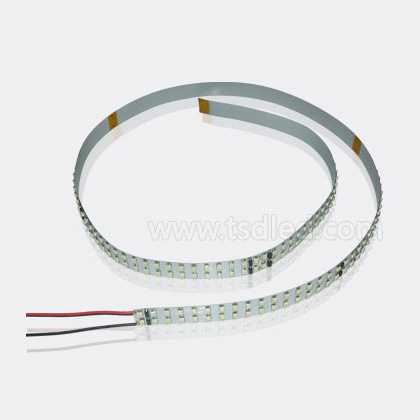

Features of LED Strip Light:
1. Epistar 3528 SMD LED light source.
2. No UV, no flickering, good for eyes.
3.72LEDs/Cuttable(300mm), 288LEDs/1200mm.
4. High energy efficiency, 1400LM output/1200mm.
5. Long life, more the 50, 000 hours, in the normal use of more than five years.
6. Light without delay, faster response time.
7. Maintenance free, very simple to install at any surfaces.
8. Working Voltage: AC120V.
9. Power Dissipation: 9Watt/1200mm.
10. Dimension: 1200mm(L)× 16mm(W)× 2mm(H).
11. Colour Temperature: 2800K-3200K, 4000K-4500K, 6000K-6500K is optional.
12. Plug and Play, no drivers or special connections needed.
13. Easy to apply due to sticky tape on the back of the LED strip.
Remarks:
The data above is under the test condition of Ta =25 degree, AC 120V, RH 85%.
Use Manual:
1. Please read the specification first to make sure the using condition is fit.
2. Before use it, we suggest that it's better to install it on Aluminum heat sink.
3. Indoor or Outdoor(Waterproof Type) use.
Application:
Outdoor: Decks, facades, gardens, patios, stairs, architectural/hospitality lighting, landscape lighting, lighting extended expanses.
Indoor: Kitchens, restaurants, hotels, bars, cafeterias, bathrooms, under cabinet lighting kitchen, bathroom, laundry, utility room.
Trade Terms
1. Payment: T/T in advance (Western Union is welcomed)
2. Production lead time: 10-15 days
3. Sample can be delivered in 5-7 days
4. Shipping freight are quoted under your requests
5. Shipped: DHL, FedEx, UPS, TNT
6. Discounts are offered based on order quantities
Our service
1. Your inquiry related to our products or prices will be replied in 24hrs.
2. Well-trained and experienced staffs to answer all your enquires in fluent English
3. OEM&ODM, any your customized lightings we can help you to design and put into product.
4. Distributorship are offered for your unique design and some our current models
5. Protection of your sales area, ideas of design and all your private information
LED Type
|
TOP SMD 3528 LED
|
Certification
|
CE & RoHS
|
Size(mm)
|
1200x16x2
|
Part Number
|
LED Qty.
|
LED Color
|
WL/CCT
|
Flux(±5%)
|
Max Power
|
Lifetime
|
TL-120FSN3528CW288
|
288PCS
|
Cool White
|
6000-6500K
|
1200lm
|
9W
|
50,000h
|
TL-120FSN3528NW288
|
288PCS
|
Natural White
|
4000-4500K
|
1200lm
|
TL-120FSN3528WW288
|
288PCS
|
Warm White
|
2800-3300K
|
1400lm
|
Shenzhen Tianshengda Optoelectronic Co., Ltd is professional LED lighting manufacturer and SGS Audited Supplier since 2004. Our products are mainly exported to Europe & North America with competitive price and high quality. Our clients includes IBM, Jaguar-Land Rover and Topshop etc. The OEM or ODM is welcome.
High-grade materials and state-of-the-art equipment such as auto soldering and SMT assembly lines are utilized throughout the manufacturing process of each of our products. More than 300 kinds of products, sales network in over 100 countries and regions. The CE, RoHS, SGS certificate of the products make sure the end user using safely.
Our products show extremely long life span and stability in the function. We guarantee over 50, 000 hours for the life. The average light output after 10, 000 hours continuously lighting will be 85% comparing the original brightness.
The majority of the TSD products appear waterproof state. The purpose to motivate the idea is to make the products are flexibly designed and installed in humid and more atrocious environments. Purely due to a quality issue, all damage or destroy of the products will be borne by TSD during its warranty time 2 years.
Our excellent international sales and after-sales team is at your service and will take good care of you, our valued customer.
