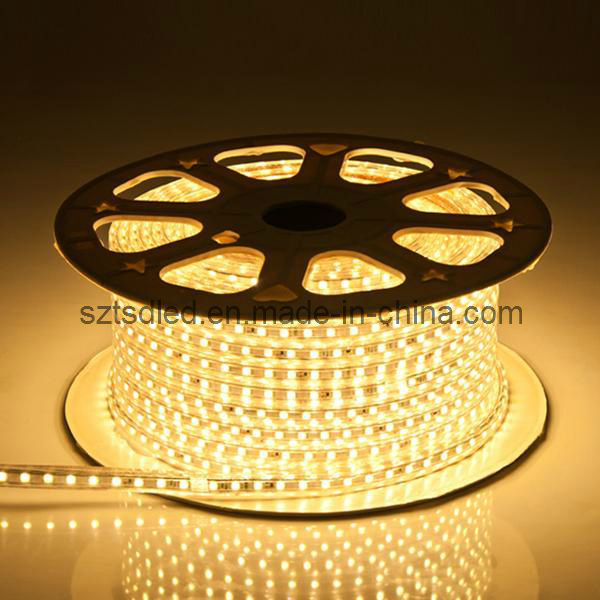

Features of Flexible LED Strip Light
1. Can be run in 220V or 110V without extra adaptor or power source.
2. Can be max run 50 meter and also be cut or connected in every meter.
3. PVC tube provides good waterproof and can be used both indoor & outdoor.
4.5050 LED provide greater brightness compared to 3mm LED used in rope light.
5. Solid-state for high vibration resistance and good flexibility for any shape.
6. Independent LED, one LED broken will not affect next LEDs.
Specifications of LED Light Strip 220V
1. LED type: SMD5050
2. Dimension: L50000*W16*H7mm
3. Working voltage: AC220 V
4. Color range: Red, Yellow, Blue, Green, Cool White, Natural White, Warm white, RGB optiontal
5. Viewing angle: 120 degrees
6. Every 50cm(110V) or 100cm(220V) is cuttable
7. Maintenance free, easy installation
8. Approval: CE, RoHS, FCC
9. Life span: 50000hours
10. IP Rating: IP65
11. PCB Color: White colour.
12. Solid-state high shock/vibration resistance.
13.60LEDs/Meter, 50M/Reel
14. Power Dissipation: 9.9W/Meter
Applications of 5050 LED Strip
1. Architectural decorative lighting
2. Archway, canopy and bridge edge lighting
3. Amusement park, theater and aircraft cabin mood lighting
4. Emergency hallway lighting
5. Auditorium walkway lighting
6. Stairway accent lighting
7. Concealed lighting
8. Backlighting for signage letters
9. Channel letter lighting
10. Emergency exit path lighting
11. Cove lighting
Trade Terms
1. Payment: T/T in advance (Western Union or PAYPAL are welcomed)
2. Production lead time 1000M: 5-7days, 1000~5000M: 7-10days, above 5000M 10-15days.
3. Sample can be delivered in 3days
4. Shipping freight are quoted under your requests
5. Shipping port: Shenzhen, Mainland China
6. Discounts are offered based on order quantities
7. MOQ: 500M
Our service
1. Your inquiry related to our products or prices will be replied in 24hrs.
2. Well-trained and experienced staffs to answer all your enquires in fluent English
3. OEM&ODM, any your customized lightings we can help you to design and put into product.
4. Distributoership are offered for your unique design and some our current models
5. Protection of your sales area, ideas of design and all your private information
LED Type
|
TOP SMD 5050 LED
|
Certification
|
CE & RoHS
|
Size(mm)
|
1000x16x7
|
Part Number
|
LED Qty.
|
LED Color
|
WL/CCT
|
Flux(±5%)
|
Max Power
|
Lifetime
|
TD-220FS5050CW60
|
60PCS
|
Pure White
|
6000-6500K
|
1200lm
|
9.9W
|
50,000h
|
TD-220FS5050NW60
|
60PCS
|
Natural White
|
4000-4500K
|
1200lm
|
TD-220FS5050WW60
|
60PCS
|
Warm White
|
2800-3200K
|
1200lm
|
TD-220FS5050R60
|
60PCS
|
Red
|
620-625nm
|
360lm
|
TD-220FS5050G60
|
60PCS
|
Green
|
520-525nm
|
1000lm
|
TD-220FS5050B60
|
60PCS
|
Blue
|
465-470nm
|
350lm
|
TD-220FS5050Y60
|
60PCS
|
Yellow
|
585-590nm
|
360lm
|
Shenzhen Tianshengda Optoelectronic Co., Ltd is professional LED lighting manufacturer and SGS Audited Supplier since 2004. Our products are mainly exported to Europe & North America with competitive price and high quality. Our clients includes IBM, Jaguar-Land Rover and Topshop etc. The OEM or ODM is welcome.
High-grade materials and state-of-the-art equipment such as auto soldering and SMT assembly lines are utilized throughout the manufacturing process of each of our products. More than 300 kinds of products, sales network in over 100 countries and regions. The CE, RoHS, SGS certificate of the products make sure the end user using safely.
Our products show extremely long life span and stability in the function. We guarantee over 50, 000 hours for the life. The average light output after 10, 000 hours continuously lighting will be 85% comparing the original brightness.
The majority of the TSD products appear waterproof state. The purpose to motivate the idea is to make the products are flexibly designed and installed in humid and more atrocious environments. Purely due to a quality issue, all damage or destroy of the products will be borne by TSD during its warranty time 2 years.
Our excellent international sales and after-sales team is at your service and will take good care of you, our valued customer.
