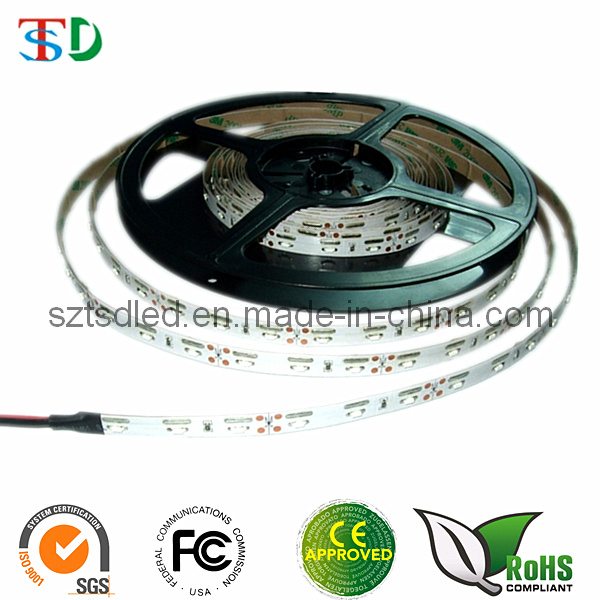

Features for 335 LED Strip Light
1. Red/Green/Blue/Yellow/Pure White/Warm White available.
2.3LEDs/cuttable, 60LEDs/meter, 5meters/Roll.
3. With 3M adhesive tape back, easy for installation.
4. Input Voltage: DC12V, 4.8W/Meter.
5. Beam angle: 120 degree
6.3M adhesive tape at the backside
Note of 335 LED Strip
1. The green LED strip light is one kind of most remarkable products in all our Flexible LED Strips
2. Its stable color is well suited for lighting confined spaces in need of a touch of light and can be creatively used in interiors
3. Because flexible LED strip can be cut, Flexible LED Strip Lighting is well convenient installed and used in display cases
4. These strips in kitchen cabinet, under cabinet, any home lighting and confined spaces needed adding light, such as coves, valances, doorways, other hard-to-light nooks and crannies, which are our best-choose. They even can be decorated in edge-lit glass.
Applications for Flexible 335 LED Strip
1. Architectural decorative lighting
2. Edge lighting
3. Amusement park, theater and mood lighting
4. Emergency hallway lighting
5. Auditorium walkway lighting
6. Stairway accent lighting
7. Concealed lighting
8. Backlighting for signage letters
9. Channel letter lighting
10. Emergency exit path lighting
11. Cove lighting
|
LED Type |
SMD 335 LED |
Certification |
CE & RoHS |
Size(MM) |
5000 × 10 |
|
Part Number |
LED Qty. |
LED Color |
WL(nm)/CCT(K) |
Flux(± 5%) |
Max Power |
Lifetime |
|
TL-FSN335W60 |
300PCS |
Pure White |
6000-6500K |
1800lm |
24w |
50, 000h |
|
TL-FSN335WW60 |
300PCS |
Warm White |
3000-3300K |
1650lm |
50, 000h |
|
TL-FSN335R60 |
300PCS |
Red |
620-625nm |
600lm |
50, 000h |
|
TL-FSN335G60 |
300PCS |
Green |
520-525nm |
1500lm |
50, 000h |
|
TL-FSN335B60 |
300PCS |
Blue |
465-470nm |
300lm |
50, 000h |
|
TL-FSN335Y60 |
300PCS |
Yellow |
585-590nm |
600lm |
50, 000h |
Shenzhen Tianshengda Optoelectronic Co., Ltd is professional LED lighting manufacturer and SGS Audited Supplier since 2004. Our products are mainly exported to Europe & North America with competitive price and high quality. Our clients includes IBM, Jaguar-Land Rover and Topshop etc. The OEM or ODM is welcome.
High-grade materials and state-of-the-art equipment such as auto soldering and SMT assembly lines are utilized throughout the manufacturing process of each of our products. More than 300 kinds of products, sales network in over 100 countries and regions. The CE, RoHS, SGS certificate of the products make sure the end user using safely.
Our products show extremely long life span and stability in the function. We guarantee over 50, 000 hours for the life. The average light output after 10, 000 hours continuously lighting will be 85% comparing the original brightness.
The majority of the TSD products appear waterproof state. The purpose to motivate the idea is to make the products are flexibly designed and installed in humid and more atrocious environments. Purely due to a quality issue, all damage or destroy of the products will be borne by TSD during its warranty time 2 years.
Our excellent international sales and after-sales team is at your service and will take good care of you, our valued customer.
