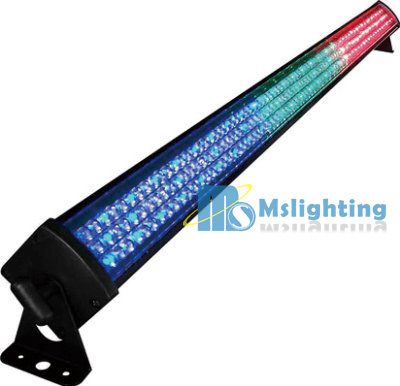

DMX LED RGB Bar, LED Stage Light, LED disco Light, LED RGB Bar, DMX LED Light,
SPECIFICATION:
Material: plastic DOS shell
Input power: AC 100-240V/50-60Hz (power supply switch, 90V-240V change auto)
Max. Power consumption: 50W
Fuse: T2A
Light Source10LEDs: 252PCS (Red/108PCS, Blue/72PCS, Green/72PCS)
Color Range: 16.7 million additive RGB colors; continuously variable intensity (256*256*256=16777216)
Life Time: 60, 000~100, 000hours
Operating Temperature: -20 ~ +45
Operating Humidity: 0-95%
Working Environment: indoor
House size: 1070*65*86mm
N. W: 2.3kg
Beam angle: 35 beam angle of each LED
7 beam angle of each LED (Option)
Thermal:
Maximum ambient temperature: 40°
Maximum housing temperature: 60°
Control:
Protocol: DMX 512
Channels: 13CH
Operation modes: Master/slave, stand alone, sound.
Data in/out: locking 3-pin XLR.
DMX Channels
CH 1: Function selecting
0-10: Dimmer (CH2-CH 13 Dimmer valid)
11-51: Strobe (CH2-CH 13 Dimmer valid)
52-91: Light in and light out (CH2-CH 13 Dimmer invalid)
92-131: Auto color change (CH2-CH 13 Dimmer invalid)
132-147: Chase 1
148-164: Chase 2
165-181: Chase 3
182-198: Chase 4
199-215: Chase 5
216-232: Chase 6
233-255: Chase 1 - Chase 6
CH 2: All Red dimmer
CH 3: All Green dimmer
CH 4: All Blue dimmer
CH 5-CH 13: 0-255 are the adjustable brightness from 1 to segment 3 in red, green, and blue color.
MS Lighting is a professional stage lighting manufactory in China, Our products are LED Light, moving head light(spot/wash, 150W-1200W), DMX scannner, effect lights, disco lights, laser etc.
Our products are very popular by professional from all walks of life; It makes the perfect stage effect with the others stage lighting products. We have excellent quality products and the best after-sales service.
The aim of our work is your satisfaction
This is the good factory that your first choice.
