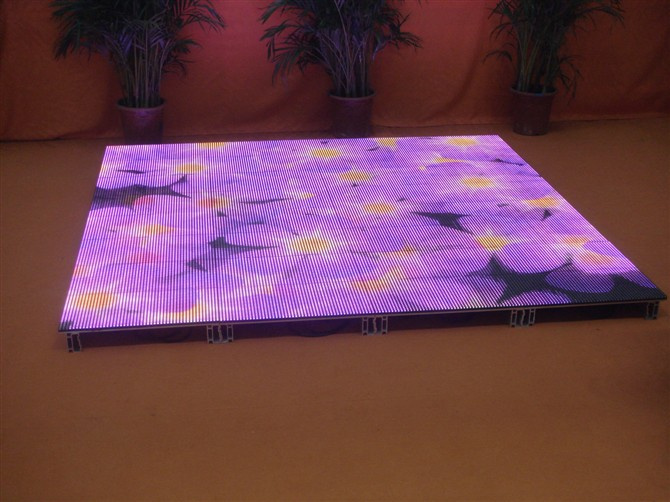

LED floor display P6.4 cabinet size: 512mm *512mm
Cabinet specification:
NO. ItemParameter
1ModelP6.4 Outdoor display
2 Pixel pitch6.4mm
3Pixel configuration1R1G1B
4LED typeSMD3535
5Module size256x256mm
6Panel Depth118mm
7Module resolution40x40
8Panel resolution80x80
9Panel size512x512mm
10Density24414 dots/
11Brightness5000 NIT
12Scan method1/5
13Best view distance≥ 5m
14Max. Power consumption 300W/panel
15Ave. Power consumption 180W/panel
16Weight12Kg
17Grey scale4096 level
18Colors6.87 billion
19Refresh rate≥ 480Hz
20View angleHorizontal: 140° , Vertical: 140°
21Color temperature6500K
22Frame frequency≥ 60Hz
23Out of control pixel rate<1/10000
24MTBF>5000 hours
25Lifespan50000 hours
26Control modeSynchronous display with control PC by DVI
27Working voltageAC 100/200v 50-60Hz
28Control distanceEthernet cable: 100m, Multi-mode optical fiber: 500m, Singel-mode optical fiber: 20km
29Operation temperature
-30 to +60
30Operation Humdity10% to 95%
31Protection levelIP65 front, IP54 rear
|
LED specification: |
|
NO. |
Color |
Chip brand |
Wavelength |
View Angle |
Place of origin |
|
1 |
Red |
Epistar |
625nm |
140°/140° |
Taiwan |
|
2 |
Green |
Epistar |
520nm |
140°/140° |
Taiwan |
|
3 |
Blue |
Epistar |
467nm |
140°/140° |
Taiwan |
|
Cabinet specification: |
|
NO. |
Item |
Parameter |
|
1 |
Model |
P6.4 Outdoor display |
|
2 |
Pixel pitch |
6.4mm |
|
3 |
Pixel configuration |
1R1G1B |
|
4 |
LED type |
SMD3535 |
|
5 |
Module size |
256x256mm |
|
6 |
Panel Depth |
118mm |
|
7 |
Module resolution |
40x40 |
|
8 |
Panel resolution |
80x80 |
|
9 |
Panel size |
512x512mm |
|
10 |
Density |
24414 dots per square meter |
|
11 |
Brightness |
5000 NIT |
|
12 |
Scan method |
1/5 |
|
13 |
Best view distance |
≥5m |
|
14 |
Max. power consumption |
300W/panel |
|
15 |
Ave. power consumption |
180W/panel |
|
16 |
Weight |
12Kg |
|
17 |
Grey scale |
4096 level |
|
18 |
Colors |
6.87 billion |
|
19 |
Refresh rate |
≥480Hz |
|
20 |
View angle |
Horizontal: 140°, Vertical: 140° |
|
21 |
Color temperature |
6500K |
|
22 |
Frame frequency |
≥60Hz |
|
23 |
Out of control pixel rate |
<1/10000 |
|
24 |
MTBF |
>5000 hours |
|
25 |
Lifespan |
50000 hours |
|
26 |
Control mode |
Synchronous display with control PC by DVI |
|
27 |
Working voltage |
AC 100/200v 50-60Hz |
|
28 |
Control distance |
Ethernet cable: 100m, Multi-mode optical fiber: 500m, Singel-mode optical fiber: 20km |
|
29 |
Operation temperature |
|
|
30 |
Operation Humdity |
10% to 95% |
|
31 |
Protection level |
IP65 front, IP54 rear |
Shenzhen HTS Optoelectronic Technology Co., Ltd is a Shenzhen-located high-Tech enterprise which specializes in the R&D, manufacturing, salesand serviceof LED display and LED lighting products. Thanksto the human-base management policy, advanced production machines and test equipments as well as rich options of raw material resource, HTS has developed a professionalplatform to become a modern enterprise. According to the demand of the market HTS has developed a Full product range through industry-chained opetatio model and HTS aims to rank. In the front line of the LEDdisplay industry. Of professional designers and software and hardware systems personnel, creative and unique copy talent.
HTS is located in Dalang, Longhua, Baoan District, which enjoys a group of influential experts in LED industry, a professional R&D team and highly-skilled manufacturing staff. It occupies more than 6000 square-meter free-dust and static-proof production area which covers several automated assembling lines, many advanced production machines and optimized testing equipments. Aim to the high level market, HTS insists developing MID and high-end products, serves the customers as the center of our work, strives for survival on the basis of quality, employs the managing idea of searching development by integrity, we manage to win the customers and the market by our sincerest heart, most advanced technology, best-quality products and most satisfactory service.
