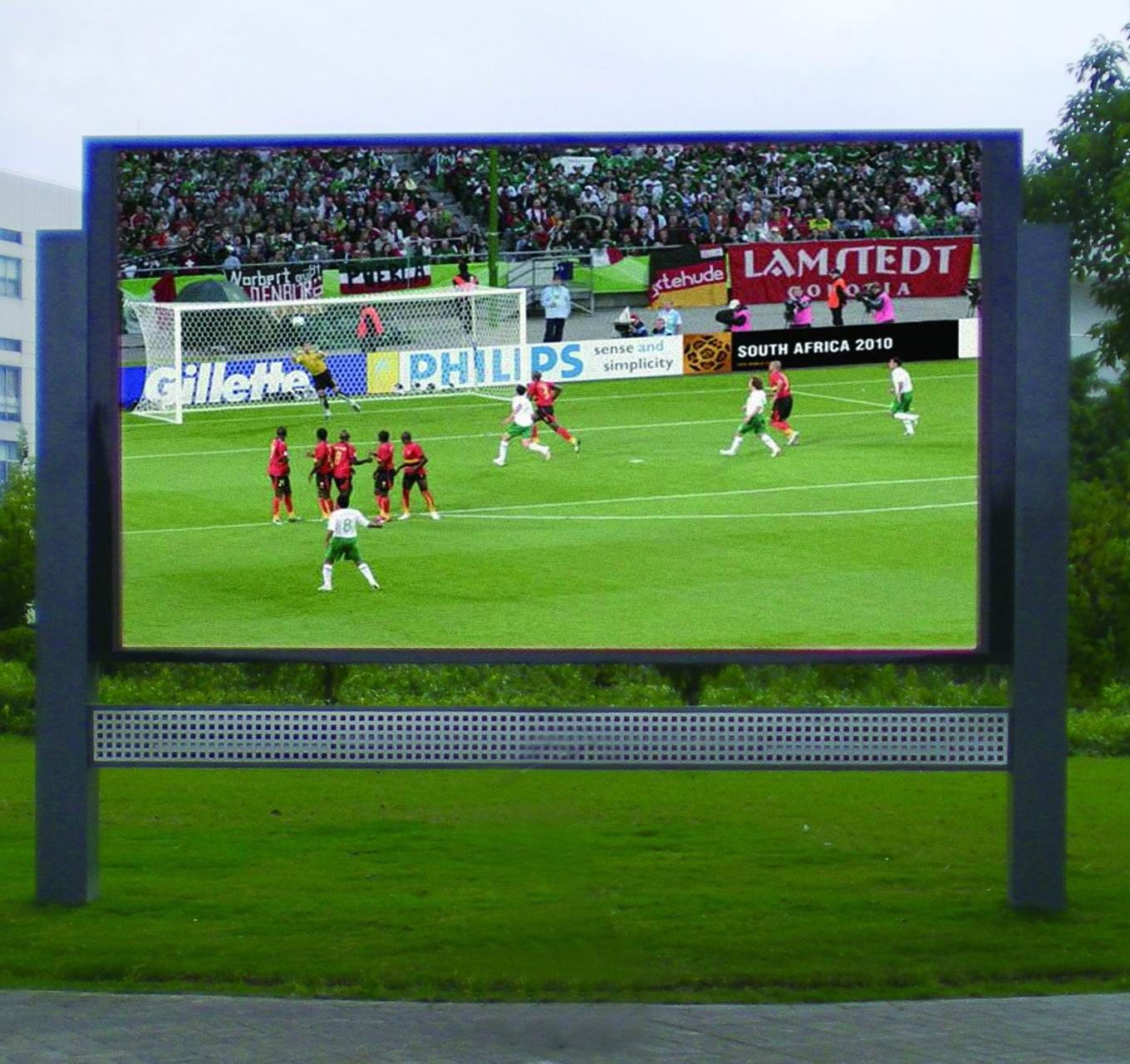

Outdoor Project DIP LED Display Screen
P10
Product description
| NO. | Item | Parameter |
| 1 | Model | P10 |
| 2 | Pixel pitch | 10mm |
| 3 | Pixel configuration | 1R1G1B |
| 4 | LED type | DIP346 |
| 5 | Module size | 160*160mm |
| 6 | Module resolution | 16*16 |
| 7 | Cabinet resolution | 128*96 |
| 8 | Cabinet size | 960*960mmx140 |
| 9 | Density | 10000dots/m2 |
| 10 | Brightness | ≥6800 NIT |
| 11 | Scan method | 1/4 scan |
| 12 | Best view distance | ≥8m |
| 13 | Max. power consumption | 750W/m2 |
| 14 | Ave. power consumption | 350W/m2 |
| 15 | Cabinet Weight | 55kg/m2 |
| 16 | Grey scale | 4096 level |
| 17 | Colors | 6.87 billion |
| 18 | Refresh rate | ≥960Hz |
| 19 | View angle | Horizontal: 90° - 130°, Elevation: 30° - 45°, Depression: 10° - 20° |
| 20 | Color temperature | 6500K |
| 21 | Frame frequency | ≥60Hz |
| 22 | Out of control pixel rate | <1/10000 |
| 23 | MTBF | >5000 hours |
| 24 | Lifespan | 100000 hours |
| 25 | Control mode | Synchronous display with control PC by DVI |
| 26 | Working voltage | AC 100/200v 50-60Hz |
| 27 | Control distance | Ethernet cable: 100m, Multi-mode optical fiber: 500m, Singel-mode optical fiber: 20km |
| 28 | Operation temperature | -20 to +40 |
| 29 | Operation Humidity | 10% to 80% |
| 30 | Protection level | IP65 |
Application: Stage Performance, Advertising, Shopping Guide
System Operating Platform: Win XP/Win7 /Win8/ Win2000
Certification: CE, ROHS, UL, CCC, ETL
Water-proof , for indoor and outdoor using
Features:
1. Normal cabinet, can be fast installed.
2. Waterproof testing for each cabinet before the delivery.
3. Locating beam and connection plate make the screen fast to be installed.
4. Independent back cover and lock, not only moisture-proof and dustproof, but easy to debugging and repair.
5. Brightness is more than 6000NIT, suitable for outdoor environment.
6. With good quality which shows clear videos and pictures even thought on sunny days. Can be used for outdoor advertising, stadium, and all kinds of square.
Packing reference:(Carton , wooden case , flight case)
