Outdoor Project DIP LED Display Screen
P16
Product description
| Item | Parameter |
| Model | P16 |
| Pixel pitch | 16mm |
| Pixel configuration | 1R1G1B |
| LED type | DIP346 |
| Module size | 256*256mm |
| Module resolution | 16*16 |
| Cabinet resolution | 64*48 |
| Cabinet size | 1024*768mmx130mm |
| Density | 3906dots/m2 |
| Brightness | ≥7500 NIT |
| Scan method | Static scan |
| Best view distance | ≥12m |
| Max. power consumption | 1000W/m2 |
| Ave. power consumption | 500W/m2 |
| Grey scale | 4096 level |
| Colors | 6.87 trillion |
| Refresh rate | ≥480Hz |
| View angle | Horizontal: 90° - 130°, Elevation: 30° - 45°, Depression: 10° - 20° |
| Color temperature | 6500K |
| Frame frequency | ≥60Hz |
| Out of control pixel rate | <1/10000 |
| MTBF | >5000 hours |
| Lifespan | 100000 hours |
| Control mode | Synchronous display with control PC by DVI |
| Working voltage | AC 100/200v 50-60Hz |
| Control distance | Ethernet cable: 100m, Multi-mode optical fiber: 500m, Singel-mode optical fiber: 20km |
| Operation temperature | -20 to +40 |
| Operation Humidity | 10% to 80% |
| Protection level | IP65 |
Application: Stage Performance, Advertising, Shopping Guide
System Operating Platform: Win XP/Win7 /Win8/ Win2000
Certification: CE, ROHS, UL, CCC, ETL
Water-proof , for indoor and outdoor using
Features:
1. Normal cabinet, can be fast installed.
2. Waterproof testing for each cabinet before the delivery.
3. Locating beam and connection plate make the screen fast to be installed.
4. Independent back cover and lock, not only moisture-proof and dustproof, but easy to debugging and repair.
5. Brightness is more than 6000NIT, suitable for outdoor environment.

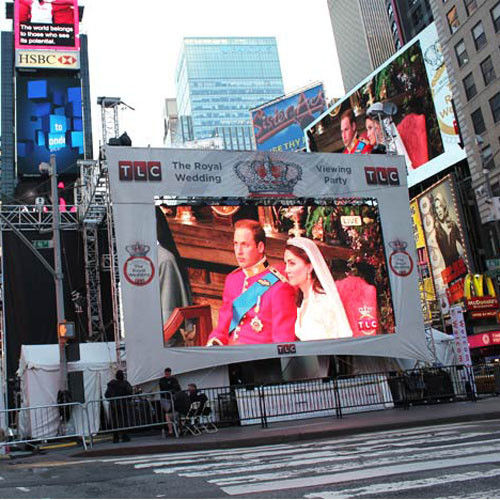

6. With good quality which shows clear videos and pictures even thought on sunny days. Can be used for outdoor advertising, stadium, and all kinds of square.
Packing reference:(Carton , wooden case , flight case)
Shenzhen HTS Optoelectronic Technology Co., Ltd is a Shenzhen-located high-Tech enterprise which specializes in the R&D, manufacturing, salesand serviceof LED display and LED lighting products. Thanksto the human-base management policy, advanced production machines and test equipments as well as rich options of raw material resource, HTS has developed a professionalplatform to become a modern enterprise. According to the demand of the market HTS has developed a Full product range through industry-chained opetatio model and HTS aims to rank. In the front line of the LEDdisplay industry. Of professional designers and software and hardware systems personnel, creative and unique copy talent.
HTS is located in Dalang, Longhua, Baoan District, which enjoys a group of influential experts in LED industry, a professional R&D team and highly-skilled manufacturing staff. It occupies more than 6000 square-meter free-dust and static-proof production area which covers several automated assembling lines, many advanced production machines and optimized testing equipments. Aim to the high level market, HTS insists developing MID and high-end products, serves the customers as the center of our work, strives for survival on the basis of quality, employs the managing idea of searching development by integrity, we manage to win the customers and the market by our sincerest heart, most advanced technology, best-quality products and most satisfactory service.
