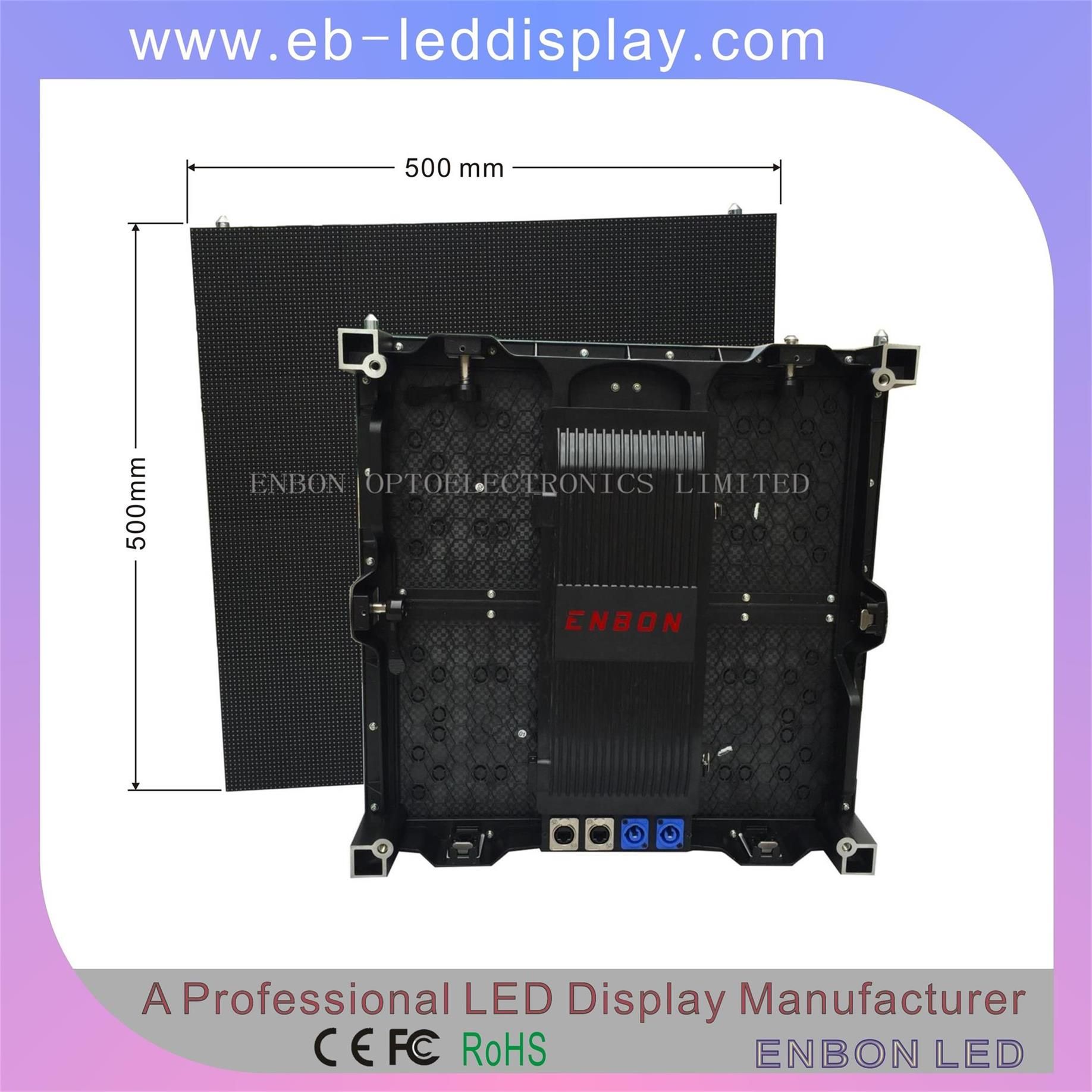

500*500mm ultra-thin P4 rental LED Display Panel with die-cast cabinet is popular in the market. We are promoting this . Both the price and quality is very good. Welcome to contact us !
Other Features:
1) It is extremely easy to calculate the area of LED screen because it is consist of 500*500mm cabinet
2) 16 bit color,65,536 gray scale,refresh rate over 2000HZ/S so the video or images on the LED screen are very vivid and fresh.People who see it will get shocked by this amazing viewing experience.
3) The appearance is very elegant,it looks very high end.Quality is very stable
4) It is die-casting aluminum cabinet, very strong and precision is very high,tolerance can be controlled in 0.2mm so the surface is very smooth, almost no gap between adjance cabinets
5) The side locks is spring locks, this is unique among all die-casting aluminum cabinets, especially popular in European market and North American market
| Model | P3.91 LED diaplay panel for rental indoor |
| Pixel pitch | 3.91mm |
| Pixel density | 65,536 dots /sqm |
| Module size(W*H) | 250 mm(width)*250 mm(height) |
| Module pixels(W*H) | 64 dots *64 dots |
| Pixel configuration | 1Red 1Green 1Blue |
| Drive mode | constant current driving 1/16 scan |
| LED lamp type | SMD2121 |
| Cabinet size(W*H*D) | 500mm*500mm |
| Color scale | 65,536 degree |
| View angle(H/V) | 140/120 degree |
| Brightness (White balance) | about 1300cd/sqm. |
| Power consumption(one cabinet) | Max:200W / cabinet , Average: 80W / cabinet |
| Inputting voltage | 90-264VAC 47--63Hz |
| Operating temperature | -30°C----+60°C |
| Operating humidity | 10%-95%RH |
| Life time | ≥100,000hours |
| MTBF | 5,000 hours |
| Whole Display Flatness | ≤0.5mm Juncture |
| Frame frequency | 25-60 Hz/s |
| Refresh rate | ≥2000Hz /s |
| Control distance | 100m (without repeater), single mode fiber:20km, multi mode fiber: 500m |
| LED control system | LINSN,Dbstar,Nova-star,ZDEC,Colorlight is selectable |
| Operating system | Windows 2000 / Windows Xp / Windows 7 / windows 8 /8.1 / windows 10 |
| Protections for outdoor display | IP31 |
| Maintenance way | Rear Access |
| Accepting signal with video processor | PAL/NTSC/SECAM,S-Video;VGA;RGB;Composite Video;SDI |
ENBON optoelectronics Limited is a High-tech enterprise specialized in R&D, manufacturing and sales of outdoor & indoor LED display. It was established in Jan 15, 2010 covering an area of 1 building with around 150 employees. By bringing in and gathering many experts from this industry, we can keep pace with the development of new technology and are able to provide creative products to meet different requests of our clients'. Right now, Enbon wins good reputation for its various ultra-thin and super-light rental outdoor and indoor LED screens, LED strip/mesh curtains, LED dance floor etc.
All our products have passed CE, FCC and RoHS certificates. 70% of our products are for export. We are an LED company you can count on for good quality and competitive pricing. Besides, you can also expect excellent pre-sale, selling and after-sale services here, which contains professional consultation, free training, free drawings, installation and 2 years warranty. We will inspect our products installed in domestic market periodically.
Enbon is equiped with advanced machines such as Automated Pick & Place machine, High Speed SMT, Wave Peak Soldering machine, Reflow Soldering Machine, High & low Temperature Aging room, Vibration tester, Waterproof tester, Anti-static & dust-free workshop etc. Modern automatic equipment together with our innovative engineers, dedicated workers and experienced sales and services team, we're the right supplier you can trust for good solutions for all your LED display projects.
Contact us for an offer today! Our team will respond in 1 working day. We look forward to be your good partner and grow together!
