Home LED Light Products Cheap Price P5 Indoor Full Color LED Display

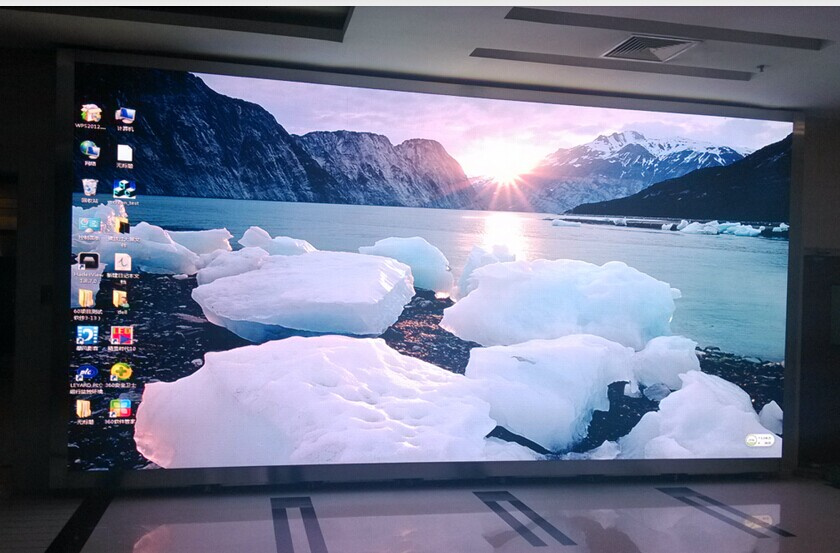

Cheap Price P5 Indoor Full Color LED Display

Cheap Price P5 Indoor Full Color LED Display
Price: Negotiable/Square Meter
Trade Terms: FOB,EXW
Min Order: 1/Piece
Pay Type: Western Union
Product Description A. Light: Cabinet size 576mm*576mm*80mm, weight 8.5kg/pc. B. Thin: Die-cast aluminum design, high precision, thickness only 80mm. C. Fast: Fast locks, easy to assemble and disassemble. D. Easy: Modular design, easy assembly and maintenance. E. Compatibility: Available pixel pitch for P2.5, P3, P3.75, P4, P4.8, P5, P6. F. Low: Excellent cooling design, no fans or air-conditioners needed noiseless, low power consumption, cost-effective. High Quality Cheap Price P5 Indoor Full Color LED Display Module Our indoor high definition full color LED display screen is slim and portable with die-casting aluminum material. Just 10.5kg/Cabinet, 60mm thickness. We produce a lot so we have good prices and stable quality. Please click here! Chipshow indoor LED video display has the following advantages: 1. High contrast rate up to 9000: 1 by using black LED. 2. High refresh rate with NOVA control system, no scaning line when photographed. 3. The new structure design enables diversified installation to meet the hanging-up and stacking requirements. 4. Due to the light weight and low power consumption, it can reduces the labor cost, operating cost and transportation cost. 5. User-friendly design with fast locks, more convenient & fast to install and dismantle. 6.14 bit color, 16384 gray scale, showing very clear and vivid video and images. 7. Good thermal design, excellent heat dissipation even no fan installation, 8. It is low noise, can be installed in office and meeting room. Send an inquiry now, you will GET A NICE SURPRISE!
Item Module Specification  Parameter
Color  type Real  full  color
Module  size 160*160mm
Pixel  led SMD3528
Resolution  rate 32*32
Driving  way 1/16
Driving  IC SUM2016
Working  voltage DC5V
Power 40W
Working  temperature -10 -  +40
Item Cabinet Specification
Material Extrusion  Aluminium  cabinet
Color Black
Size 640*640mm
Resolution  rate 128*128
Module  quantity 2*2
Density 40000dots/m2
White  balance  luminance   ≥ 1200CD/m2
Color  temperature 6500K__8000K
Horizontal  view  angel 120
Vertical  view  angel 120
Protection  grade IP43
Non-Flatness < 1mm
Module  interval < 1mm
Weight 12.5kg/cabinet
Maximal  power/m2 430W
Frame  frequency ≥ 60Hz
Refresh  frequency 1200-2000Hz
Gray  grade 16bit
Luminance  adjusted 256  grade  by  auto-optic/color  & 8  grade  by  hand
Input  signal RF, S-video, RGB, RGBHV, YUV, YC& Composition, etc
Control  system PCTV  non-linear  editing  card  +  DVI  display  card  +  main
controller  card  +  optic  fiber  transmisson(Optional)
MTBF > 5000h

Prod Model: P5 led display
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Display Type: LED Video Display
Tube Chip Color: Full Color
Display Function: Video Display
Scanning Mode: 1/8 Scan
Application: Shopping Guide
Pixel Configuration: 1R,1G,1B
Pixel Pitch: 5mm
IP Rating: IP43
Certification: ETL
Pixel Density: 40,000 dots / m²
System Operating Platform: WIN XP
Our company supplies different kinds of products. High quality and favorable price. We' Re pleased to get your Inquiry and we will come back to as soon as possible. We stick to the principle of "quality first, service first, continuous improvement and innovation to meet the customers" for the management and "zero defect, zero complaints" as the quality objective.
