FUJIAN HUAJIE OPTOELECTRONIC CO.,LTD
Previous name Channel Cailiang (Zhangzhou) Optoelectronics Co.,Ltd, with a register capital 30 million RMB. Production base covers 53,000sqm standard workshop, is equipped with several advanced automatic assembly lines that supported by more than 1200 skilled workers including 12% engineers and technician. Factory offers low cost high performance led displays, led modules, led screens amount to 250,000sqm per month.
1. Fully Automatic Production Lines
Channel Cailiang owns the entire LED display manufacturing line, encapsulate original Semiconductor to LED chip, then assemble to led display lighting products.
2. Advanced Production Equipment
SMD/DIP die bolder, SMD/DIP wire Bolder, Auto Machine of Pouring Glue for SMD/DIP led, Spectrum and Color Separation Machine, LED oven,Wave solder, Reflow soldering, Spectrum electronic and color tester, temperature and humidity programmable tester, luminance meter etc. are equipped for our LED Product production.
3. Many Certificates Approved
CE, FCC, UL, RoHS, CCC,ISO9001:2000 certified
4.Strong R&D Team
Huajie Opto absorbs more than 1200 skilled staffs, and including about 150 engineers and technician, which paves the way for R&D for new products and excellent sales service!

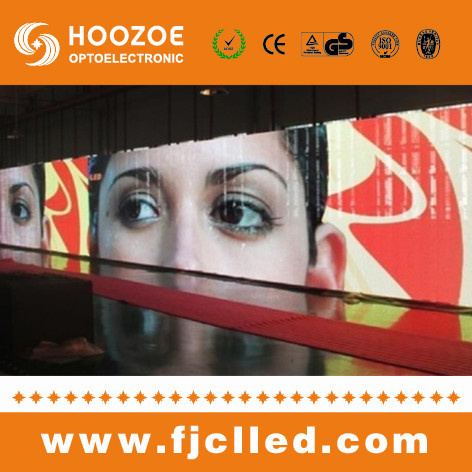

More Details About Channel Cailiang Indoor P4 Full Color LED Display:
|
Outdoor P4 LED Full Color Display |
|
Pixel |
Physical pixel pitch: 10 mm |
|
Module |
Module resolution: 32 x 32 pixels, 64 x 32pixels |
|
Module size: 128mm x 128 mm, 256mm x 128mm |
|
Cabinet |
Physical resolution: 128 x 128 pixels |
|
Cabinet size: 521 x 512 x 140 mm |
|
Physical density: 9600 pixels/cabinet, 10, 000 pixels/sqm |
|
Material: Mild steel/Aluminium alloy (corrosion resistant) |
|
Thermal discharge: Fan 2pcs |
|
Power supply: 3pcs 5V-80A |
|
Weight: 30kg |
|
Main Technical Parameter |
Brightness ( White Balance): > 2500 nits |
|
Brightness adjusted: 256 grade by software, or by Auto-optic induced |
|
Color temperature(k): 2500 _ 4500 (adjustable) |
|
Whole display flatness: ≤ 0.5mm juncture |
|
Best view distance: ≥ 14m |
|
Best view angle: Horizontal ± 120° , Vertical ± 60° |
|
Storage temperature: -35° C ~ +85° C Working temperature: -20° C ~ +60° C |
|
Driving method: Constant driving current, Scan: 1/4 |
|
Refresh frequency: ≥ 2000Hz |
|
Frame rate: ≥ 60Hz |
|
Humidity(RH): 10 ~ 95% |
|
Protection grade: IP65 |
|
Working Voltage: AC 110v/220v± 10% 47~64Hz |
|
Short circuit protection: Yes |
|
Average power consumption: 350 w/m2 |
|
Max power consumption: 1000 w/m2 |
|
MTBF: 10, 000 hours |
|
Screen lifetime: 100000 hours |
|
Control System |
Operating system |
WIN2000/NT/XP/Vista/WIN7 |
|
Control method |
Synchronization |
|
Signal interface: RF, S-Video, RGB, RGBHV, YUV, YC, SDI, HD-SDI, DVI, UXGA, COMPOSITION, etc. |
|
Communication distance: Internet cable: ≤ 100m/ Fiber cable: 1000m |
|
Signal transfer mode: Pixels to pixels display synchronized |
Channel Cailiang (Zhangzhou) Optoelectronic Co., Ltd. is one of the biggest LED manufacture in China. Our factory have 30 PCS production line for Outdoor DIP Modules, 5 PCS line for Indoor SMD products and more than 1, 500 skilled workers. Our R&D team are comprised of a crew of 10% of total staff and most of engineers have more than 5 years experience in LED industry, which great support our new products developing or customized products according to customers' requests.
Our Main Business is Produce various LED Display Module and LED Display Panel for Customers' assemble. It' s avaliable supply all the components for assemble LED Display or LED Message Signs. Besides, we focus on offering whole proposal for LED Display Projects and Solutions. Not only for regualr type, we have continuously developed several Profiled Screens and achieved some proud success in developing Traffic Wireless Solution Display Screens.
In order to design and develop higher quality products, our R&D team always tries best to meet the US&Euro-standards for Electronic products, as well as to fulfill the special requirements from customers. Our products have been approved the German TUV- EMC Certification and Euro EN12966 Certification, and we have also achieved ISO9001: 2000, CCC, CE, FCC, RoHS Certifications.
with perfect designed products, integrated solution including both hardware and software, and superior product and service guarantee, Cailiang has been highly praised by domestic and overseas customers. We have been shipping qualified products and services to more than 50 countries and regions all over the world, such as in the USA, Japan, Russia, Sweden, Turkey, Poland, France, Israel, Argentina, Spain, Italy, etc.
We value the power of cooperative team work, we take "Quality & Honesty" as our belief, and "Being the Largest Global Supplier of LED display Solution" as our goal.
"Channel Cailiang" Sincererly Invite your participation!
