CE, Rohs ETL, P10 P8 P6 Internet Waterproof Support P6 P8 Full Color Outdoor Led Display /led Screen/advertising Display
Specifications
1. Outdoor LED Display
2. Higher refresh rate: Over 2000Hz/s, no scan line
3. High color quality
4. Excellent waterproof
5. Outdoor Cast aluminium cabinet
6. Durable & stable LED display.
7. MBI5020, MBI5024, MBI5041, MBI5152 are optional
8. Waterproof Neutrik connectors are optional, better connectivity performance.
9.2 Years warranty.
MYLED Optoelectronics limited invents in developing die casting aluminum cabinet outdoor Rental LED display screen, to enter high-end market. At present, more and more high-end Renatal LED display outdoor adopts a relatively high precision die-casting process, the use of molds forming a more secure cabinet flatness, keeping tolerance control, basically solved the problem in cabinet patchwork; Also, die-casting Aluminum cabinet breakthrough the traditional one, with a more beautiful appearance. Besides, aluminum alloy still remains stable performance, in air and higher temperatures, not like to iron rusty.
Ordinary Outdoor P6 LED Panel Thickness: 160mm Weight: 25-40 kg
Ordinary slim Outdoor P6 LED video wall Thickness: 115mm Weight: 18-20 kg
Die Casting Aluminum Outdoor LED Display Thickness: 60mm Weight: 12 -18kg
MYLED die casting aluminum cabinet outdoor LED display has the following advantages:
1. The new structure design enables diversified installation to meet the hanging-up and stacking requirements, can be applied to achieve a variety of different occasions to meet various application requirements.
2. User-friendly design, more convenient installation, more efficient and secure; High strength, high toughness, and deformation; More reliable cabinet patchwork and cable connection,
3. Cabinets adopt rapid assembling sets, Which can be beautiful but also a real rapid disassembling.
4. Good thermal design. Taking structural heat emitting to keep the cabinet a excellent heat dissipation even no fan installation.
5. The entire cabinet with die casting aluminum alloy material is more lightweight and practical.
6. Compact base design, so that the whole screen space can be smaller a lot.
7. Higher IP rating; New system, High refresh rate, High brightness, True color output; Breathtaking gray level
8. Unique isolation design of the side lock, can withstand the storm

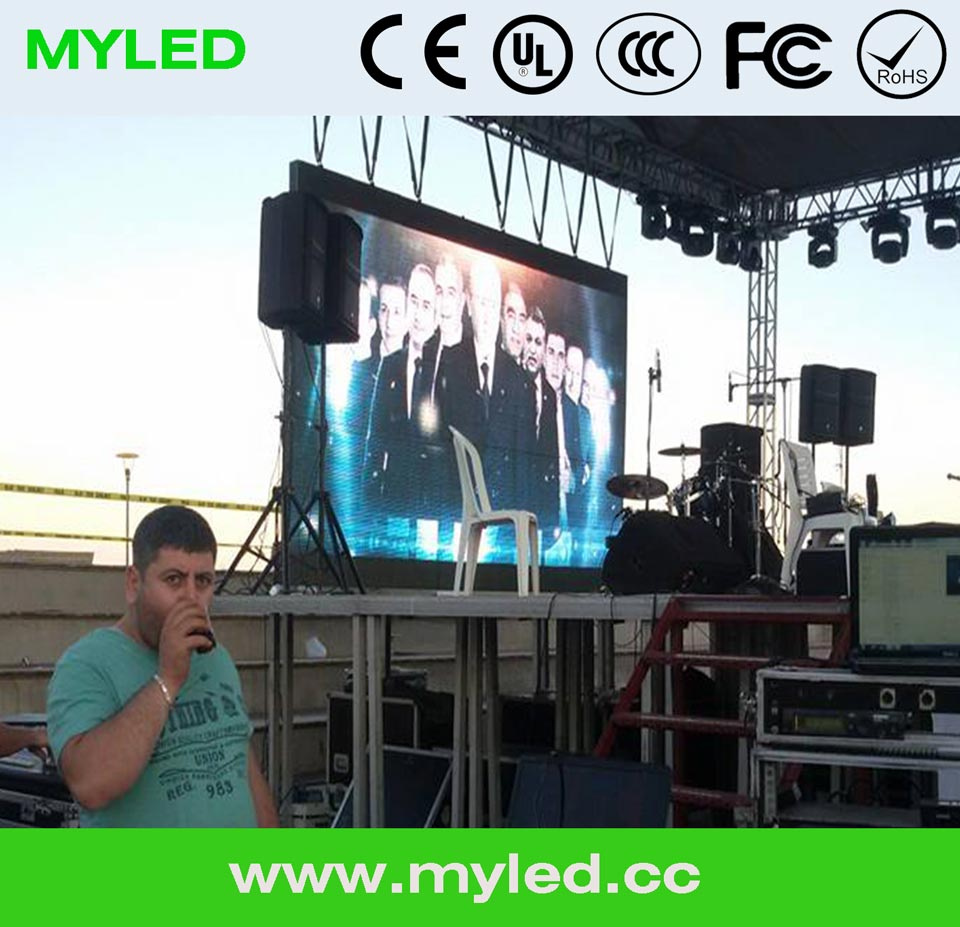

Specially for AV rental companies, great choice for concert tours, product launch events, cooperation events etc.
Technical Prameters |
| PROJECT | P6 outdoor LED screen display for rental |
| Pixel pitch | 6mm |
| Pixel density | 2777 Pixels/sqm |
| Module size(W*H) | 288 W(mm) | 288 H(mm) |
| Module pixels(W*H) | 48 Pixels(W) | 48 Pixels(H) |
| Pixel configuration | 1Red 1Green 1Blue |
| Drive mode | constant current driving 1/8 scan |
| LED lamp type | SMD3535 |
| Cabinet size(W*H*D) | 576 W(mm) | 576 H(mm) |
| Cabinet resolution | 96 Pixels(W) | 96 Pixels(H) |
| Color scale | 65,536 degree |
| View angle(H/V) | 140/120 degree |
| Brightness (White balance) | ≥5500cd/sqm. |
| Power consumption(one cabinet) | Max:1000W/sqm. Average:350W/sqm. |
| Operating Voltage | AC100V±10% or 220V ±10%; 50---60HZ |
| Net weight | 12Kg/Cabinet |
| Operating temperature | -20°C----+50°C (Customized power supply:-45°C---+60°C) |
| Operating humidity | 10%_95%RH |
| Life time | ≥100,000hours |
| MTBF | 5,000 hours |
| Whole Display Flatness | ≤0.1mm Juncture |
| Frame frequency | >60 Hz/s |
| Refresh rate | ≥2000Hz /s |
| Control distance | 100m (without repeater), single mode fiber:20km, multi mode fiber: 500m |
| Power | 110V/220V±15% 50--60Hz |
| LED control system | LINSN,Dbstar,Nova-star,ZDEC,Colorlight is selectable |
| Operating system | Windows 2000 / Windows Xp / Windows 7 |
| Protections for outdoor display | IP65 |
| Maintenance way | Rear Access |
| Accepting signal with video processor | PAL/NTSC/SECAM,S-Video;VGA;RGB;Composite Video;SDI |
*3.91mm & 6.25mm pixel pitch available
*Rear service and front service optional, especially good for compact shopping malls
*Slim, light weight, suitable for both rental and fixed installation
* wonder color and video quality
Product Description
SMD3535 Waterproof P6 Outdoor LED Display for Rental
Product features:
1.Waterproof IP65,good for outdoor rental,small size is available
2. SMD led encapsulation confirm wide view angle and slim board
3.High pixel density, Long view distance, High definition,High brightness,Good uniformity
4.With Rental design Aluminum Cabinet,easy and quick to assemble without tools in short time
5.Die-casting cabinets confirm the strong configuration and lasting, super slim and light weight,
6.low power consumption, No fans,no noise created, Low transportation costs, and low installation costs.
7.Can be fixed installation or for rental to meet the request of live broadcast, live meeting, banquet, party, etc, to display the content what you want, connect with PC computer or network, also can remoto control with asynchronous system.
8.Widely used for commercial led display,advertising led display, stage led display,mobile led display. traffic led display,rental led display, sports led display etc.
Always feel free to get in touch with us; during working hours, your email will have our attention within 30 minutes.
| P6 Outdoor Full Color LED Display Main Parameters |
| Visual Characteristics | Unit | Value |
| Pixel Pitch | mm | 6.0 |
| Pixel Density | Dots/sq.m | 27777 |
| Pixel Configuration |
| SMD3535 |
| Cabinet Resolution | dots | 96×96 |
| Refresh Rate | Hz | ≥1200 |
| View Angle(H/V) | ° | 150/120 |
| Brightness | nits | ≥5500 |
| Gray Scale | Bit | 687Million |
| IP Rating |
| 65 |
| Power Consumption(Max/Avg) | W/sq.m | 650/300 |
| Input Voltage(AC) | V | 110~240 |
| Modular Characteristics |
| Cabinet Size(W×H×D) | mm | 576×576 |
| Cabinet Material |
| Die-cast Aluminum |
| Cabinet Weight | Kg | 12 |
| Module Size(W×H) | mm | 288×288 |
| Environment |
| Operation Temperature | ºC | -20~+50 |
| Operating Humidity |
| 10%~90% |
| Driving Mode |
| 1/8 Scan |
| Control Distance | Cat 5E <100m,Single mode fiber<10Km |
