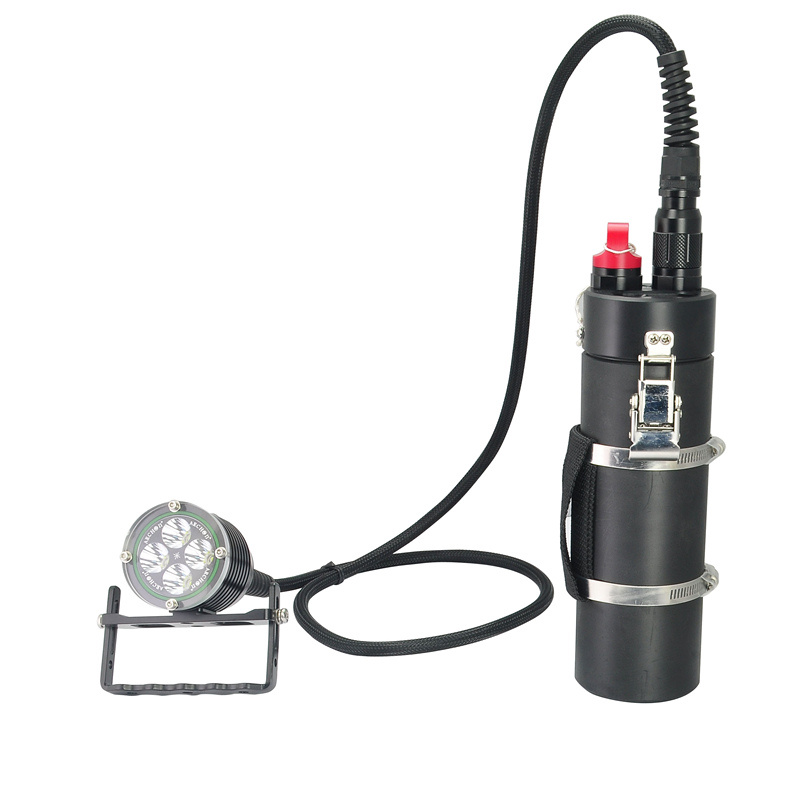

Archon DH40 /WH46 4000 Lumens CREE XML U2/L2 Diving Flashlight
PRODUCT SPECIFICATIONS:
1. Model: WH46 Canister Diving Light
2. Bulb: CREE XM-L U2 LED*4 (Max 4000 Lumens)
3. Color temperature: 6500k.
4. Three output levels. High> Low>Strobe
5. Runtime: High: 5.0h, Low: 15.0h, Strobe: 8.0h
6. Light head: With handheld bracket
7. Reflector: Glossy Aluminum reflector
8. Lens: 8mm Polycarbonate Board.
9. Body material: Durable aircraft-grade aluminum.
10. Angle of light beam 8° Hot spot, 110° Periphery
11. Surface treatment: Premium Type III hard-anodizing.
12. Color: Black
13. Battery: Rechargeable Li-ion battery pack (26650 battery *8)
14. Battery Indicator: 100%-50%: Green; 50%-30%: Yellow; 30%-10%:
Red; Below 10%: Red Flashing; Below 5%: Switch off;
15. Can be charged directly on the light, with battery over-discharging
Protection, polarity reversing protection
16. Fully charging time: 8-10h;
17. With gas release valve
18. Operation voltage: 12V to 18V;
19. Waterproof: 100 meters underwater
20. Dimensions: 244.5mm (canister length)* 78.2mm (dia. Of canister) *
64.5mm (dia. Of light head);
21. Weight: 2420 grams (with battery pack)
22. Underwater Weight: 1150 grams (with battery pack)
23. Impact resistance: 1.5M.
BATTERY CHARGING
1. Plug the charger in the wall power socket, the indicator light is green
In the free-load status.
2. Open the top cover of the canister, plug the plug of the charger in the
Ports on the canister. (the positive and negative polar doesn't matter,
Both ways work. )
3. The indicator light is on the charger red if the battery is not fully
Charged; It will turn green after fully charged.
4. Take out the charger, put the cover on the canister and use the light.
ON/OFF
Push the switch to turn it ON.
MODES CHANGING
Successive push the switch ON-OFF within two seconds to cycle through High, Low, strobe, OFF.
SCUBA DIVING APPLICATION
Check closely for cuts, scratches, or an otherwise damaged O-ring or mating lens surface as this can cause the light to flood under pressure. Remove any salt deposits, sand, dirt, or other foreign matter from the O-ring sealing surfaces.
KEEP THE THREADS, O-RING GROOVE LUBRICATED WITH SILICONE GREASE.
Xiware Technologies Ltd is the largest diving lights manufacturer in China. Our own brand ARCHON takes more than 80% share of China diving lights market, and we're entering more and more overseas market step by step, our goal is to become the No. 1 player in this market section in the whole world.
Many suppliers can make the LED flashlight, but not all of them can make the diving lights professional. As the typical "long-tail-market", the diving lights require a lot of more testing which the non-professional player can't afford, such as the water pressure chamber test, real deep water test at the diving site. Xiware Technologies Ltd invested heavily on all kinds of testing equipment, and the application of the latest LED light technologies, we also have a wide connection with many professional divers who can provide us the first-hand on-site feedback of our diving lights.
Currently we have a full product line of diving lights, including main lights, backup lights, photographing light, video light, canister light, headlamp etc., all are designed to keep divers company as deep as 100 meters underwater.
Whatever it's for recreational diving or serious rescue missions, the ARCHON diving lights are the best illumination gears to dive with.
