Archon W42VR/ D36VR Diving Light
OPERATING INSTRUCTIONS
PRODUCT SPECIFICATIONS:

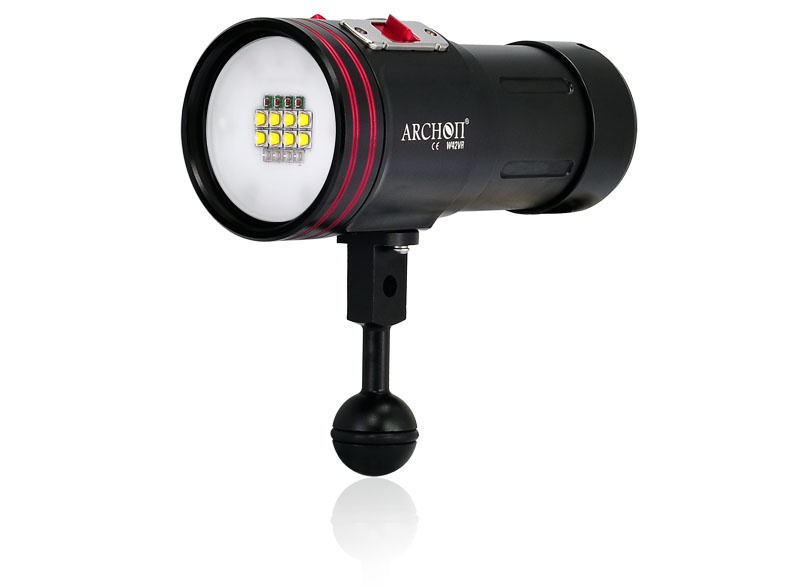

Model: W42VR multifunction underwater photographing Light
Bulb: White CREE XM-L2 U2 LED *8 (max 5200 Lumens);
Red CREE XP-E N3 LED*4 wavelength 620 nm (max 400 Lumens);
Purple LED *2 wavelength 410nm (max 6W);
UV LED*2 wavelength 365nm (max 6W);
Switch 1: Red> Purple> UV> off
Switch 2: White high> White medium >White low> off
The two switches can be operated separately or simultaneously.
Runtime: White High Mode: 1.5H; White Medium Mode: 3.0H; White
Low Mode: 4.0H
Red Light: 4.0H;
Purple Light: 5.0H;
UV light: 5.0H
Color temperature: 5000K (white light)
Reflector: No hotspot design, no reflector;
Lens: 4mm Polycarbonate Board;
Body material: Durable aircraft-grade aluminum;
Angle of light beam: 120°
Surface treatment: Premium Type III hard-anodizing.
Color: Black
Battery: 18650 rechargeable Li- ion battery *4;
Battery Indicator: 100%-50%: Green; 50%-30%: Yellow; 30%-10%:
Red; Below 10%: Red Flashing; Below 5%: Switch off;
With battery over-discharging protection, polarity reversing
Protection
With gas release valve
Operation voltage: 2.8V to 4.2V;
Waterproof: 100 meters underwater
Dimensions: 140.9mm (length)* 62.6mm (dia. Of head);
Weight: 490 grams (without battery); 682.4 grams (with battery)
Underwater Weight: 330 grams (with battery)
Impact resistance: 1.5M.
BATTERY INSTALLATION
1. Remove the tail by turning counter-clockwise.
2. Remove used batteries and replace with fresh batteries as shown by
The polarity stickers.
3. Mount the tail by turning clockwise.
BATTERY CHARGING
1. Plug the charger in the wall power socket, the indicator light is green
In the free-load status.
2. Put the battery in the slot of the charger.
3. The indicator light is red if the battery is not fully charged; It will turn
Green after fully charged.
4. Take out the fully charged battery and use them in the diving light.
ON/OFF
Push the button switch to turn it ON.
MODES CHANGING
1. Successive push the switch 1 ON-OFF within two seconds to cycle
Through Red, Purple, UV Light, OFF;
2. Successive push the switch 2 ON-OFF within two seconds to cycle
Through High, Medium, Low (white light), OFF.
SCUBA DIVING APPLICATION
Check closely for cuts, scratches, or an otherwise damaged O-ring or mating lens surface as this can cause the light to flood under pressure. Remove any salt deposits, sand, dirt, or other foreign matter from the O-ring sealing surfaces.
KEEP THE THREADS, O-RING GROOVE LUBRICATED WITH SILICONE GREASE.
CAUTION
If the light is not to be used for some time, remove the batteries to prevent possible leakage or corrosion. Please remove the batteries during transportation to prevent it from misoperation.
If the switch gets stuck, please put some washing-up liquid in the slot of the switch and push the switch back and forward several times till it move smoothly again, then clean the light in the fresh water.
WARRANTY RETURN POLICY
Please contact your local distributor or retailer for information on how to handle your warranty items.
REPLACEMENT PARTS
CAT# DESCRIPTION
D368 O-ring
D369 Lens
