| Price: | US $ 260-300/Set |
|---|---|
| Trade Terms: | FOB,CFR,CIF |
| Min Order: | 100/Set |
| Pay Type: | L/C,T/T,D/P,Paypal,Money Gram |
hot galvanized street light post/ good looking street lighting poles/customized powdered painting /3m 4m 5m 6m 8m 9m 10m 12m
WE ARE MANUFACTURER SINCE 2000
Experience: Our company was set up in 2000, having over 14 years of production experience in galvanized street light poles.
Production Capacity: We manufacture galvanized street light poles from 3M-35M at the capacity of 20,000 poles per month.
Production lines: For galvanized street lighting poles we carry on vertical production to get good control of quality and cost
PAKAGAING
Bulb wrappings for street lighting poles for FCL goods, felt wrapping first and then bulb wrappings for LCL street light poles.
SPECIFICATION
Material: High-quality steel Q235/SS400 from BAOSTEEL Group
Welding Technique:Automatic submerged arc welding
Surface Treatment:Hot dip galvanizing and powder painting
Welding Standard: GB11345 Grade II
Thickness of Zinc Coating :≥ 86um
Adhesive Force of Zinc Coating: GB2694-88
Anti-wind Capacity: 36.9m/s
Anti-corrosion Lifetime: ≥20 years
Coating Layer Thickness : ≥100um
Adhesive force :GB9286-880 Hardness ≥2H
Steel Pole Height Options:3.5m~15m
Street Lighting Poles Type Options: Conical, polygonal
| Height (m) | Diamention (mm) | Thickness (mm) | Flange size (mm) |
| 6 | 60/140 | 2.75 | 240*240*12 |
| 7 | 60/170 | 3 | 280*280*12 |
| 8 | 70/180 | 3 | 280*280*14 |
| 9 | 70/170 | 3.5 | 300*300*16 |
| 10 | 70/170 | 3.5 | 300*300*16 |
Delivery Time
Generally 20 working days for 100 galvanized steel light poles.
We have plate cutting line--plate bending line-- auto. welding line--polishing line--spray painting line--packaging line

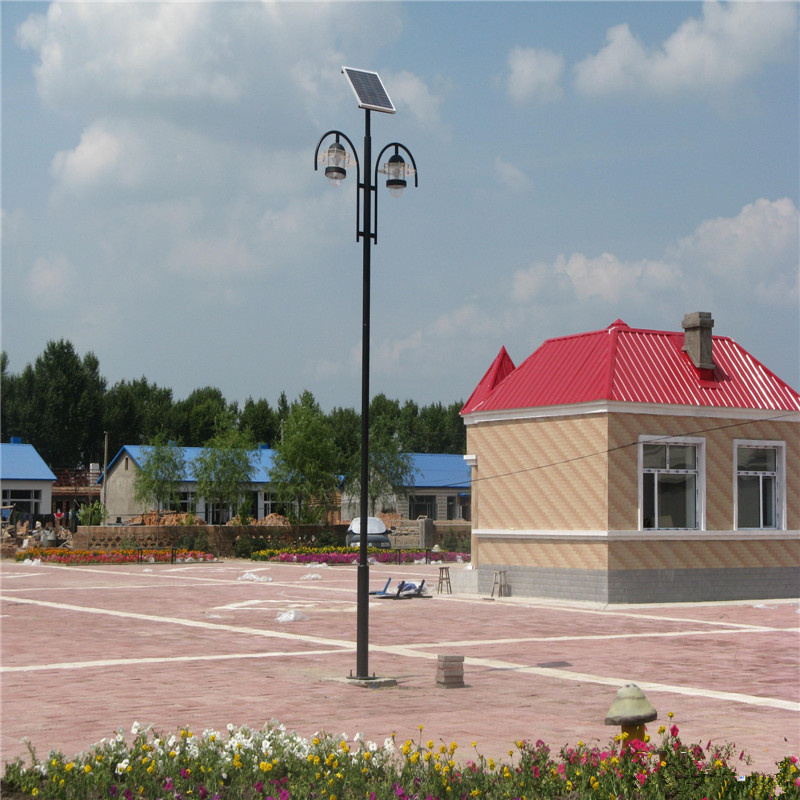

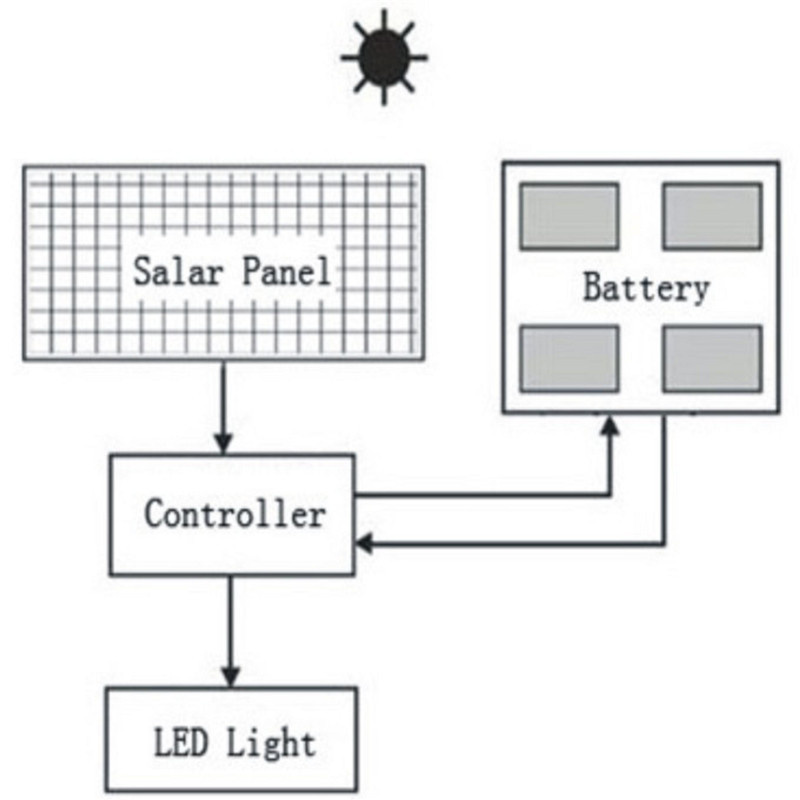

Brief Specification for 8M pole 60W Solar LED Street Lights.
Design based on Africa's average solar radiation condition 5.0KWH,Lighting hours: 11-12 Hrs/Day*3-4 days
1. Pole Height: 8M, Diameter: 75*180mm, Thickness: 3.75mm
Plastic coated on HDG pole, resistant to wind: 150KM/H
2. Applicable light source: 60W LED, 7200LM,Lifespan:>80000Hrs.
3. PV Module: High efficient 120W*2PC.
4. Gelled battery: 120Ah*2PC, Fee Maintence, Deep Cycle, Sealed Type.
5.Battery Box: Engineer Plastic, Bury under ground
6. Controller: 15A/24V Automatic control by microcomputer
7. Fittings
Detailed Specification for 8M pole 60W Solar LED Street Light | |
Part Name and Lifespan | Technical Specification |
Solar Panel: Lifespan:20-25 years | 120W*2PCs Polycrystalline. High Efficiency. A-class Adding Aluminum Frame, Tempered Glass. |
Gelled Battery Lifespan:5-8 years | 120Ah/12V*2PCs, Gelled battery, Sealed Type. Deep cycle. Maintenance Free |
Intelligent Solar Controller Lifespan:5-10 years | 15A/24V,IP68. Automatic Light and Time Control Over-charging/discharging Protection Reverse-connection Protection Switch on Automatically with Light Sensor; |
Light source: High Power LED Lifespan: More than 50000-100000Hrs | 60W LED, White Color,7200LM/PC,6500K,IP65, High Power, High Brightness. |
Lamp Housing: Lifespan: More than 20 years | Die-casted Aluminum, IP65 High transmittance & Density toughened glass, |
Battery Box: | Engineer plastic,underground of the pole. |
GI Pole System: Lifespan: More than 20 years
| 8M Height, tapered Pole, Steel, Hot-Dip Galvanized. Plastic Coated, Rust Proof, With Arm, Bracket, Flange, Fittings, Cable, Etc Resistant to Wind: ≥150KM/H |
| Prod Model: | DX-0078 |
|---|---|
| Markets: | North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Lamp Source: | LED Lamp /Sodium Light/Metal Halide Lamp |
| Shape: | Round /Conical/Octagonal/Polygonal |
| Height: | 3m 4m 5m 6m 7m 8m 9m 10m 11m 12m |
| Power Supply: | Solar |
| Color Temperature: | Warm White |
| Lamp Body Material: | Aluminum |
| Power: | 30w |
| Application: | Garden |
| IP Rating: | IP66 |
| Certification: | SASO |
| Input Voltage: | 12v |
| With Light Source: | With Light Source |
| LED Chips Brand: | CREE |
