Home LED Light Products DC12V/24V 50W Solar LED Street Light (DXSSL-098)

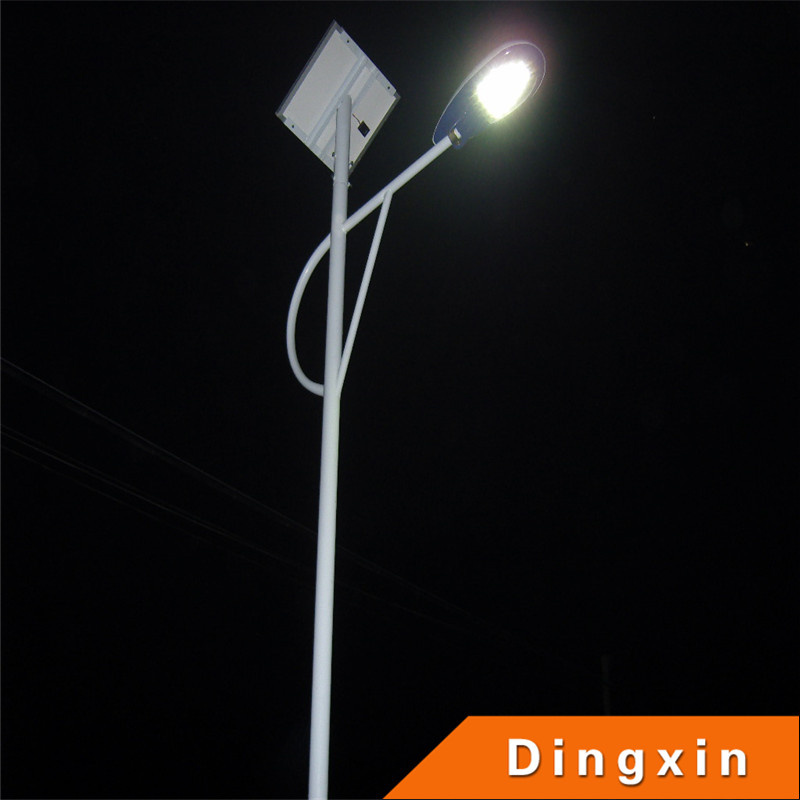

DC12V/24V 50W Solar LED Street Light (DXSSL-098)

DC12V/24V 50W Solar LED Street Light (DXSSL-098)
Price: US $ 450-500/Set
Trade Terms: FOB,CFR,CIF
Min Order: 100/Set
Pay Type: L/C,T/T,D/P,Paypal,Money Gram

Product Description

 Topic:CE RoHS ISO COC Certified DC 24V Votage Solar Street Light Specification.

Detailed Specification for each Parts
LED: 50W

Lamp Body: High-Pressure Die-Casting Aluminum. Corrosion Resistant

LED Power-------------------------50W
LED Lighting Efficiency----------6000LM
Body Size-----------------------540*296*60mm
Lamp Efficiency--------------------->92%
Central Illuminance--------------->30LX
CT---------------------------5000-7000 (White)
Ra-------------------------------------->75%
Power Factor------------------------>0.95
IP----------------------------------------65
Working Temperature----------- -40°C---+60°C
Lifespan-------------------------->50000 Hours
G.Weight-----------------------------5.5KG

Solar Gelled Battery

120Ah


Nominal Voltage------------------12V
Number of cell ----------------------6
Design Life --------------------------5-8 years
10 hour rate(12.0A,10.5V) -----------120Ah
Fully Charged battery 77°F(25°C)----4mΩ
Discharge -----------------------------20~60°C
Charge ------------------------------- -10~60°C
Storage ------------------------------ -20~60°C
Size:--------------------------- 406*172*210mm
Weight: --------------------------------32.5Kgs.
Solar Panel: 100W

Adding Aluminum Frame, Tempered Glass.
A-class.
Silicon Type---------------------------------Poly
Size-----------------------------990*704*35mm
Cells---------------------------------------60
N Weight--------------------------------8.5KG
Vmp---------------------------------------17.2V
Imp---------------------------------------5.81A
Voc---------------------------------------21.6V
Isc----------------------------------------4.63A
Efficiency: -------------------------------≥15.5%
FF(%)-----------------------------------70-72%
Operating temperature-----------40°C to +80°C
 GI Pole System
8Metre
Pole Height-----------------------------------8M
Material----------------------------------Q235,
Top Diameter-----------------------------80mm
Bottom Diameter-------------------------185mm
Pole Thickness----------------------------3.5mm
Painting:--------------------------Wanted Colour
8M Height Pole,Steel, Q235,
Hot-Dip Galvanized. Plastic Coated, Rust Proof,
With Arm, Bracket, Flange, Fittings, Cable, Etc
Resistant to Wind: ≥150KM/H
  Solar Controller
15A/24V Controller
Intelligent Micro-computer Controller
Automatic Light Control and Time Control System
IP Level -----------------------------------IP68
Size--------------------------------81*60*22mm
N. Weight------------------------------0.16KG
Working Temperature:-20°C to  60°C
Over-charging/discharging Protection
Reverse-connection Protection
Switch on Automatically with Light Sensor;
Switch off after 11-12 Hrs later.
Battery Box


Material: Engineer Steel, Hang on the pole.
Cable, and FittingsCables From controller to Lamp to
Solar panel, solar batteries, controller.
Armoured cable, includ
e eather-protective cable glands
  DX SOLAR Brief Introduction:

Overseas Exploration and Popularity:
We had successfully sold our solar street lights and solar panels to overseas markets more than 50 Countries such as the USA, UK, Canada, Germany, Spain, Greece, Italy, Sweden, France, Portugal, Cyprus, Romania, Croatia, Middle East, New Zealand, Fiji, Norway, Belgium, France, Italy, Australia, Turkey, Jordan, Iraq, UAE, India, Pakistan, Bangladesh, Qatar, Yemen, Singapore, Philippines, Cambodia, Nigeria, Congo, Mexico, etc.

FEATURES
hot galvanized street light post/ good looking street lighting poles/customized powdered painting /3m 4m 5m 6m 8m 9m 10m 12m
WE ARE MANUFACTURER SINCE 2000
Experience: Our company was set up in 2000, having over 14 years of production experience in galvanized street light poles.
Production Capacity: We manufacture galvanized street light poles from 3M-35M at the capacity of 20,000 poles per month.
Production lines: For galvanized street lighting poles we carry on vertical production to get good control of quality and cost
PAKAGAING
Bulb wrappings for street lighting poles for FCL goods, felt wrapping first and then bulb wrappings for LCL street light poles.

SPECIFICATION FOR POLE
Material: High-quality steel Q235/SS400 from BAOSTEEL Group
Welding Technique:Automatic submerged arc welding
Surface Treatment:Hot dip galvanizing and powder painting
Welding Standard: GB11345 Grade II
Thickness of Zinc Coating :≥ 86um
Adhesive Force of Zinc Coating: GB2694-88
Anti-wind Capacity: 36.9m/s
Anti-corrosion Lifetime: ≥20 years
Coating Layer Thickness : ≥100um
Adhesive force :GB9286-880  Hardness ≥2H
Steel Pole Height Options:3.5m~15m
Street Lighting Poles Type Options: Conical, polygonal

Height (m)
Diamention (mm)Thickness (mm)Flange size (mm)
660/1402.75240*240*12
760/1703280*280*12
870/1803280*280*14
970/1703.5300*300*16
1070/1703.5300*300*16

Delivery Time
Generally 20 working days for 100 galvanized steel light poles.

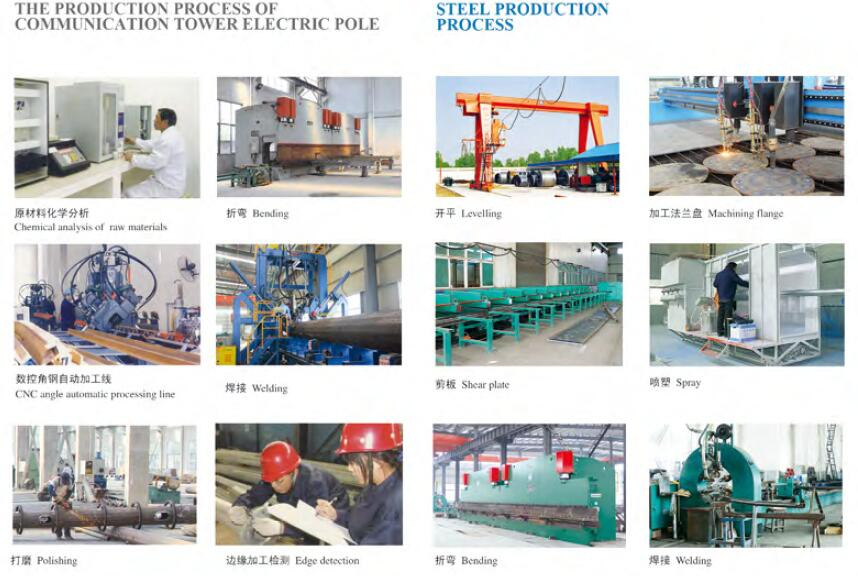

We have plate cutting line--plate bending line-- auto. welding line--polishing line--spray painting line--packaging line


Prod Model: DX-0078
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Lamp Source: LED Lamp /Sodium Light/Metal Halide Lamp
Shape: Round /Conical/Octagonal/Polygonal
Height: 3m 4m 5m 6m 7m 8m 9m 10m 11m 12m
Material: Q235
Light Source: LED Light
Color Temperature(',CCT): Cool White
Lamp Body Material: Aluminum Alloy
Lamp Power: 80W
Power Supply: AC
Average Life: 5500h
Application: Garden
IP Rating: IP65
Certification: GS
Voltage: 220V
Yangzhou Dingxin Photoelectric Technology Co., Ltd., Established in 2000, an ISO 9001: 2000, TUV, IEC, CE&EN, RoHS, SONCAP CCPIT and CCC approved manufacturer and trading Group company.

Overseas Exploration and Popularity:

We had successfully sold our solar street lights and solar panels to overseas markets more than 60 Countries such as the sri landka, USA, Canada, UK, Greece, France, Italy, Australia, Turkey, Jordan, Saudi Arabia, Iraq, UAE, India, Philippines, Pakistan, Cambodia, Taiwan, Nigeria, Ghana, Congo, South Africa, Mexico, Haiti, etc.

For the Future:

With advanced manufacturing & testing equipments, our factories are growing better and better. We hope to cooperate with more partners and distributors to develop more business to create prosperous win-win partnerships. OEM is available. Welcome your inquiry mail or call.

Main Products:

Solar Street Lights & Solar Street Lighting & LED Solar Street Lighting;

Solar Garden Lights & Solar Landscape Lights;

Solar Panel & Solar Modules.

Small Solar Home System,

POLE,

LED light

Attention: We are good at

1: Designing, producing, installing solar 10W-120W Solar LED street lights

2: Designing, producing 10W-240W LED Lamp for outdoor street and road using.

3: Producing solar panel below 315W

4. Solar Battery 7Ah-300Ah/12V

5. Solar garden light.

OEM Service for solar lighting and PV panel is available.

Welcome to contact us for details!
