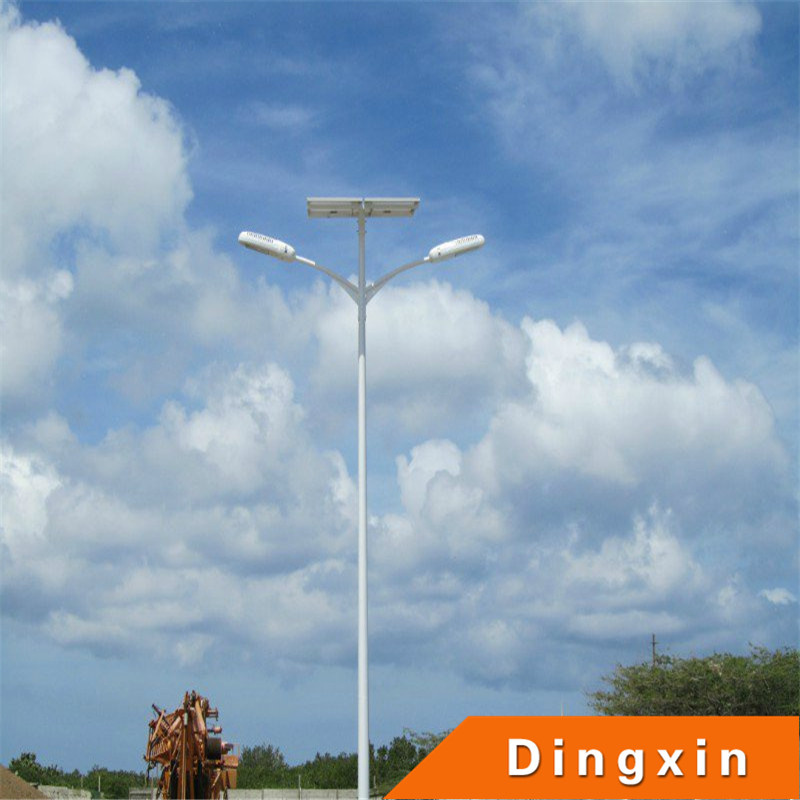

Double Arms LED Solar Street Light with 5 Years Warranty
Price: |
US $ 530-600/Set |
Trade Terms: |
FOB,CFR,CIF |
Min Order: |
1/Set |
Pay Type: |
L/C,T/T,D/P,Paypal,Money Gram |
FEATURES
hot galvanized street light post/ good looking street lighting poles/customized powdered painting /3m 4m 5m 6m 8m 9m 10m 12m
WE ARE MANUFACTURER SINCE 2000
Experience: Our company was set up in 2000, having over 14 years of production experience in galvanized street light poles.
Production Capacity: We manufacture galvanized street light poles from 3M-35M at the capacity of 20,000 poles per month.
Production lines: For galvanized street lighting poles we carry on vertical production to get good control of quality and cost
PAKAGAING
Bulb wrappings for street lighting poles for FCL goods, felt wrapping first and then bulb wrappings for LCL street light poles.
SPECIFICATION
Material: | High-quality steel Q235/SS400 from BAOSTEEL Group |
Welding Technique: | Automatic submerged arc welding |
Surface Treatment: | Hot dip galvanizing and powder painting |
Welding Standard: | GB11345 Grade II |
Thickness of Zinc Coating : | ≥ 86um |
Adhesive Force of Zinc Coating: | GB2694-88 |
Anti-wind Capacity: | 36.9m/s |
Anti-corrosion Lifetime: | ≥20 years |
Coating Layer Thickness : | ≥100um |
Adhesive force : | GB9286-880 Hardness ≥2H |
Steel Pole Height Options: | 3.5m~15m |
Street Lighting Poles Type Options: | Conical, polygonal |

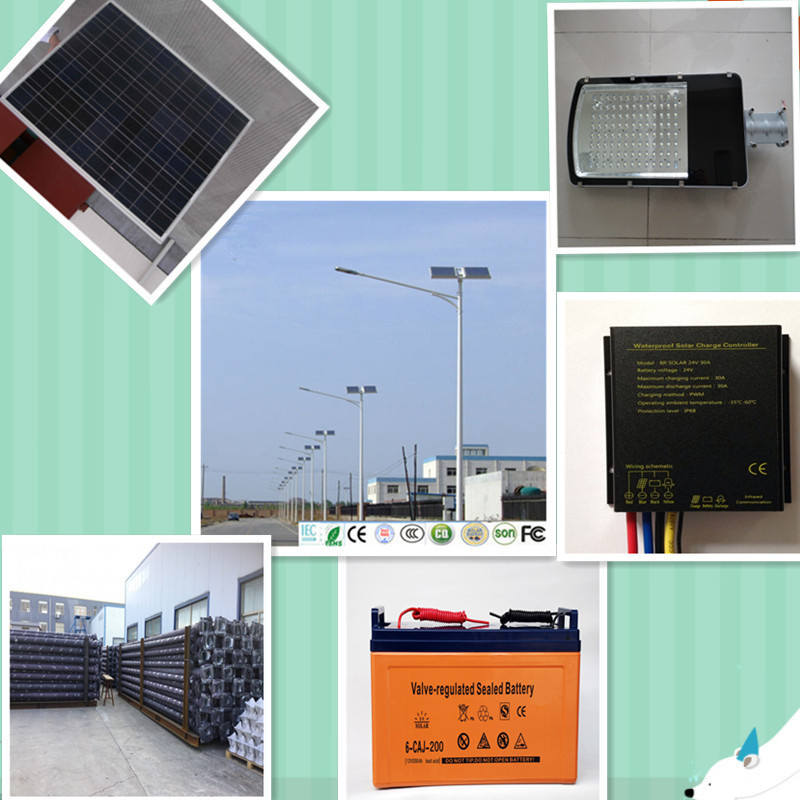

Detailed Specification for 10M pole 80W Solar Street Light |
Part Name and Lifespan | Technical Specification |
Solar Panel: Lifespan:20-25 years | 160W*2PC Polycrystalline. High Efficiency. A-class Adding Aluminum Frame, Tempered Glass. |
Gelled Battery Lifespan:5-8 years | 180Ah/12V*2PC, Gelled battery, Sealed Type. Deep cycle. Maintenance Free |
Intelligent Solar Controller Lifespan:5-10 years | 15A/24V,IP68. Automatic Light and Time Control Over-charging/discharging Protection Reverse-connection Protection Switch on Automatically with Light Sensor; Switch off after designed Hours later.(11-12 Hrs) |
Light source: High Power LED Lifespan: More than 50000-100000Hrs | 80W LED, White Color, 10400LM/PC,6500K,IP65, High Power, High Brightness. |
Lamp Housing: Lifespan: More than 20 years | Die-casted Aluminum, IP65 High transmittance & Density toughened glass, |
Battery Box: | Engineer Steel, hang on the pole. |
GI Pole System: Lifespan: More than 20 years | 10M Height, tapered Pole, Steel, Hot-Dip Galvanized. Plastic Coated, Rust Proof, With Arm, Bracket, Flange, Fittings, Cable, Etc Resistant to Wind: ≥150KM/H |
Delivery Time
Generally 20 working days for 100 galvanized steel light poles.

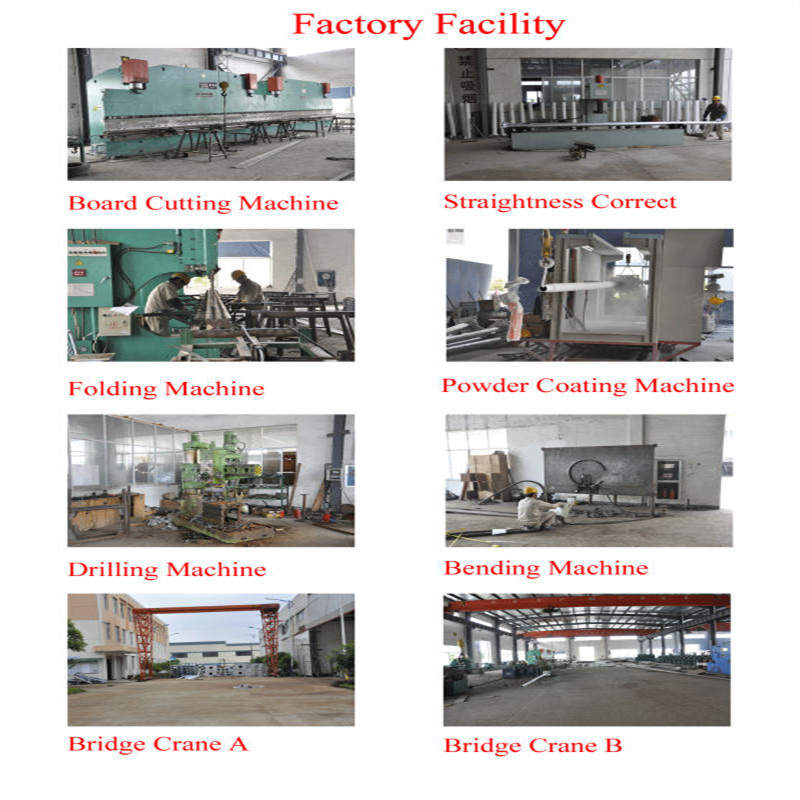

We have plate cutting line--plate bending line-- auto. welding line--polishing line--spray painting line--packaging line
Prod Model: |
DXSSL |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Lamp Source: |
LED Lamp /Sodium Light/Metal Halide Lamp |
Shape: |
Round /Conical/Octagonal/Polygonal |
Height: |
3m 4m 5m 6m 7m 8m 9m 10m 11m 12m |
Place Of Origin: |
Jiangsu, China (Mainlan |
Light Source: |
LED Lamp |
Lamp Body Material: |
Aluminum Alloy |
Light Type: |
Solar |
Color Temperature: |
Warm White |
Power: |
≥30W |
Technics: |
Painted Matte |
Illumination Time: |
8h |
Charging Time (',H): |
8 |
Usage: |
Street |
IP Rating: |
IP65 |
Certification: |
RoHS |
Voltage: |
12/24V |
With Light Source: |
With Light Source |
Cell Type: |
Gel Battery |
Yangzhou Dingxin Photoelectric Technology Co., Ltd., Established in 2000, an ISO 9001: 2000, TUV, IEC, CE&EN, RoHS, SONCAP CCPIT and CCC approved manufacturer and trading Group company.
Overseas Exploration and Popularity:
We had successfully sold our solar street lights and solar panels to overseas markets more than 60 Countries such as the sri landka, USA, Canada, UK, Greece, France, Italy, Australia, Turkey, Jordan, Saudi Arabia, Iraq, UAE, India, Philippines, Pakistan, Cambodia, Taiwan, Nigeria, Ghana, Congo, South Africa, Mexico, Haiti, etc.
For the Future:
With advanced manufacturing & testing equipments, our factories are growing better and better. We hope to cooperate with more partners and distributors to develop more business to create prosperous win-win partnerships. OEM is available. Welcome your inquiry mail or call.
Main Products:
Solar Street Lights & Solar Street Lighting & LED Solar Street Lighting;
Solar Garden Lights & Solar Landscape Lights;
Solar Panel & Solar Modules.
Small Solar Home System,
POLE,
LED light
Attention: We are good at
1: Designing, producing, installing solar 10W-120W Solar LED street lights
2: Designing, producing 10W-240W LED Lamp for outdoor street and road using.
3: Producing solar panel below 315W
4. Solar Battery 7Ah-300Ah/12V
5. Solar garden light.
OEM Service for solar lighting and PV panel is available.
Welcome to contact us for details!
