LED Strobe light/LED High Power strobe Light/LED Stage light and led Effect light/DMX LED light, LED Color Change Light, LED Blinder Light, LED 4EYE Light, LED WASHER

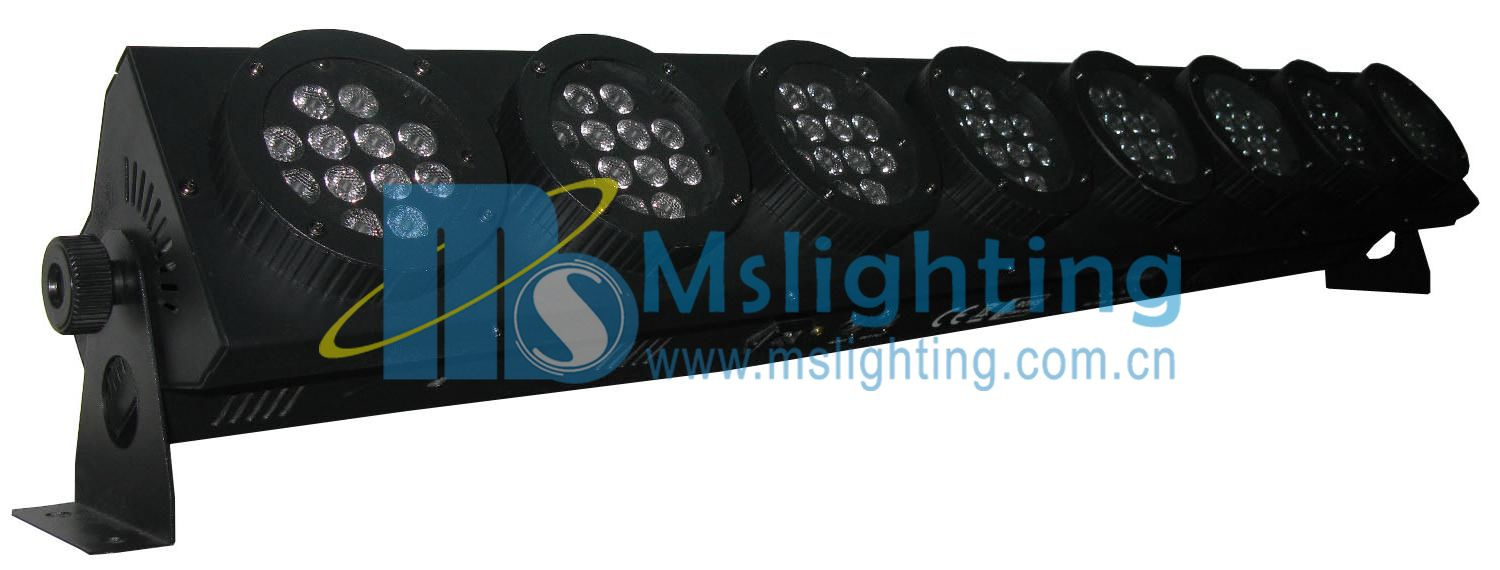

This LED AUDIENCE Project Light is adopts in 48*1W/3W high power LED lights. 48pcs of high power LEDs are with focus lens and large-angle. It is a new generation green high technology product. The light color is abundant. It brings people new vision sense, which makes people feel they are in a changeable color world.
When this project light is connected to power box and controller with DMX, the color range is 256× 256× 256=16777216. And it can be color glitter, random glitter, gradual change, jumping change, gradual change alternately and so on.
The signal cable with excellent transmission capability, nice design insures no attenuation of high power LED project for long time. Reasonable design can be adjusted project angle random. It is easy to install that the base is with holes. This is applied to government light project, commerce location, airport, underground crossroad and so on.
|
Specification: |
|
Model |
LED 9605 RGBWA |
|
|
Operating voltage |
90-254V AC |
|
|
LED current |
1500mA |
|
|
NO.of LED |
96*5W (32R+32B+32G) |
|
|
Power Consumption |
480W |
|
|
Light Projecting Distance |
5-125M |
|
|
Housing Material |
Aluminum |
|
Housing Color |
Black |
|
Aperture Cover |
Aluminum |
|
Control Modes |
Direct DMX 512, Master/slave. Stand alone. Sound Activity, Sound activity synchronization |
|
DMX Channel |
6CH/3CH |
|
Control panel |
Digital 4 characters alphanumeric |
|
Connector |
3-PinXLR (In and Out) |
|
LED Life Time |
80000-100,000 hours |
|
Beam Angle |
25° ( The other angle would order) |
|
IP Rating |
Indoor |
|
Operating Temperature |
-20ºC -+45ºC |
|
Compatibility: |
|
1. Color Range: 16.7 million additive RGB colors; continuously variable intensity (256×256×256=16777216) |
|
2. Dimming 0-100%with regulated constant color control |
|
3.Strobe: 10 Flashed per second (any color) |
|
4. Function: it is max mix color, color change, color's gradual change, flash, speed/luminance the adjustable and Save function. |
|
5. 6channel Mode and 3channel Mode would change each other in every light |
|
6. 6CH Mode DMX Value |
CH 1 _ General dimmer (1-255,Dimmer, from dart to light) |
|
CH 2_ Red (1-255, Dimmer, from dart to light) |
|
CH 3 _ Green (1-255, Dimmer, from dart to light) |
|
CH 4_Blue (1-255, Dimmer, from dart to light) |
|
CH 5_ Strobe & Color change/ color gradual change open |
|
CH 6 _Strobe & Color change& color gradual change's speed adjustment (1-255, Speed adjustment, from slow to fast) |
|
7. 3CH Mode DMX Value |
CH 1_ Red (1-255, Dimmer, from dart to light) |
|
CH 2 _ Green (1-255, Dimmer, from dart to light) |
|
CH 3_Blue (1-255, Dimmer, from dart to light) |
|
8. Control Mode |
0: sound activity mode |
|
1. DMX control mode |
|
2. Adjusting the color manual |
|
3. Adjusting the brightness manual |
|
4. Adjusting the strobe manual |
5. Adjusting the strobe speed manual
6. Master-slave control mode, as the master |
|
7. Sound activity synchronization mode |
|
8. Adjustingcolor's gradual change manual |
|
9.Adjustinggradual change's speed |
