| Price: | US $ 775.00-780.00/Set |
|---|---|
| Trade Terms: | FOB,CFR,CIF |
| Min Order: | 1/Set |
| Pay Type: | L/C,T/T,Paypal,Money Gram,Western Union |

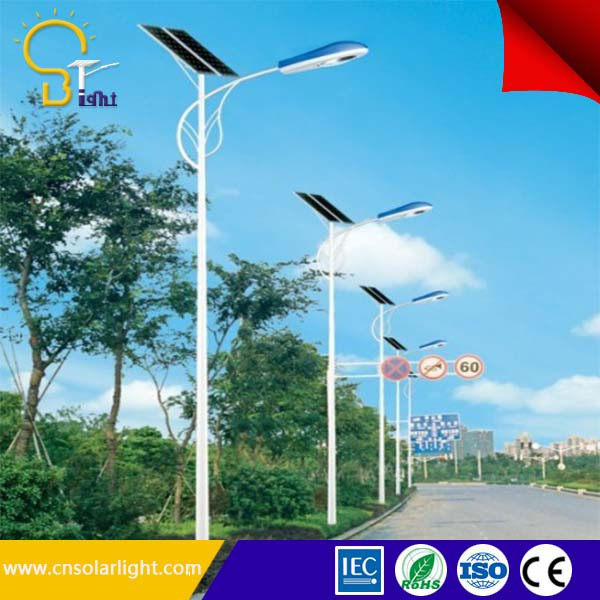

100W LED solar street light with SONCAP Certificated
1 Pole Height: 10M, Thickness: 4.0mm, resistant to wind: 150KM/H
2 Applicable light source: 100W LED, 12000LM,
3 PV Module: High efficient 200W*2PC
4 Gelled battery: 250Ah*2PC. 10
5.Battery Box, Engineer Plastic,underground of the pole.
6. Controller: 20A/24V Automatic control by microcomputer
7. Lighting hours: 11-12 Hrs/Day*3-4 days (Intelligent Controlled)
Getting more information on this 100W LED solar street light, mail or call us please.
| Detailed Specification for each Parts | |
| LED: 100W Lamp Body: High-Pressure Die-Casting Aluminum. Corrosion Resistant | LED Power-------------------------100W LED Lighting Efficiency----------12000LM Body Size-----------------------540*296*60mm Lamp Efficiency--------------------->92% Central Illuminance--------------->35LX CT---------------------------5000-7000 (White) Ra-------------------------------------->75% Power Factor------------------------>0.95 IP----------------------------------------65 Working Temperature----------- -40°C---+60°C Lifespan-------------------------->50000 Hours G.Weight-----------------------------8.5KG |
| Solar Gelled Battery 250Ah | Nominal Voltage------------------12V Number of cell ----------------------6 Design Life --------------------------5-8 years 10 hour rate(25.0A,10.5V) -----------250Ah Fully Charged battery 77°F(25°C)----4mΩ Discharge -----------------------------20~60°C Charge ------------------------------- -10~60°C Storage ------------------------------ -20~60°C Size:--------------------------- 523*268*220mm Weight: --------------------------------72.0Kgs. |
| Solar Panel: 200W Adding Aluminum Frame, Tempered Glass. A-class. | Silicon Type---------------------------------Poly Size----------------------------1650*990*50mm Cells---------------------------------------60 N Weight--------------------------------20KG Vmp-------------------------------------28.81V Imp---------------------------------------6.94A Voc---------------------------------------36.0V Isc----------------------------------------7.7A Efficiency: -------------------------------≥15.5% FF(%)-----------------------------------70-72% Operating temperature-----------40°C to +80°C |
| GI Pole System 10Metre | Pole Height----------------------------------10M Material----------------------------------Q235, Top Diameter-----------------------------80mm Bottom Diameter-------------------------185mm Pole Thickness----------------------------4.0mm Painting:--------------------------Wanted Colour 10M Height Pole,Steel, Q235, Hot-Dip Galvanized. Plastic Coated, Rust Proof, With Arm, Bracket, Flange, Fittings, Cable, Etc Resistant to Wind: ≥150KM/H |
| Solar Controller 20A/24V Controller | Intelligent Micro-computer Controller Automatic Light Control and Time Control System IP Level -----------------------------------IP68 Size--------------------------------81*60*22mm N. Weight------------------------------0.16KG Working Temperature:-20°C to 60°C Over-charging/discharging Protection Reverse-connection Protection Switch on Automatically with Light Sensor; Switch off after 11-12 Hrs later. |
| Battery Box | Material: Engineer Plastic,underground of the pole. |
| Cable, and Fittings | Cables From controller to Lamp to Solar panel, solar batteries, controller. Armoured cable, include eather-protective cable glands |

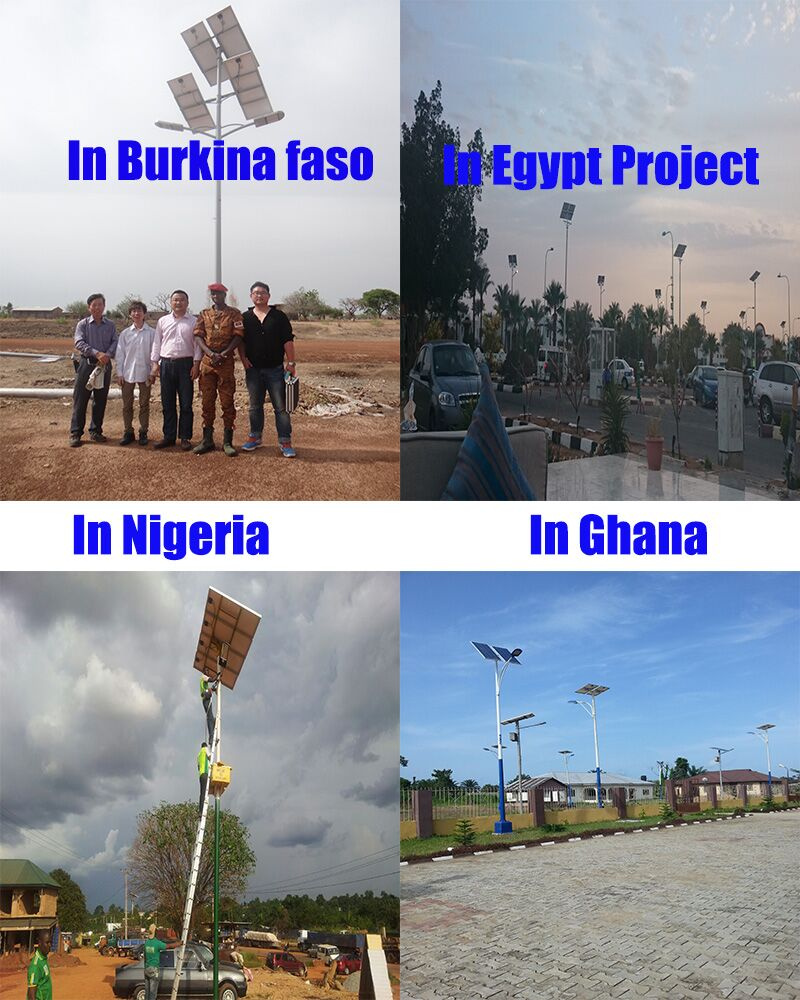

Overseas Exploration and Popularity:
We had successfully sold our solar street lights and solar panels to overseas markets more than 50 Countries such as the USA, UK, Canada, Germany, Spain, Greece, Italy, Sweden, France, Portugal, Cyprus, Romania, Croatia, Middle East, New Zealand, Fiji, Norway, Belgium, France, Italy, Australia, Turkey, Jordan, Iraq, UAE, India, Pakistan, Bangladesh, Qatar, Yemen, Singapore, Philippines, Cambodia, Nigeria, Congo, Mexico, etc.
2.Many Kinds of LED Solutions for longer lifespan and all kinds of lighting effect.
3.Our Sales Team Work Efficiency, and every design will based on your installed condition.
4.Our Solar Street Lights Have Successfully Been Applied In More Than 50 Countries
5.Except Video Installation Instruction, we can send our engineer to spot guidance, or teach yourengineer in our factory.
Applications
Solar Street Light; Solar Road Light;
Solar Path Light; Solar Parking Lot Light;
Solar Driving way Light; Solar Highway Light;
Solar Freeway Light; Solar Avenue Light;
Solar Sidewalk Light; Solar Remote Area Light;
Solar Military Bases Light; Solar Security Light
Solar Garden Light Solar Park Light
Solar Gate Light Solar Grave Light
Solar Entrance Light Solar Fence Light
Solar Campus Light

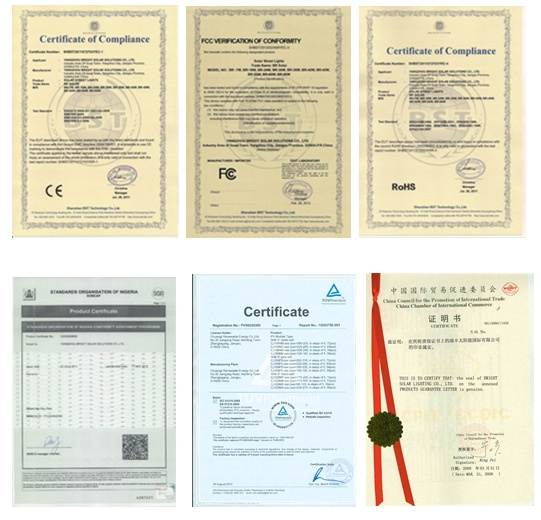

Certificates:
| Prod Model: | BRU-01 LED solar street light |
|---|---|
| Markets: | North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Western Europe |
| Power Supply: | DC |
| IP Level: | IP68, Against Big Rain or Flood |
| LED Lamp: | 100W with Original Bridgelux |
| Solar Panel: | High Efficiency 2PCS*200W |
| Solar Battery: | Gel Type,Deep Cycle,Maintenance |
| Charge Controller: | IP68,Waterproof |
| Pole: | 10m,Steel,Q235,Hot-DIP Galvanized |
| Working Time: | 11-12hrs |
| Application: | LED Solar Street Light |
| Warranty: | 3 Years,5 Years |
| Light Source: | Energy-saving Lamps |
| Lamp Body Material: | Aluminum Alloy |
| Light Type: | Solar |
| Color Temperature: | Cool White |
| Technics: | Electroplating |
| Illumination Time: | 6h |
| Charging Time (',H): | 6 |
| Usage: | Highway |
| IP Rating: | IP65 |
| Certification: | Soncap,CE,FCC,CCC |
| With Light Source: | With Light Source |
| Power: | 100W |
| Cell Type: | Gelled or Lead-Acid |
| Voltage: | 24V |
