Home LED Light Products 8000hrs Lifespan Energy Saving 100W LED Solar Street Light with Pole System (JS-A20150108100)

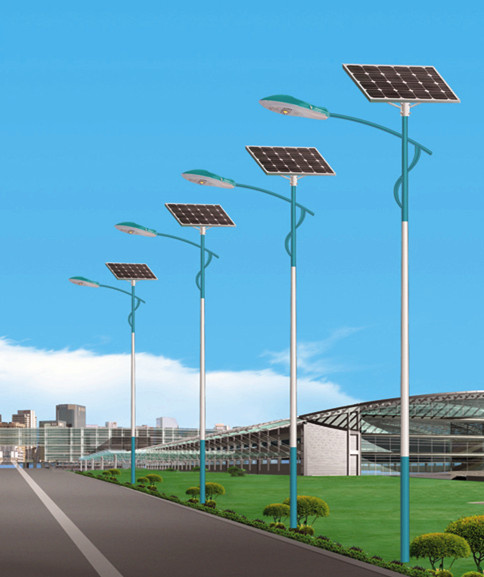

8000hrs Lifespan Energy Saving 100W LED Solar Street Light with Pole System (JS-A20150108100)
| Price: |
US $ 425-435/Set |
| Trade Terms: |
FOB |
| Min Order: |
10/Set |
| Pay Type: |
T/T |
Additional Info.
Trademark:Jinshang SOLAR
Packing:Carton, Pallet, Bubble
Standard:10M Pole 100W LED solar street light
Origin:China
HS Code:94054090
Production Capacity:5000PC/Month 100W LED Solar Street Light
Product Description
100W LED solar street light with SONCAP Certificated
1 Pole Height: 10M, Thickness: 4.0mm, resistant to wind: 150KM/H
2 Applicable light source: 100W LED, 12000LM,
3 PV Module: High efficient 200W*2PC
4 Gelled battery: 250Ah*2PC. 10
5.Battery Box, Engineer Plastic,underground of the pole.
6. Controller: 20A/24V Automatic control by microcomputer
7. Lighting hours: 11-12 Hrs/Day*3-4 days (Intelligent Controlled)
Getting more information on this 100W LED solar street light, mail or call us please.
Detailed Specification for each Parts |
LED: 100W
Lamp Body: High-Pressure Die-Casting Aluminum. Corrosion Resistant
| LED Power-------------------------100W
LED Lighting Efficiency----------12000LM
Body Size-----------------------540*296*60mm
Lamp Efficiency--------------------->92%
Central Illuminance--------------->35LX
CT---------------------------5000-7000 (White)
Ra-------------------------------------->75%
Power Factor------------------------>0.95
IP----------------------------------------65
Working Temperature----------- -40°C---+60°C
Lifespan-------------------------->50000 Hours
G.Weight-----------------------------8.5KG |
Solar Gelled Battery
250Ah
| Nominal Voltage------------------12V
Number of cell ----------------------6
Design Life --------------------------5-8 years
10 hour rate(25.0A,10.5V) -----------250Ah
Fully Charged battery 77°F(25°C)----4mΩ
Discharge -----------------------------20~60°C
Charge ------------------------------- -10~60°C
Storage ------------------------------ -20~60°C
Size:--------------------------- 523*268*220mm
Weight: --------------------------------72.0Kgs. |
Solar Panel: 200W
Adding Aluminum Frame, Tempered Glass.
A-class. | Silicon Type---------------------------------Poly
Size----------------------------1650*990*50mm
Cells---------------------------------------60
N Weight--------------------------------20KG
Vmp-------------------------------------28.81V
Imp---------------------------------------6.94A
Voc---------------------------------------36.0V
Isc----------------------------------------7.7A
Efficiency: -------------------------------≥15.5%
FF(%)-----------------------------------70-72%
Operating temperature-----------40°C to +80°C |
GI Pole System
10Metre | Pole Height----------------------------------10M
Material----------------------------------Q235,
Top Diameter-----------------------------80mm
Bottom Diameter-------------------------185mm
Pole Thickness----------------------------4.0mm
Painting:--------------------------Wanted Colour
10M Height Pole,Steel, Q235,
Hot-Dip Galvanized. Plastic Coated, Rust Proof,
With Arm, Bracket, Flange, Fittings, Cable, Etc
Resistant to Wind: ≥150KM/H |
Solar Controller
20A/24V Controller | Intelligent Micro-computer Controller
Automatic Light Control and Time Control System
IP Level -----------------------------------IP68
Size--------------------------------81*60*22mm
N. Weight------------------------------0.16KG
Working Temperature:-20°C to 60°C
Over-charging/discharging Protection
Reverse-connection Protection
Switch on Automatically with Light Sensor;
Switch off after 11-12 Hrs later. |
Battery Box
| Material: Engineer Plastic,underground of the pole. |
| Cable, and Fittings | Cables From controller to Lamp to
Solar panel, solar batteries, controller.
Armoured cable, include eather-protective cable glands |
Our Service:
1.More Than 10 Years Producing And Exporting Experience.
2.Many Kinds of LED Solutions for longer lifespan and all kinds of lighting effect.
3.Our Sales Team Work Efficiency, and every design will based on your installed condition.
4.Our Solar Street Lights Have Successfully Been Applied In More Than 50 Countries
5.Except Video Installation Instruction, we can send our engineer to spot guidance, or teach yourengineer in our factory.
Applications
Solar Street Light; Solar Road Light;
Solar Path Light; Solar Parking Lot Light;
Solar Driving way Light; Solar Highway Light;
Solar Freeway Light; Solar Avenue Light;
Solar Sidewalk Light; Solar Remote Area Light;
Solar Military Bases Light; Solar Security Light
Solar Garden Light Solar Park Light
Solar Gate Light Solar Grave Light
Solar Entrance Light Solar Fence Light
Solar Campus Light
| Prod Model: |
JS-A20150108100 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Illumination Flux:5000im: |
Illumination Efficiency:>90% |
| Power Supply: |
Solar |
| Color Temperature: |
Cool White |
| Lamp Body Material: |
Aluminum Alloy |
| Application: |
Garden |
| IP Rating: |
IP65 |
| Certification: |
CCC |
| With Light Source: |
With Light Source |
| LED Chips Brand: |
CREE |
| Power: |
30-100W |
| Input Voltage: |
12-24V |
