Product Details
Basic Info.
Model NO.:JS-A20156130
Light Source:LED Lamp
Lamp Body Material:Aluminum Alloy
Light Type:Solar
Color Temperature:Cool White
Power:30w
Illumination Time:10h
Cell Type:Lithium Battery
Charging Time (H):6h
Usage:Garden, Street, Road /Outside
IP Rating:IP65
Certification:CE, RoHS
Voltage:12/24V
With Light Source:With Light Source
Warranty:5 Years
Export Markets:Global
Additional Info.
Trademark:Jinshang
Packing:Standard Package
Origin:Jiangsu, China
Production Capacity:10000sets/Month
Product Description

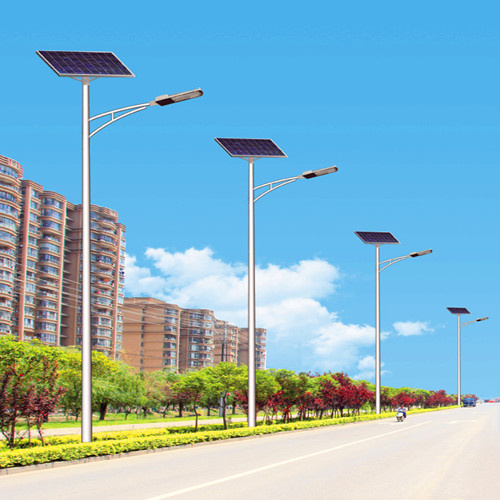

Detailed technical parameter for 30W solar LED street light |
| Working Time:10 hours/day, 3 rainy or cloudy dasy backup |
| Component Name | Technical Parameter for components |
| 30W/12V LED lamp | LED Power: | 30W |
| Power Voltage: | DC12V |
| Total Lums: | 3300lm |
| Color Temperature: | 6500K |
| Illumination: | 6M≥28Lux |
| LED Quantity: | 1W*30PCS |
| Luminous efficiency: | 140~150Lm/W |
| CRI: | >80 |
| IP Protection: | IP65 |
| Illumination Area: | 20*8M |
| LEDs chip: | CREE |
| Light transmittance: | ≥90% |
| Size: | 520*220*60MM |
| Weight: | 4.5Kgs |
| 100W/12V Solar panel | Nominal Power(W): | 100W/12V |
| Type of cell: | Mono or Poly |
| Encapsulation: | Glass/EVA/Cells/EVA/TPT |
| Cells efficiency: | 17.88% |
| Maximum power(W): | 102.5W |
| Voltage at max power(VMP): | 17.49V |
| Current at max power(IMP): | 5.72A |
| Open circuit voltage(VOC): | 21.67V |
| Short circuit current(ISC): | 6.59A |
| Dimension(MM): | 1200*670*35MM |
| Weight(KGS): | 9.6KGS |
| 10A/12V charge controller | Standard power: | 10A/12V |
| Rated voltage(VDC): | 12V |
| Rated current(A): | 10A |
| Charge recommended max. current(A): | 10A |
| The biggest open-circuit voltage(V): | 50V |
| Charge(V) | Protection: | 14.4±0.2 |
| Floating charge: | 13.2~13.6 |
| Restore: | 13.2±0.2 |
Temperature
compensation: | -13.2mV/ºC |
| Low voltage(V) | Disconnecct: | 10.8±0.2 |
| Restore: | 13.2±0.2 |
| Over voltage(V) | Cut off: | 17.5±0.2 |
| Restore: | 11.5±0.2 |
| Current without load (mA): | <10MA |
| Application ambient temperature: | -20ºC~+70ºC |
| IP Protect: | IP65 |
Protect function:
1. Battery reverse connection protection
2. Solar panel reverse polarity connection protection
3. Over load and short circuit protection
4. Back flow from battery to solar module protection
5. Battery open circuit protection
6. Lighting surge protection(in case necessary)
7. Over-charging and over-discharging protection
8. LED display
9. Thunder strike protection;
10. Time control and light control. |
| 120AH/12V GEL battery | Nominal Voltage(V): | 12V |
| Capacity(10HR,25ºC): | 120AH |
| Dimension | Length(MM) | 406MM |
| Width(MM) | 172MM |
| Height(MM) | 210MM |
| Total Height(MM) | 235MM |
| Capacity 25ºC (77ºF) To 1.70V/Cell | 20 hr rate: | 123AH |
| 10 hr rate: | 118AH |
| 5 hr rate: | 82AH |
| 1 hr rate: | 66AH |
| Weight(KGS): | 32KGS |
| 120 Type battery box | Material: | PP |
| 6M glavanized pole(with 1.2m arm and brackets) | Standard height: | 6M |
| Material: | Q235 |
| Top diameter(MM): | 76MM |
| Bottom diameter(MM): | 145MM |
| Thickness(MM): | 3MM |
| Baseplate(MM): | 280*280*14MM |
| Anchor bolts(MM): | 4*M16*600MM |
| Hot dip galvanized thickness not less than 80um |
Working Principle:
1. Solar LED street light relies on solar energy, which is clean, endless and environment-friendly.
2. The system is mainly composed of solar panel, light source, controller and free-maintenance battery.
3. In daytime, when there is sunshine, the solar panel can convert the solar energy to electric energy and store it in the battery. At night or rainy or cloud condition, the battery shall supply power for normal lighting.
4. The controller can judge the brightness of daylight and automatically switch on the light. The whole process is operating in completely automatic mode, without human action.
Specification:
1.solar panel: High efficiency mono or poly crystalline silicon;
2. light source: High bright LED, white, lifespan more than 50000hours;
3. controller: Intelligent microcomputer controller, 12V/24V auto, time control & light control, with over-charging and discharging protections etc;
4. battery: Gelled valve-regulated sealed battery, maintenance free and deep cycle;
5. light pole: 5-10 meters pole, made of quality steel, plastic coated after hot dipped galvanized, rust proof. Wind resistance ≥ 120km/h;
6. work temperature: Ambient temperature for -30--+60 degree c;
7. lighting time: Usually 8 /10/12 hours lighting per night, 3-4 / 5-6 rainy or cloudy days;
8) voltage: Advisable DC24V for LED above 40W.
