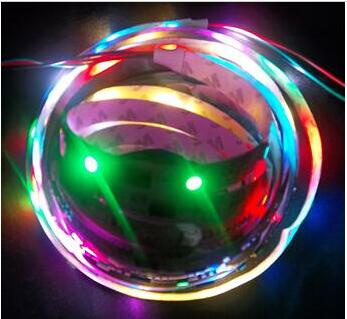

RGB 12V Digital Magic Dream Color Led Strip Light
Specification:
Voltage: DC12V
IC type: 6803IC
IC quantity: 30pcs/meter
LED type: SMD5050 RGB
LED quantity: 30pcs/meter
Pixel: 30pcs/meter
Max power: 10W/meter
Grey scale: 256
Size: 5000x12x2.5mm
IP Grade:IP20: Non waterproof, 3M backside
IP65: Glue drop on the front side, 3M tape backside
IP67: Silicone tube protection
IP68: PVC tube+glue
Features:
High brightness SMD5050 LED
Cuttable every LED along the mark
Each LED individually controlled
Can show customized effects
Support online control
IC built-in LED
No ultraviolet and infrared radiation
Energy saving
Long lifetime for 50,000hrs
CE and RoHS approved
Items for different waterproof
Connection Diagram:
DC+ and GND connect to power supplier;
DAT and GND connect to controller.
Application:
1. The polygonal walls of hotel, nightclub, KTV and other places for decorating heighten the atmosphere.
2. Building, advertising wall signs, festivals and other decorative areas to beauty and light the city.
3. Home decorative lighting (stairs, door frames, bar, wine cabinet, wardrobe, TV cabinet, DIY home decoration, etc..
4. Car (body, vehicle ...).
5. To decorate and light the building castles iconic buildings, bridges, parks and other contour outline, etc..
6. The lighting signal (such as various light indication logo).
7. Edge-Lighting of transparent or diffused materials.
8. Support underwater lighting project.
9. Canopy and bridge edge arched, amusement park, theater, aircraft cabin lighting.
Notice:
1. Please use DC5V only;
2. There are direction arrows on the PCB, arrow direction for connecting next reel strip;
3. GND not only for power wire, also as signal wire, need connect to both power and controller;
4.The Max distance between strips is 5m-10m, need use amplifier when more than 10m;
5. Every 5m strip need re-connect to power supplier, avoiding voltage drop;
6. Keep the surface of installation place clear and smooth, avoiding the strip fall off. DO NOT press the LED;
7. DO NOT attempt to make sharp bend with the strip;
8. DO NOT install where water or high humidity may be present without further protection;
9. Away from strong acid or strong alkali.
