640 *640mm die-cast P8mm outdoor SMD Rental LED Display
P8 SMD3535 outdoor LED video screen, Slim design to display high quality video, images and texts. This one can be used both outdoor and indoor;
ENBON Optoelectronics limited invents in developing die casting aluminum cabinet outdoor Rental LED display screen, to enter high-end market.
ENBON die casting aluminum cabinet outdoor LED display has the following advantages:
1. The new structure design enables diversified installation to meet the hanging-up and stacking requirements, can be applied to achieve a variety of different occasions to meet various application requirements.
2. User-friendly design, more convenient installation, more efficient and secure; High strength, high toughness, and deformation; More reliable cabinet patchwork and cable connection,
3. Cabinets adopt rapid assembling sets, Which can be beautiful but also a real rapid disassembling.
4. Good thermal design. Taking structural heat emitting to keep the cabinet a excellent heat dissipation even no fan installation.
5. The entire cabinet with die casting aluminum alloy material is more lightweight and practical.
6. Compact base design, so that the whole screen space can be smaller a lot.
7. Higher IP rating; New system, High refresh rate, High brightness, True color output; Breathtaking gray level
8. Unique isolation design of the side lock, can withstand the storm

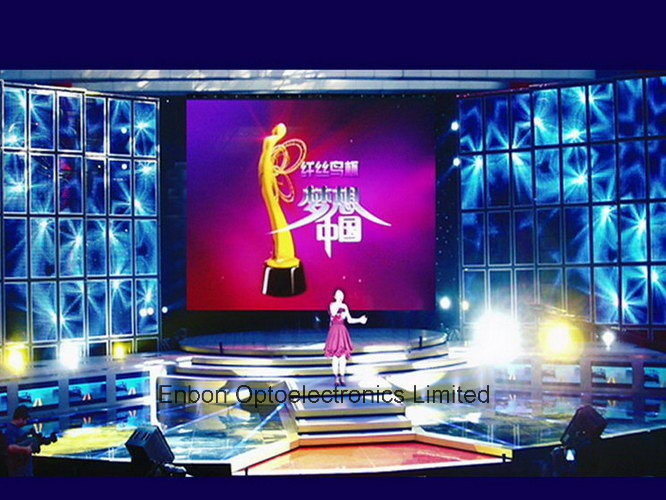

Specially for AV rental companies, great choice for concert tours, product launch events, cooperation events etc.
Model | P8 LED Display panel outdoor for rental |
Pixel pitch | 8mm |
Pixel density | 15,625 dots / SQM |
Module size ( W * H ) | 320 * 160 mm |
Module pixels ( W * H ) | 40 dots * 20 dots |
Pixel configuration | 1 Red 1 Green 1 Blue |
Drive mode | constant current driving 1 / 5 scan |
LED lamp type | SMD3535 |
Cabinet size ( W * H ) | 640 * 640 mm |
Net weight | 13 Kg / cabinet |
Cabinet resolution | 80 * 80 dots |
Color scale | 65,536 degree |
View angle ( H / V ) | 140 / 120 degree |
Brightness ( White balance ) | About 6000 nits |
Power consumption | Max : 250 Watt / cabinet , Average : 120 Watt / cabinet |
Inputting voltage | 90-264 VAC , 47--63Hz |
Operating temperature | - 30 °C---- + 60 °C |
Operating humidity | 10% - 95% RH |
Life time | ≥ 100,000hours |
MTBF | 5,000 hours |
Whole Display Flatness | ≤ 0.5mm Juncture |
Frame frequency | 25-60 Hz / s |
Refresh rate | ≥ 2000Hz / s |
Control distance | 100m ( without repeater ) , single mode fiber : 20km , multi mode fiber : 500m |
LED control system | LINSN , Dbstar , Nova-star , ZDEC , Colorlight are selectable |
Operating system | Windows Xp / Windows 7 / windows 8 / 8.1 / windows 10 |
Protection grade | IP65 |
Maintenance way | Rear Access |
Accepting signal with video processor | HDMI , PAL , NTSC , HDMI , BNC , TV , SDI , VGA , Media player etc . |
ENBON optoelectronics Limited is a High-tech enterprise specialized in R&D, manufacturing and sales of outdoor & indoor LED display. It was established in Jan 15, 2010 covering an area of 1 building with around 150 employees. By bringing in and gathering many experts from this industry, we can keep pace with the development of new technology and are able to provide creative products to meet different requests of our clients'. Right now, Enbon wins good reputation for its various ultra-thin and super-light rental outdoor and indoor LED screens, LED strip/mesh curtains, LED dance floor etc.
All our products have passed CE, FCC and RoHS certificates. 70% of our products are for export. We are an LED company you can count on for good quality and competitive pricing. Besides, you can also expect excellent pre-sale, selling and after-sale services here, which contains professional consultation, free training, free drawings, installation and 2 years warranty. We will inspect our products installed in domestic market periodically.
Enbon is equiped with advanced machines such as Automated Pick & Place machine, High Speed SMT, Wave Peak Soldering machine, Reflow Soldering Machine, High & low Temperature Aging room, Vibration tester, Waterproof tester, Anti-static & dust-free workshop etc. Modern automatic equipment together with our innovative engineers, dedicated workers and experienced sales and services team, we're the right supplier you can trust for good solutions for all your LED display projects.
Contact us for an offer today! Our team will respond in 1 working day. We look forward to be your good partner and grow together!
