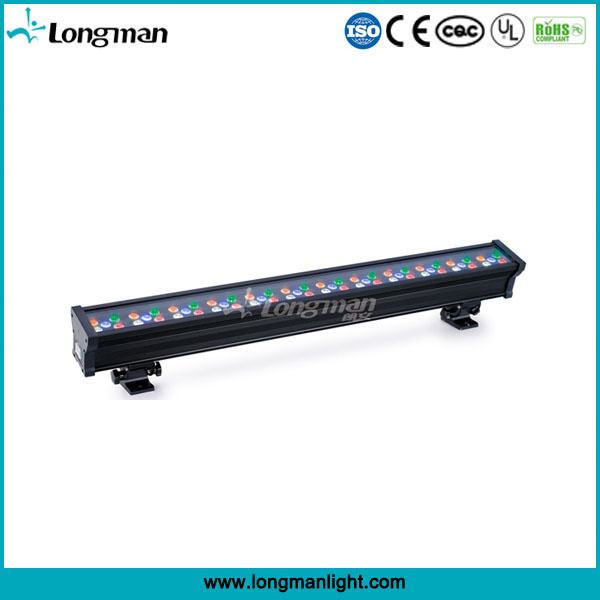

60pcs 3w Professional Outdoor LED Wall Wahser(Vpower 603B)
Features
3700Lumens output, hight effieciency lihght output 90%Lumens within10% intensuty field angle.
RGBAW color mixing, better color mixing, SDC<0.005,could acheive halogen color.
Adopt 32 Bit MCU,Dim 4 square law dimming for0-100%, no visible shock at low DMX value.
LED Display and 4 buttons setting showing infomation and signal conditon turn off when no operation.
Independant circuit driving, each 700mA, even ampere distribute.
NTC temperature control system inside ,MCU reduce the power output when LED working temperature is too high.
Field angle standard30", could choose other angle, and also frosted piece and 60*1 third optical piece.
6063 Aluminium body,fast heatsink, make sure more than 15000Hours Longevity for SMPS and main board.
With waterproof air valve to balance pressure ,get rid of mosuisture on glass innerface.
Specification
1.Voltage input: AC 90-240V 47-63Hz,PF>0.9
2.Volatage Output:24V,SMPS longevity 15000Hours
3.Rated Power:150W(@220V 50Hz)
4.Luminaire Efficiency: >0.9,Light Effiacy >25lm/W.
5.LED Lumens:60pcs*3W RGBAW LED each 12PCS,700mA driving total 3700 Lumens output
6.LED CCT: R=625nm,G=525nm,B=460nm,A=590nm,W=6500K,offer multi-Color and many white color,SDC<0.005.
7.Field Angle(10%): standard 30 °(44400Cd on axis),8°,15°,45°,60°,60*15°Etc optional.
8.Control signal:Meet E1.11 - 2004 USITT DMX512-A,32 bit Dim4 square law dimming, smooth in low DMX Value, no vision shock,PWM>600Hz,Flicker free.
9.Control mode: DMX1990/DMX512A/stand alone/master and slave
10.Chanel option: 8/10/23 CH all inside menu.
11.Housing material: Extrusion 6063,anodized Matte balck, customized other color, signle side barndoor.
12.Safty: Class II, 3C 2.5mm2 VDE cable, Signal shield cable,Flame Rating V-1, Protect Rated IP65.
13.Operate temperature:-20~+45ºC,Light board peak temperature 80ºC with NTC protection.
14.Cerficated:Product pass CE, Rohs, SMPS pass CQC or UL60950, UL8750.
15.Weight: 6KG,with double brackets.
16.Size: 1002*110*170MM
Led wall washer from China professional led wall washer manufacturer.
If you have specific paraments and requirements for our led wall washer, customization is available.
