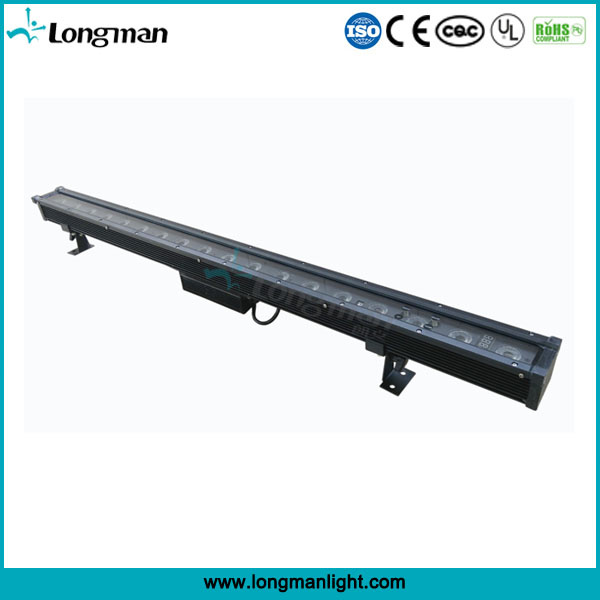

high power CE 72W RGBW dmx outdoor led lights wall washer
Features:
1. With IR remote controller for easy use
2. Recommend matchable SMPS,could also use Other DC input especially near fountain area Etc.
3. RGBW Color mixing to achieve even color and tunable white.
4. Well accommodate to stage use, with strobe,fade,color scroll,edit color and programming
5. 3228Lumens Output, output 90% Lumens within 10% Intensity.
6. Glass surface to accomodate display board,less water leakage risk.
7. Touch LED display,no easy broken buttons, 2 minutes no operation no display
8. LED Display board to shows DMX condiction, assure an easier cable testing.
9. Innner Glass surface is processed as condensation-free, also with waterproof air valve to balance pressure.
10. Use SMT and low temperature reflow soldering tech to make sure heat conduct and heat sink.
Specifications:
Voltage input | Standard DC24V,comprehensive 21.6-25.2V |
Iutput Power | SMPS or Battery, Flash Rate Endurance>12Hz Full/void load |
Rated power | 80W(Typ.66.2W@24V) |
Luminaire Efficiency | 18pcs4W FULL RGBW 350mA Driving,Full on 3228Lumens,Effiacy >43.9lm/W |
Color Eveness | Performance Class, Standard deviation of Chromaticity SDC<0.005,Ra>90,R9>50 |
LED Color | Red625nm,Green525nm,Blue460nm,White6000K |
Field Angle(10%) | Standard 30°,max intensity 26470Cd Full on,42°,56°Available |
Control signal | Meet E1.11 - 2004 USITT DMX512-A/IR/could set and programm Color and beam angle on display board |
Control Habit | Variable Channel options,32 bit dimming, smooth in low DMX Value dimming, no vision shock |
Dimming Curve | Dim0-4 Curve optional,PWM>1500Hz,video flicker free |
Display | Touch operation,LED display show DMX situation and aotu turn off when no operation |
Housing material | AL6063 For Lampbody,ADC12 for Sidecover,standard Matte balck, could customized matt silver |
Cooling Method | Natural Heasink,Thermal protection:NTC overheat protection |
Soukect | IP67 Power connector 2C*1.5mm2 Male cable(VDE,CCC Etc), Signal with IP65 3XLR daisy chain |
Soldering technology | 180ºCReflow Soldering |
Accessories | DC Female adpator Cable as stadard,T type DC branch,frosted piece,Hook,Safty Cable available |
Operate temperature | -20~+55ºC,Light board peak temperature 80ºC |
Safty | Class III for electricity, Flame Rating V-1, Protect Rated IP65 |
Cerficated | Product pass CE, Rohs, SMPS pass CQC or UL60950, UL8750 |
Weight | 4.1 KG,with 2mm thick double bracket |
Size | L*W*H=1001*69*119mm(Vertical shine up) |
FAQ:
1. Are you a factory or trading company? Yes ,We are a factory. |
2. Where is your factory located? How can I visit there? Our factory address is : No.2 XiaheRoad, Baiyun Industrial Area , Jianggao Town, Baiyu District, Guangzhou, China ,about 30 minutes away from Bai yun Airport by metro. All our clients, no matter where you are from, all are most welcome to visit us ! |
3. Which products we have? We produce different kinds of LED Light . Our product: A. LED Moving Spot and Wash Light; B. Studio Light; C. Indoor Parcan Light; D. Professional Wash Light; E. Audience and DJ Light; F. Outdoor Parcan Light; G. Outdoor Washer Light; H. Black Light; J. Control System; K. Dramatic architectural and landscape lighting. |
4. How to get the latest price? If you want the latest price, Please Email or call us with the items names or NO. What are you interested in , together with your details(name,details address,telephone,etc),we will send to you as soon as possible. |
5. Does the products have any certificate? Yes,our products have CE,ROHS ,UL, CQC and SGS certificate . |
6. What's the Payment method? All methods can be discussed. |
7. How to Place an order? Please kindly send us you order by email ,we will confirm the PI with you .we wish to know the below:Delivery information,company name, address details, phone/fax number, destination,transportation way ;Product information:item number,size,quantity,logo,etc. |
