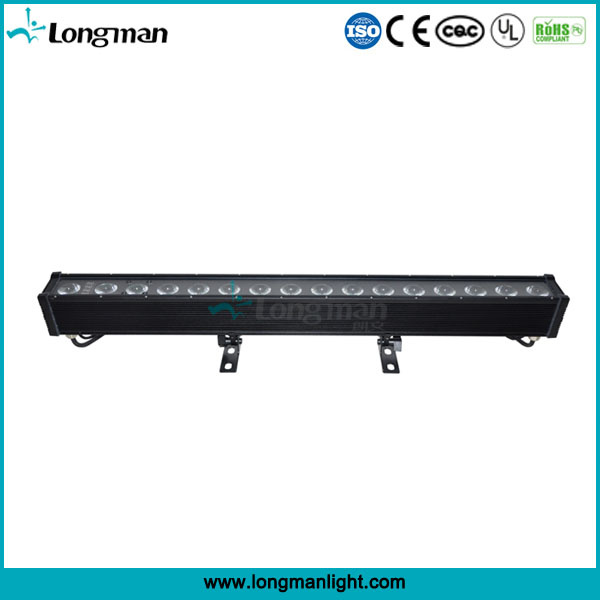

high power CE 16pcs 15W RGBW led dmx outdoor wall washing light
Features:
1.RGBW Color mixing to achieve even color and tunable white.
2. 50mm Diameter LED,Expert optical solution.
3. 7670Lumens Output, output 90% Lumens within 10% Intensity.
4. Glass surface to accomodate display board,less water leakage risk.
5. Touch LED display,no easy broken buttons, 2 minutes no operation no display
6. LED Display board to shows DMX condiction, assure an easier cable testing.
7. Innner Glass surface is processed as condensation-free, also with waterproof air valve to balance pressure.
8. Use SMT and low temperature reflow soldering tech to make sure heat conduct and heat sink.
Specification:
Voltage input | AC 90-240V 47-63Hz,PF>0.9 |
Voltage output | DC24V,SMPS longevity 15000Hours |
Rated power | 200W(Typ.175W@220V 50Hz),Flash Rate Endurance>12Hz Full/void load |
Luminaire Efficiency | 16pcs 15W 1000mA Driving,Full on 7670Lumens,Effiacy >41.5lm/W |
Color Eveness | Performance Class, Standard deviation of Chromaticity SDC<0.005,Ra>90,R9>50 |
LED Color | Red625nm,Green525nm,Blue460nm,White6000K |
Field Angle(10%) | 65X15°,max intensity 32243Cd Full on |
Control Habit | Variable Channel options,32 bit dimming, smooth in low DMX Value dimming, no vision shock |
Control mode | Meet E1.11 - 2004 USITT DMX512-A/Master could set Color and beam angle on display board |
Dimming Curve | Dim0-4 Curve optional,PWM>1500Hz,video flicker free |
Display | Touch operation,LED display show DMX situation and aotu turn off when no operation |
Housing material | AL6063 For Lampbody,ADC12 for Sidecover,standard Matte balck, could customized matt silver |
Cooling Method | Neutral Heatsink,Thermal protection:NTC overheat protection |
Soukect | IP67 Power connector 3C*2.5mm2 cable(VDE,CCC Etc), Signal with IP65 3XLR, Both daisy chain |
Soldering technology | 180ºCReflow Soldering,makesure 15000 hours Longevity for SMPS and mainboard |
Accessories | Power adpator Cable as stadard,Frosted piece,Hook,Safty Cable available |
Safty | Class II, Flame Rating V-1, Protect Rated IP65 |
Operate temperature | -20~+55ºC,Light board peak temperature 80ºC,intelligent control |
Cerficated | Product pass CE, Rohs, SMPS pass CQC or UL60950, UL8750 |
Weight | 6.5KG,with 180Deg. Rotatable supporting bracket |
Size | L*W*H=999*95*184mm(Vertical shine up) |
wall washing light from China professional wall washing light manufacturer.
If you have specific parameters and requirements for wall washing light, customization is available.
FAQ:
1. Are you a factory or trading company? Yes , We are a factory. |
2. Where is your factory located? How can I visit there?
Our factory address is : No.2 XiaheRoad, Baiyun Industrial Area , Jianggao Town, Baiyu District, Guangzhou, China ,about 30 minutes away from Bai yun Airport by metro. All our clients, no matter where you are from, all are most welcome to visit us ! |
3. Which products we have? We produce different kinds of LED Light . Our product: A. LED Moving Spot and Wash; B. Studio Light; C. Indoor Parcan; D. Professional Wash; E. Audience and DJ; F. Outdoor Parcan; G. Outdoor Washer; H. Black Light; J. Control System; K. Dramatic architectural and landscape lighting. |
4. How to get the latest price? If you want the latest price, Please Email or call us with the items names or NO. What are you interested in ,together with your details(name,details address,telephone,etc),we will send to you as soon as possible. |
5. Does the products have any certificate? Yes, our products have CE,ROHS ,UL and SGS certificate . |
6. What's the Payment method? All methods can be discussed. |
7. How to Place an order? Please kindly send us you order by email ,we will confirm the PI with you .we wish to know the below:Delivery information,company name, address details,phone/fax number,destination,transportation way ;Product information:item number,size,quantity,logo,etc. |
Guangzhou longman PRO light factory co. Ltd. (hereinafter the "company") is a professional manufacturing enterprise, we're collection of R&D, producing, and marketing. Since the company was founded in 2005 in guangzhou, China, we're focused on the independent research development and production of LED lighting product and equipment.
Three brands under the company: Longman brand oriented stage lighting; Ledmewish oriented landscape architectural lighting; And reichy oriented truss and the other equipment for stage lighting.
The main product range of lighting in this company was included: LED stage and entertainment lighting; LED architectural and landscape lighting; Stage truss, and some customer preconcert development for the commercial lighting product.
All the kinds of products with superior quality, novel style, precision technology and cost performance are widely accepted by the industry. At present, the company products have been exported to Europe, America, Australia, Middle East, and Africa and so on, which was more than 120 countries and regions.
Longman lighting dedicated itself to stage light industry with years of experience. We introduced advanced technic and talents in this industry and created featured design and manufacturing concept as well as set up scientific and effective management system and strict quality control system based on our strong technical accumulation and complete management system and good after-sales service. We have obtained multinomial international product certification including CE, RoHS, SGS, PSE, UL, CCC, TUV, Energy Star and so on.
Our company was on behalf of the advanced level in this industry on appearance, optical, electrical, thermal, and command etc., it accumulate the intellectual property, individua areas was made a major breakthrough, now we are further to "professionalization, internationalization, standardization, and branding".
Longman has had authorised distributors in Germany, Britain, Canada, America, France, Brazil, Mexico, Australia, Singapore, South Africa and other countries since established. Our company is based in guangzhou, and has regional offices in Shanghai, xi'an, chengdu in domestic.
We should strive unceasingly with one heart and one mind together based on mutual benefit to make the construction of China more splendent!
